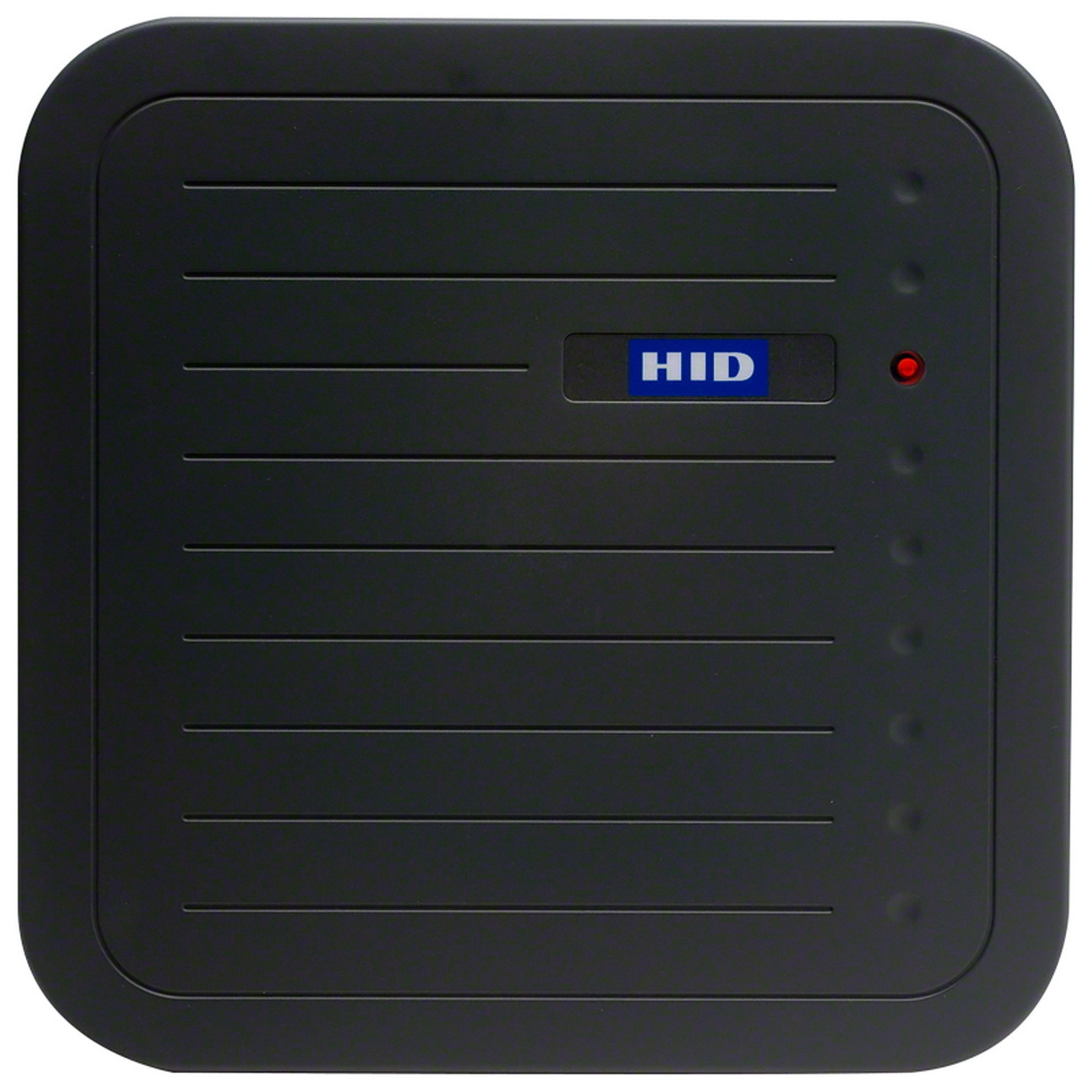

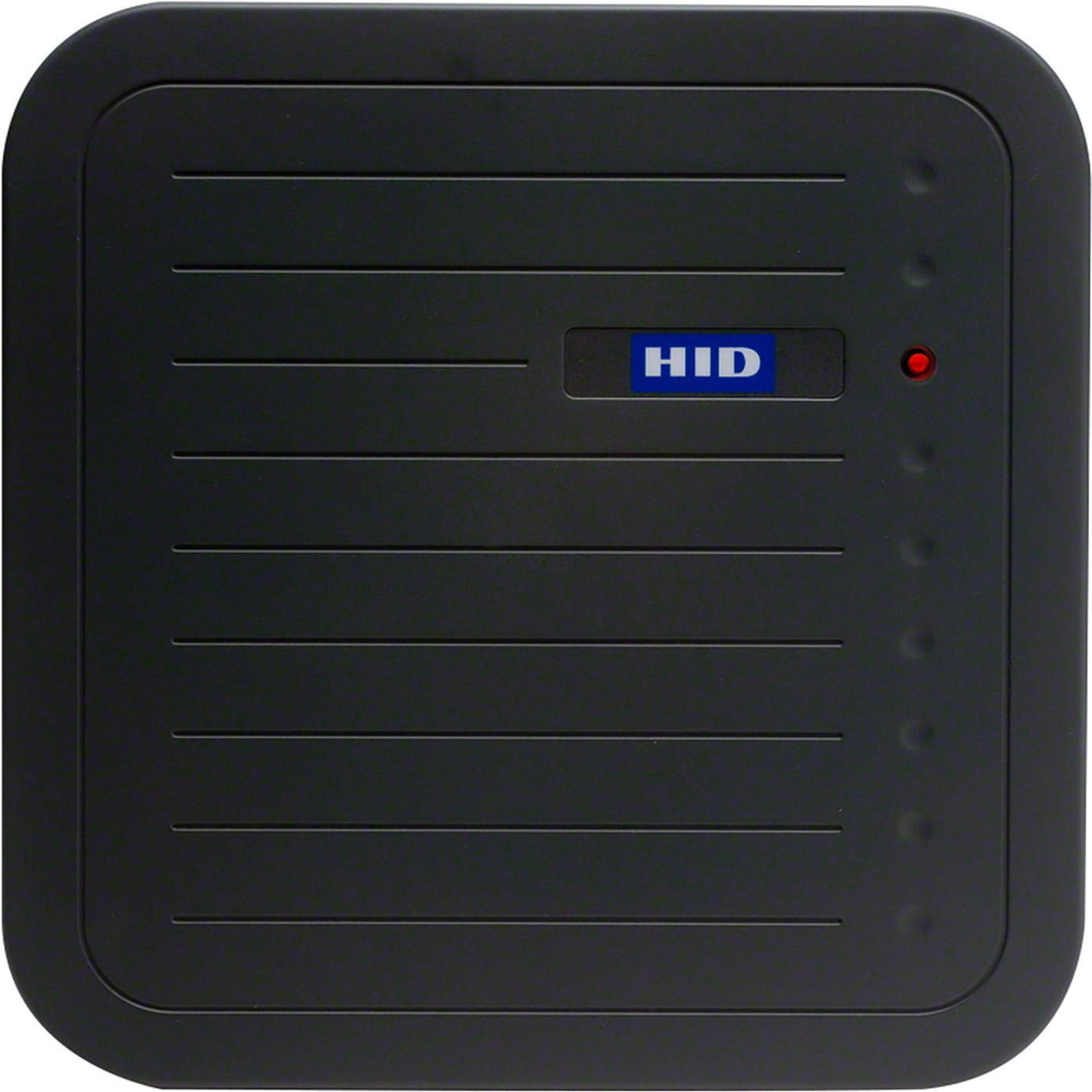

HID MaxiProx Reader - Contactless - Cable - 23.98" Operating Range - Wiegand - Surface Mount - Gray

Highlights

• Security - Includes a tamper switch to provide electronic notification of reader tampering. Recognizes card formats up to 85 bits.
• Audiovisual Indication - When a proximity card is presented to the reader, the red LED flashes green and the beeper sounds. The multicolor LED and beeper can also be controlled individually by the host system.
• Diagnostics - On reader power-up, an internal self-test routine checks and verifies the setup configuration, determines the internal or external control of the LED and beeper, and initializes reader operation. An additional external loop-back test allows for the reader outputs and inputs to be verified without the use of additional test equipment.
• Indoor/outdoor Design - Sealed in a rugged, weatherized polycarbonate enclosure designed to withstand harsh environments as well as provide a high degree of vandal resistance for reliable performance anywhere.
• Easily Interfaced - Interfaces with all existing Wiegand, Clock-andData, RS-232 and RS-422 protocol access control systems. The serial interfaces support baud rates of 1200, 2400, 4800, and 9600 baud
• Options - LED and beeper operation; custom label
