Axis Communications

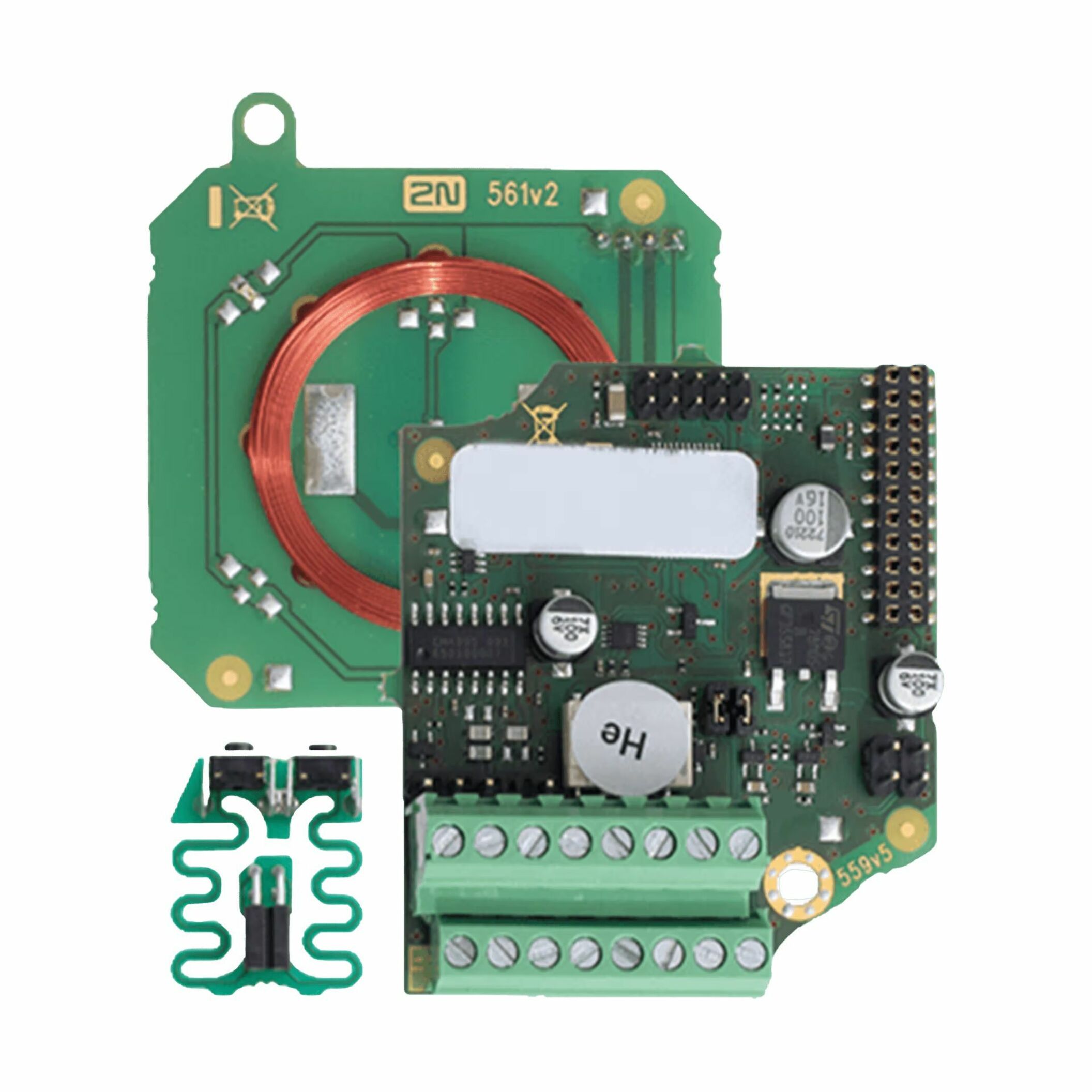

2N IP Force 2.0 - RFID 125kHz, 13.56MHz & Wiegand
Part number 03355-001
2N IP Force 2.0 - RFID 125kHz, 13.56MHz & Wiegand
NDAA Section 889 / TAA-compliant — country of origin confirmed on quote
$304.91$335.00Save 9%
Factory-direct — ships in ~2 weeks
Or request a TAA-compliant quote → Free US delivery 30-day returns NDAA 889 / TAA compliance verified on every order
We confirm stock, country of origin and compliance before any order — no payment up front.
Tech specs
Specifications
| Product Type | RFID/Weigand Access Module |
| Compatibility | 2N IP Force 2.0 intercom: 03364-001 03367-001 Supported cards 125 kHZ: EM4x02, NXP HiTag2 13.56 MHz - ISO14443A: MIFARE® Classic®, MIFARE Plus®, MIFARE Mini, MIFARE Ultralight®, MIFARE DESFire® HID® iClass: HID iClass® CSN, Picopass FeliCa: Standard, Lite 2N PICard: supports MIFARE DESFire EV2 & EV3 cards NFC/HCE: smartphone with the My2N App |
| Device Supported | Intercom System |
| Device Supported | Wiegand Card Reader |
| Device Supported | Smart Card |
| Package Contents | RFID reader Tamper switch Active output Relay Two inputs Wiegand module |
| Limited Warranty | 5 Year Year |
| Additional Information | Wiegand interface: Off/Input/Output (as programmed) Active switch output: 9.8 to 13.8 V DC according to power supply (PoE+: 11,6 V; adapter: power supply voltage minus 0,4 V), up to 400 mA Inputs: 2 inputs: active (requires external voltage) or passive (requires external contact only) Signaling output: Internal red LED under the intercom front panel Power supply: 12 V DC ± 15% / 350 mA for external RFID card reader Working temperature: -30 °C - +55°C Storing temperature:-40 °C - +70°C Working relative humidity: 10 % - 95 % (non-condensing) |
