Axis Communications

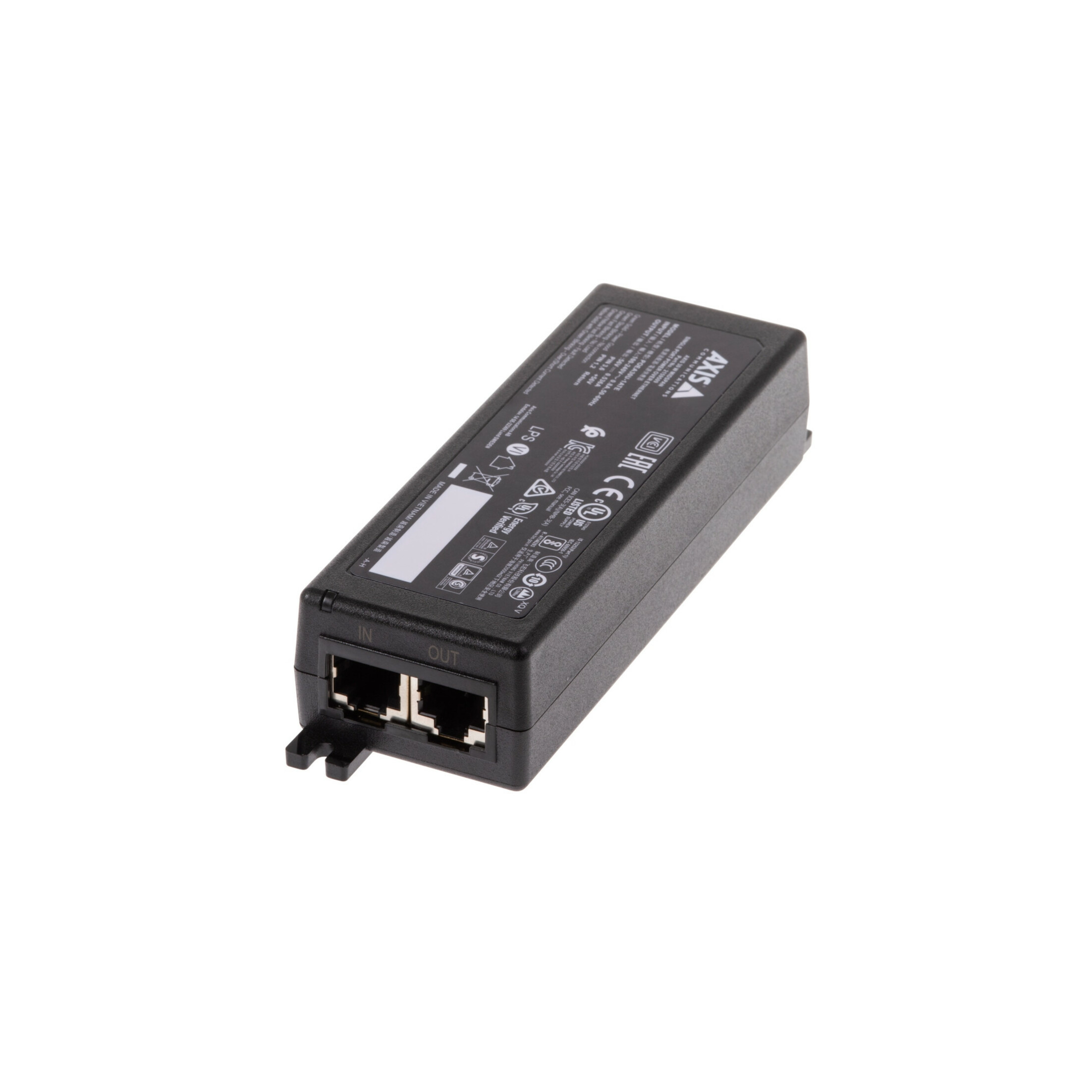

AXIS 30 W Midspan - 120 V AC, 230 V AC Input - 56 V DC Output - 1 x 10/100/1000 Mbps Input Port(s) - 1 x PoE Output Port(s) - 30 W - Black
Part number 02172-012
AXIS 30 W Midspan
NDAA Section 889 / TAA-compliant — country of origin confirmed on quote
We confirm stock, country of origin and compliance before any order — no payment up front.
Tech specs
Specifications
| Product Type | PoE Injector |
| Environmentally Friendly | Yes |
| Maximum Output Power | 30 W W |
| Maximum Output Voltage | 56 V DC |
| Product Color | Black |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Vietnam |
| Height | 1.2" mm |
| Width | 1.8" mm |
| Depth | 5.5" mm |
| Certifications & Standards | IEEE 802.3af IEEE 802.3at Safety: UL 60950 - 1 UL 62368 - 1 CCC EMC: EN 55032Class A EN 6 1 000 - 6- 1 EN 6 1 000- 6- 2, FCC P art 15 Subpart B Class A ICES - 3(A)/NMB - 3(A), KC KN32Class A KC KN35 RCM AS/NZS CISPR 32Class A, VCCI Class A CISPR 24 EAC Environment: IEC 60068 - 2- 1 IEC 60068 - 2- 2 IEC 60068 - 2- 6 IEC 60068 - 2- 14 IEC 60068 - 2- 27 IEC 60068 - 2- 78 |
| Input Ports | 1 x 10/100/1000 Mbps |
| Output Ports | 1 x PoE |
| Compatibility | AXIS Door Controllers: A1001 A1601 AXIS Fixed Cameras: M1065-L M1134 M1135 M1135-E M1137 M1137-E M1145-L M2025-LE M2026-LE Mk II P1214 P1214-E P1224-E P1244 P1245 P1254 P1264 P1265 P1275 P1375 P1375-E P1377 P1377-LE P1378 P1378-LE P1447-LE P1448-LE P1455-LE P1455-LE-3 Q1615 Mk III Q1615-LE Mk III Q1645 Q1645-LE Q1647 Q1647-LE Q1659 Q1700-LE Q1785-LE Q1786-LE Q1798-LE AXIS Dome Cameras: M3015 M3016 M3057-PLVE Mk II M3058-PLVE M3064-V M3065-V M3066-V M3067-P M3068-P M3075-V M3077-PLVE M3115-LVE M3116-LVE M3205-LVE M3206-LVE P3245-LV P3245-LVE P3245-LVE-3 P3245-V P3245-VE P3247-LV P3247-LVE P3248-LV P3248-LVE P3255-LVE P3375-LV P3375-LVE P3375-V P3375-VE P3715-PLVE P3719-PLE P3727-PLE P3807-PVE P3904-R Mk II P3905-R Mk II P3925-LRE P3925-R P3935-LR P9106-V Q3515-LV Q3515-LVE Q3517-LV Q3517-LVE Q3517-SLVE Q3518-LVE Q3527-LVE Q3615-VE Q3617-VE Q3819-PVE Q9216-SLV AXIS Housings: T92E20 Outdoor Housing T93F20 Outdoor Housing AXIS I/O Relay Modules: A9161 A9188 A9188-VE AXIS Illuminators: T90C20 Fixed Dome IR-LED T90D20 PoE IR-LED T90D25 PoE W-LED AXIS Intercoms: A8207-VE Mk II I8016-LVE AXIS Modular Cameras: F34 Main Unit F34 Surveillance system F41 Main Unit F44 Dual Audio Input FA51 Main Unit FA51-B Main Unit AXIS Mounts: T91G61 Wall Mount T91H61 Wall Mount AXIS PTZ Cameras: M5054 M5055 M5065 M5525-E P5414-E P5415-E P5654-E P5655-E Q6074 Q6074-E Q6075 Q6075-E Q6078-E Q6128-E Q6154-E Q6155-E AXIS Security Radars: D2110-VE Security Radar AXIS Speakers: C1310-E C1410 AXIS Thermal Cameras: P1280-E P1290-E Q1941-E Q1941-E PT Mount Q1942-E Q1942-E PT Mount Q1951-E Q1952-E Q2901-E Q2901-E PT Mount AXIS Video Encoders: M7011 M7104 P7304 Q7411 Q7424-R Mk II |
| Form Factor | Wall/Shelf/DIN Rail Mountable |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Package Contents | 30 W Midspan Installation Guide Cable Mains IEC-C13 |
| Limited Warranty | 3 Year Year |
| Weight (Approximate) | 5.11 oz g |
