Axis Communications

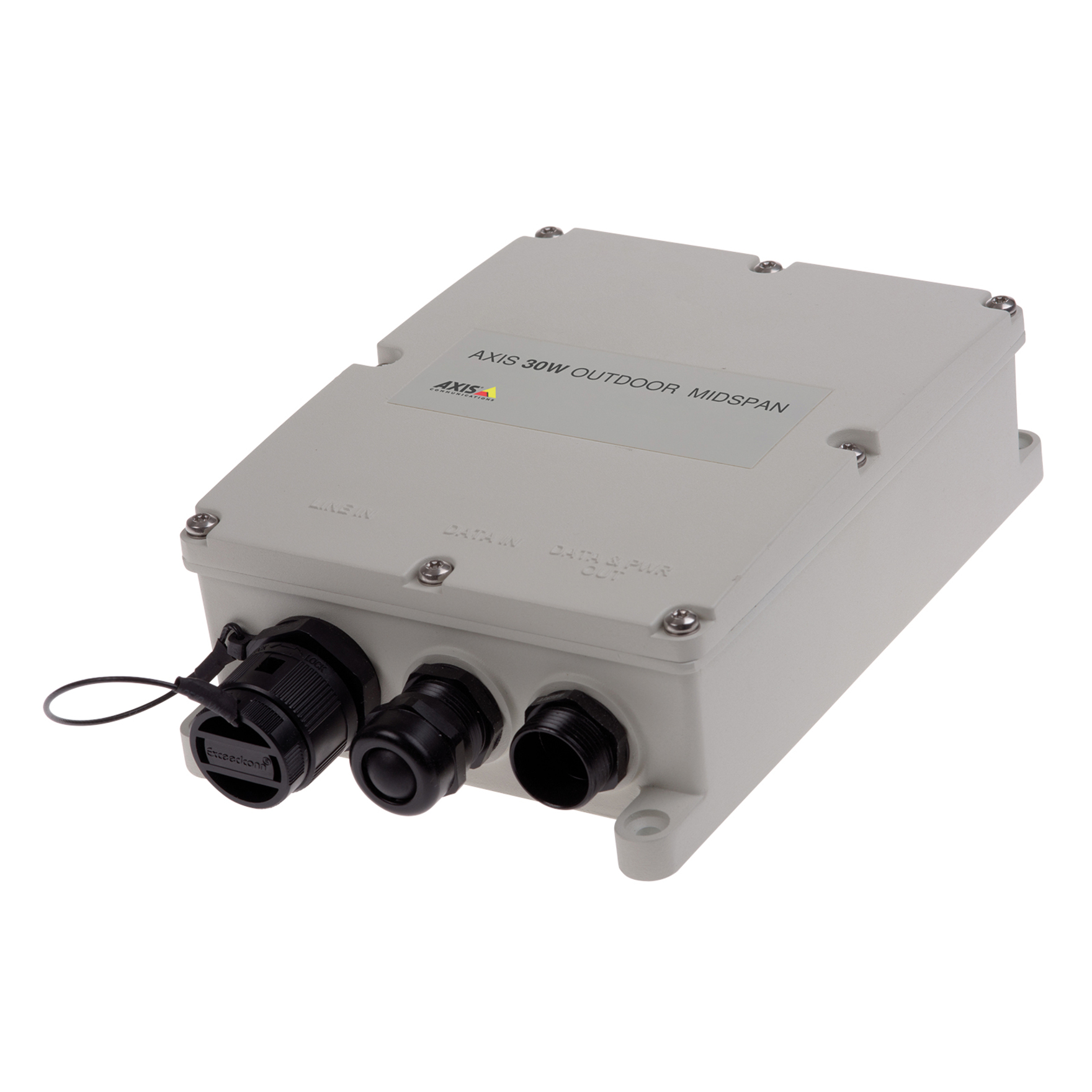

AXIS 30 W Outdoor Midspan - 120 V AC, 230 V AC Input - 54 V DC Output - 1 x 10/100/1000Base-T Input Port(s) - 1 x PoE Output Port(s) - 30 W
Part number 01944-001
AXIS 30 W Outdoor Midspan
NDAA Section 889 / TAA-compliant — country of origin confirmed on quote
$270.88$289.00Save 6%
Factory-direct — ships in ~2 weeks
Or request a TAA-compliant quote → Free US delivery 30-day returns NDAA 889 / TAA compliance verified on every order
We confirm stock, country of origin and compliance before any order — no payment up front.
Tech specs
Specifications
| Product Type | PoE Injector |
| Maximum Output Power | 30 W W |
| Maximum Output Voltage | 54 V DC |
| Height | 2.4" mm |
| Width | 6.7" mm |
| Depth | 5.5" mm |
| Certifications & Standards | IEEE 802.3af IEEE 802.3at IEEE 802.3af Type 1 Class 3 IEEE 802.3at Type 2 Class 4 EIA 568A EIA 568B Safety: IEC/EN/UL 60950-1 EN 62368-1 IEC/EN/UL 60950-22 GS Mark per EN 60950-1 CCC EMC: EN 55024 EN 55035 EN 55032 Class B EN 50121-4, IEC 62236-4 EN 61000 3-2 EN 61000 3-3 EN 61000-6-1 EN 61000-6-2 FCC Part 15 Class B VCCI Class B RCM AS/NZS CISPR32 Class B ICES-003 Class B Meet GR-1089-CORE Issue 4 ITU-T K.21 enhanced surge level protection (6 kV on data and AC lines) Environment: IEC 60068-2-1 IEC 60068-2-2 IEC 60068-2-6 IEC 60068-2-14, IEC 60068-2-27 IEC 60068-2-64 IEC/EN 60529 IP66 IP67 EN 61373 IEC TR 60721-4-5 Class 5M3 NEMA 250 Type 4X IP68 NEMA 4X-rated |
| Input Ports | 1 x 10/100/1000Base-T |
| Output Ports | 1 x PoE |
| Compatibility | AXIS Door Controllers: A1001 A1601 AXIS Fixed Cameras: M1065-L M1134 M1135 M1135-E M1137 M1137-E M1145-L M2025-LE M2026-LE Mk II P1214 P1214-E P1224-E P1244 P1245 P1254 P1264 P1265 P1275 P1375 P1375-E P1377 P1377-LE P1378 P1378-LE P1435-LE P1445-LE-3 P1447-LE P1448-LE P1455-LE Q1615 Mk III Q1615-LE Mk III Q1645 Q1645-LE Q1647 Q1647-LE AXIS Fixed Dome Cameras: M3015 M3016 M3037-PVE M3057-PLVE M3057-PLVE Mk II M3058-PLVE M3064-V M3065-V M3066-V M3067-P M3068-P M3075-V M3077-PLVE M3115-LVE M3116-LVE M3205-LVE M3206-LVE M4206-LV M4206-V P3227-LV P3227-LVE P3228-LV P3228-LVE P3245-LV P3245-LVE P3245-V P3245-VE P3247-LV P3247-LVE P3248-LV P3248-LVE P3255-LVE P3367-V P3367-VE P3374-LV P3374-V P3375-LV P3375-LVE P3375-V P3375-VE P3715-PLVE P3717-PLE P3719-PLE P3807-PVE P9106-V Q3515-LV Q3515-LVE Q3517-LV Q3517-LVE Q3517-SLVE Q3518-LVE Q3527-LVE Q3615-VE Q3617-VE Q3708-PVE Q3709-PVE Q9216-SLV AXIS Housings: T92E20 Outdoor Housing T92G20 Outdoor Housing T93F20 Outdoor Housing AXIS I/O Relay Modules: A9161 A9188-VE AXIS Illuminators: T90C20 Fixed Dome IR-LED T90D20 PoE IR-LED T90D25 PoE W-LED AXIS Intercoms: I8016-LVE AXIS Modular Cameras: F34 Main Unit F34 Surveillance system F41 Main Unit F44 Dual Audio Input AXIS PTZ Cameras: M5054 M5055 M5065 M5525-E P5414-E P5415-E P5654-E P5655-E Q6074 Q6074-E Q6075 Q6075-E Q6128-E Q6154-E Q6155-E AXIS People Counters: P8815-2 AXIS PoE Extenders: Long Range PoE Extender Kit AXIS Power Over Ethernet: PoE Splitter 5 V AXIS Security Radars: D2110-VE Security Radar AXIS Speakers: C1310-E C1410 AXIS Thermal Cameras: P1280-E P1290-E Q1941-E Q1941-E PT Mount Q1942-E Q1942-E PT Mount Q2901-E Q2901-E PT Mount AXIS Video Encoders: M7104 P7304 Q7411 Q7424-R Mk II |
| Form Factor | Wall/Pole Mountable |
| Protection Type | Surge Protection |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Package Contents | 30W Outdoor Midspan Installation Guide |
| Limited Warranty | 3 Year Year |
| Weight (Approximate) | 3.09 lb g |
