Axis Communications

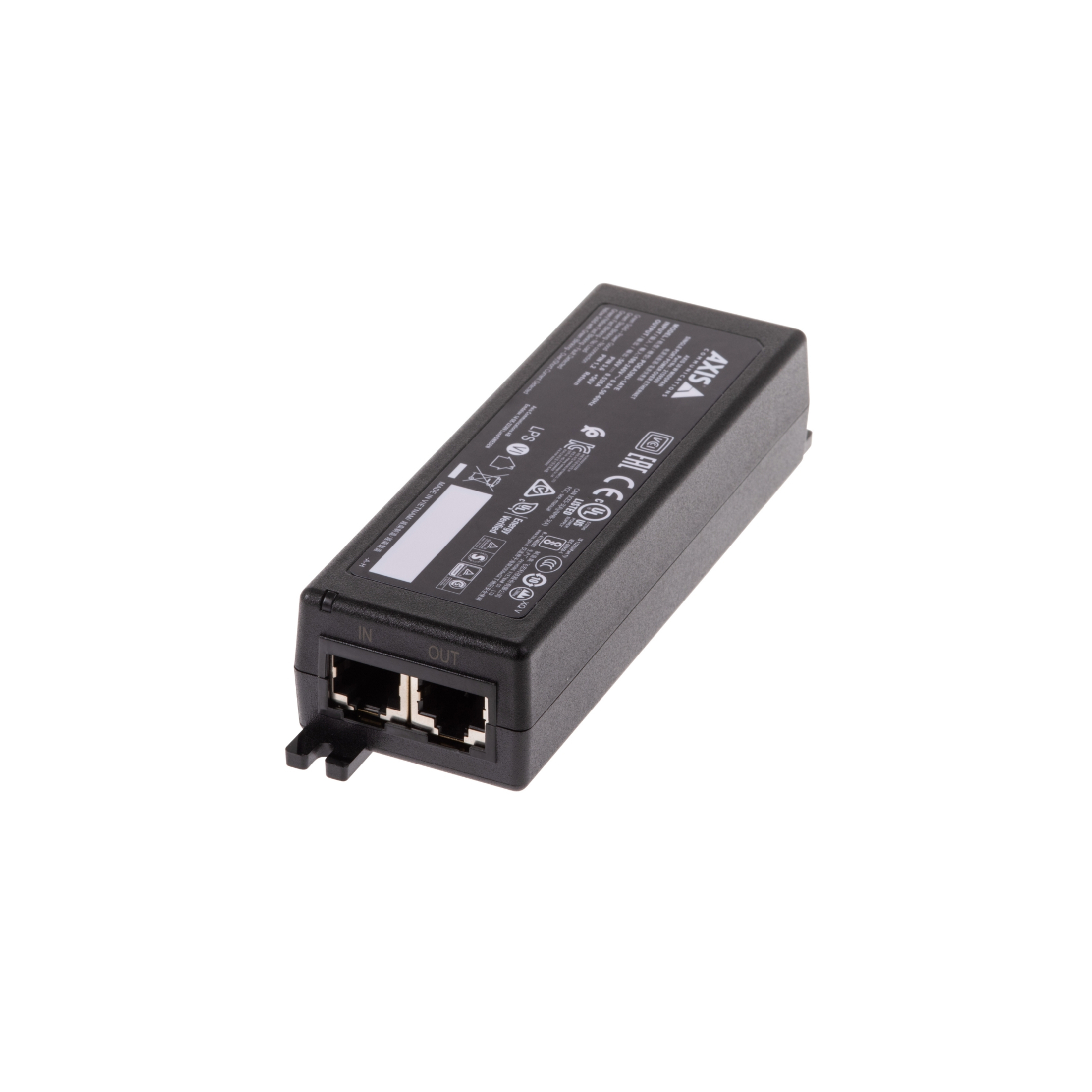

AXIS 30W Midspan - 56 V DC Output - 1 x Ethernet Input Port(s) - 1 x PoE Output Port(s) - 30 W - Black
Part number 02172-002
AXIS 30W Midspan
NDAA Section 889 / TAA-compliant — country of origin confirmed on quote
We confirm stock, country of origin and compliance before any order — no payment up front.
Tech specs
Specifications
| Product Type | PoE Injector |
| Maximum Output Power | 30 W W |
| Maximum Output Voltage | 56 V DC |
| Product Color | Black |
| Color Family | Black |
| Height | 1.2" mm |
| Width | 1.8" mm |
| Depth | 5.5" mm |
| Input Ports | 1 x Ethernet |
| Output Ports | 1 x PoE |
| Compatibility | AXIS Door Controllers: A1001 A1601 AXIS Fixed Cameras: M1065-L M1134 M1135 M1135-E M1137 M1137-E M1145-L M2025-LE M2026-LE Mk II P1214 P1214-E P1224-E P1244 P1245 P1254 P1264 P1265 P1275 P1375 P1375-E P1377 P1377-LE P1378 P1378-LE P1445-LE-3 P1447-LE P1448-LE P1455-LE Q1615 Mk III Q1615-LE Mk III Q1645 Q1645-LE Q1647 Q1647-LE Q1659 Q1700-LE Q1785-LE Q1786-LE Q1798-LE AXIS Fixed Dome Cameras: M3015 M3016 M3037-PVE M3057-PLVE M3058-PLVE M3064-V M3065-V M3066-V M3067-P M3068-P M3075-V M3115-LVE M3116-LVE M3205-LVE M3206-LVE M4206-LV M4206-V P3227-LV P3227-LVE P3228-LV P3228-LVE P3245-LV P3245-LVE P3245-V P3245-VE P3247-LV P3247-LVE P3248-LV P3248-LVE P3255-LVE P3367-V P3367-VE P3374-LV P3374-V P3375-LV P3375-LVE P3375-V P3375-VE P3715-PLVE P3717-PLE P3719-PLE P3807-PVE P3904-R Mk II P3905-R Mk II P3925-R P3935-LR P9106-V Q3515-LV Q3515-LVE Q3517-LV Q3517-LVE Q3517-SLVE Q3518-LVE Q3527-LVE Q3615-VE Q3617-VE Q3708-PVE Q3709-PVE Q9216-SLV AXIS Housings: T92E20 Outdoor Housing T92G20 Outdoor Housing T93F20 Outdoor Housing AXIS I/O Relay Modules: A9161 A9188 A9188-VE. AXIS Illuminators: T90C20 Fixed Dome IR-LED T90D20 PoE IR-LED T90D25 PoE W-LED AXIS Intercoms: A8207-VE Mk II I8016-LVE AXIS Modular Cameras: F34 Main Unit F34 Surveillance system F41 Main Unit F44 Dual Audio Input AXIS Mounts: T91G61 Wall Mount T91H61 Wall Mount AXIS PTZ Cameras: M5054 M5055 M5065 M5525-E P5414-E P5415-E P5654-E P5655-E Q6074 Q6074-E Q6075 Q6075-E Q6128-E Q6154-E Q6155-E AXIS PoE Extenders: Long Range PoE Extender Kit AXIS Power over Ethernet: PoE Splitter 5V AXIS Security Radars: D2110-VE Security Radar AXIS Speakers: C1310-E C1410 AXIS Thermal Cameras: P1280-E P1290-E Q1941-E Q1941-E PT Mount Q1942-E Q1942-E PT Mount Q2901-E Q2901-E PT Mount AXIS Video Encoders: M7104 P7304 Q7411 Q7424-R Mk II |
| Form Factor | Wall/Shelf/DIN Rail Mountable |
| Weight (Approximate) | 5.11 oz g |
