Axis Communications

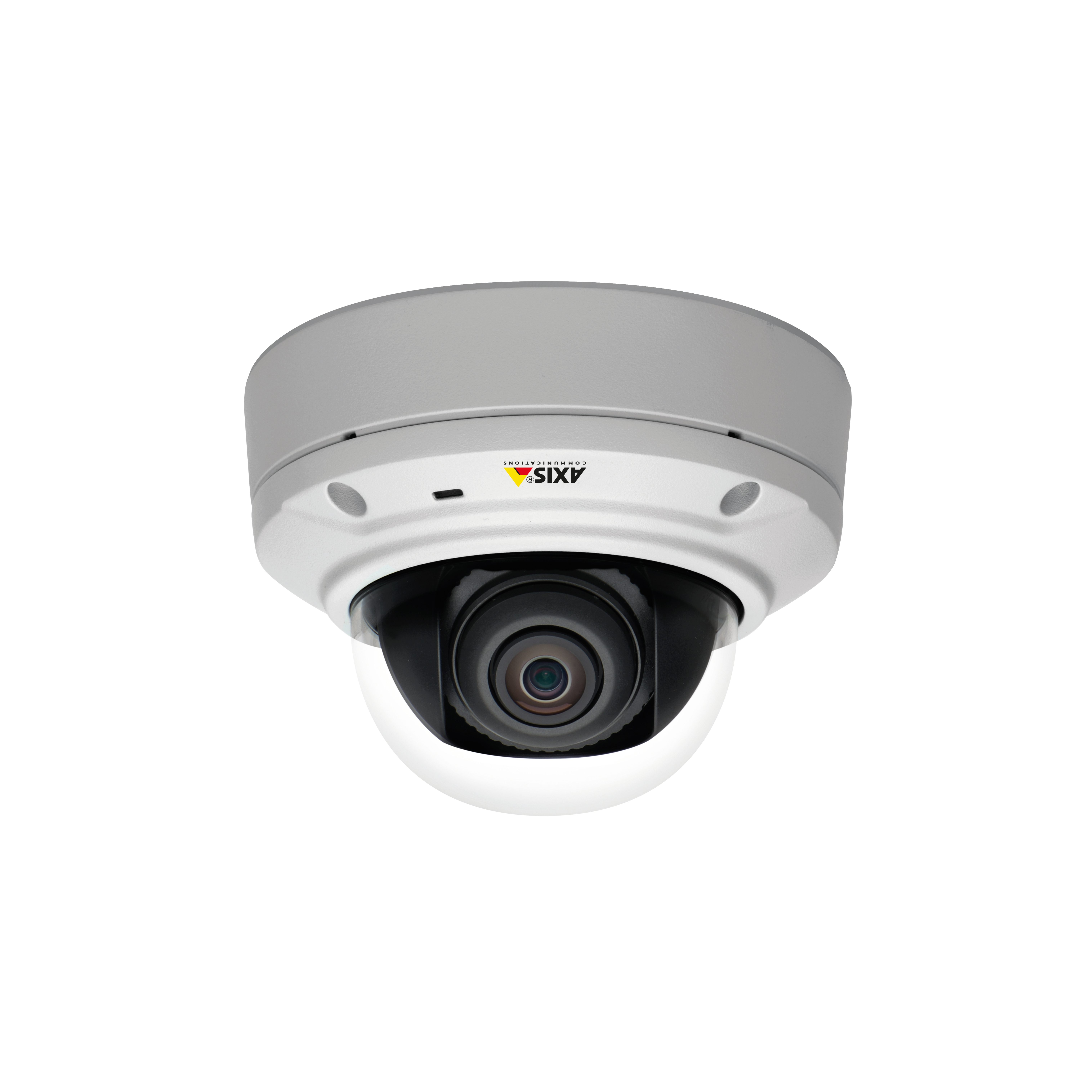

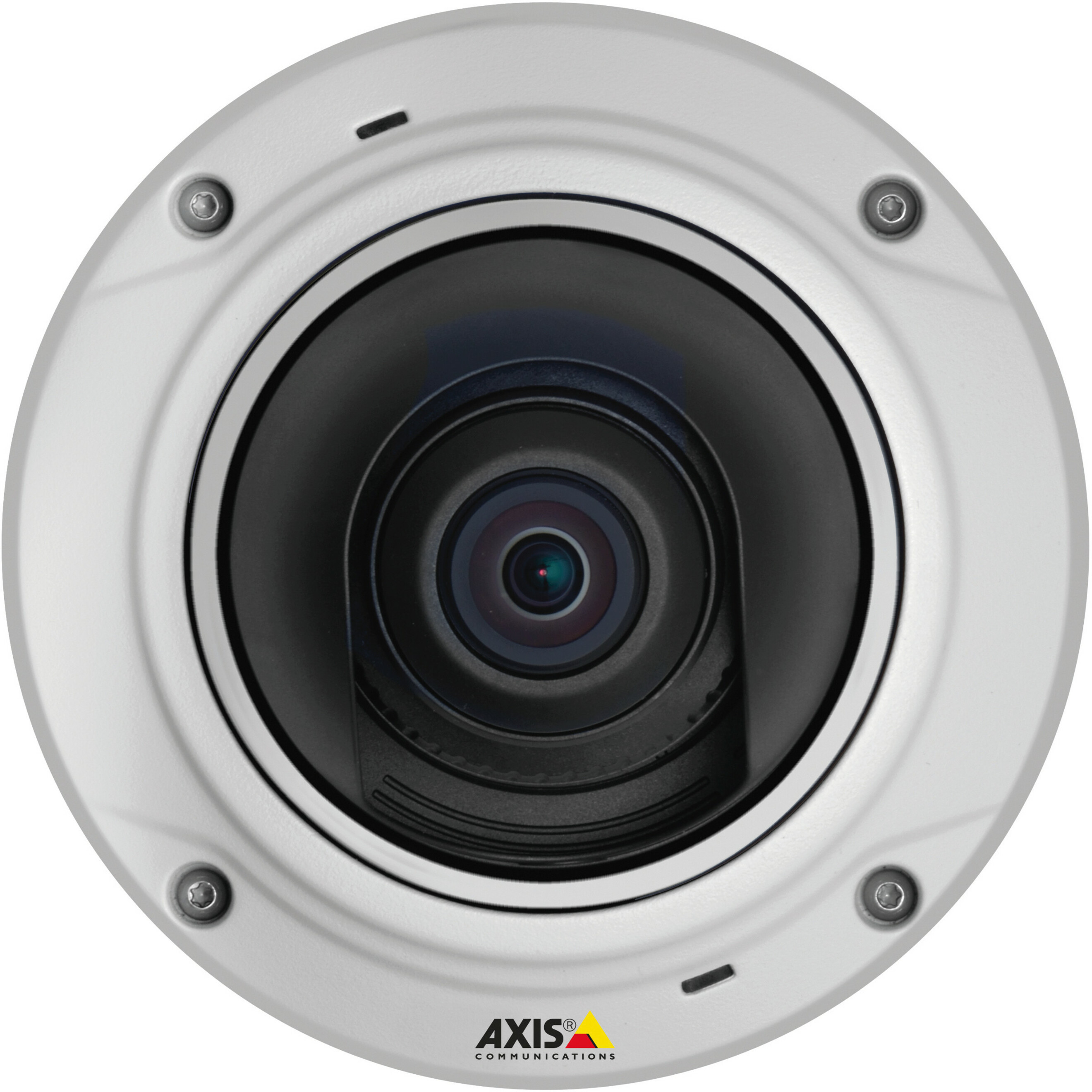

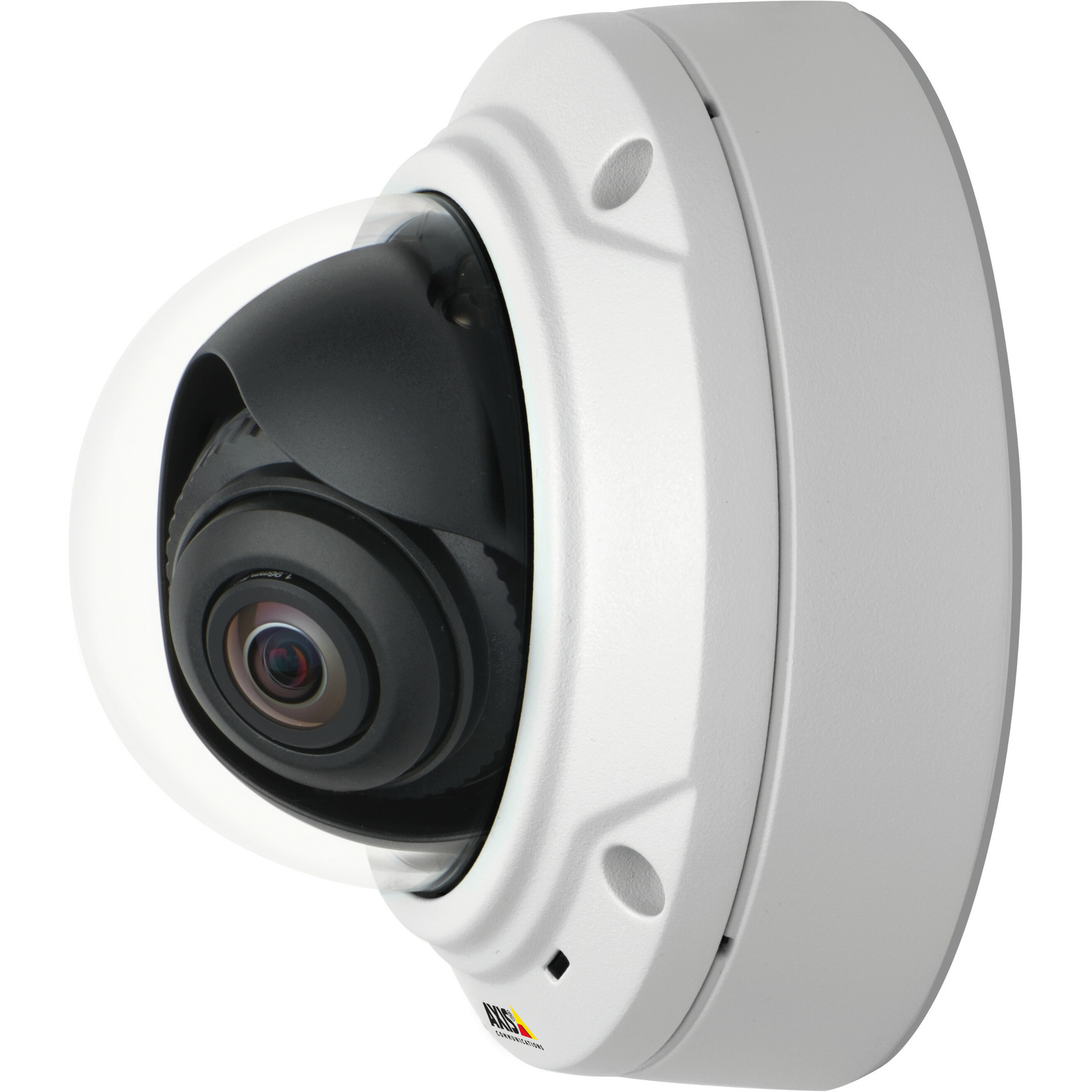

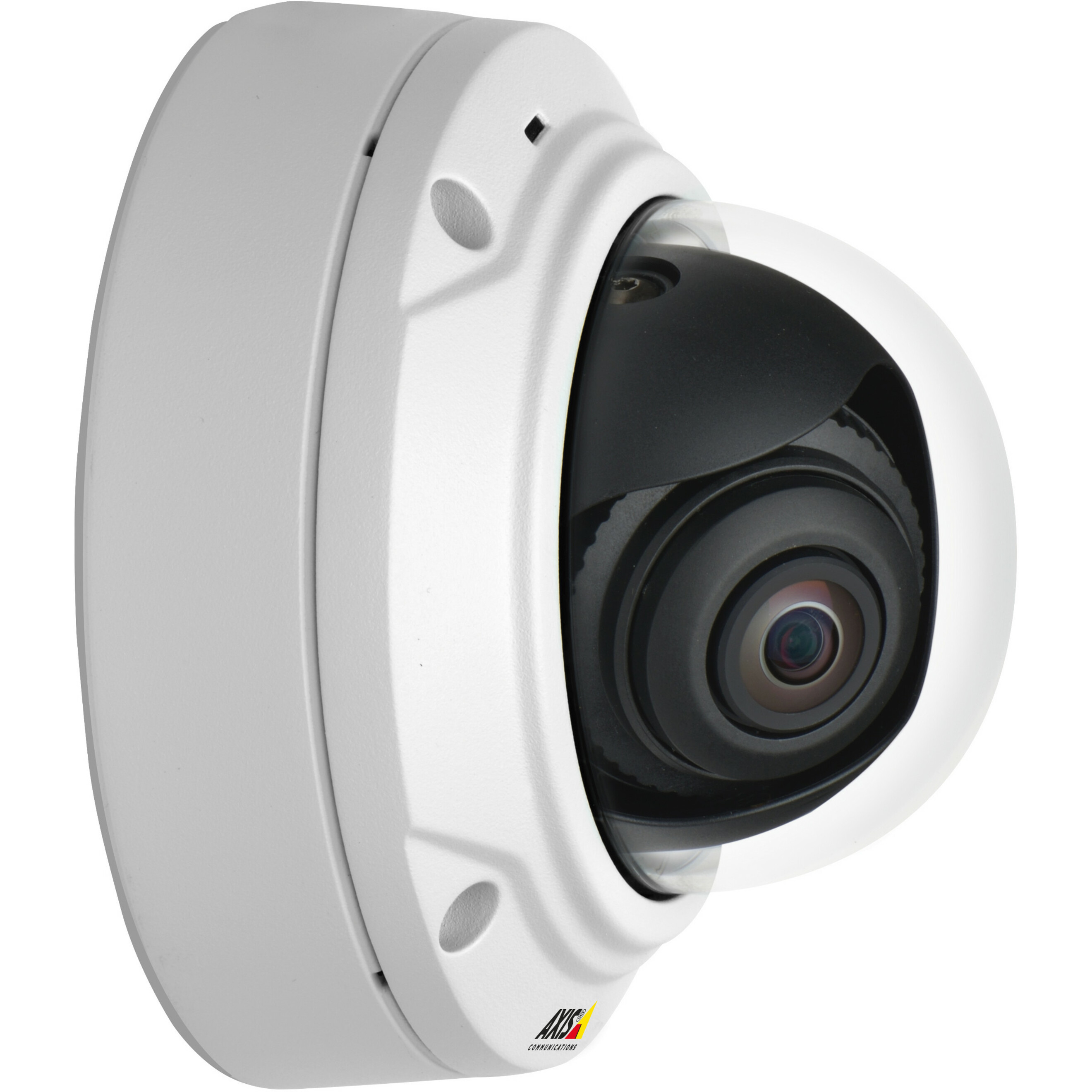

AXIS M3026-VE 3 Megapixel Indoor/Outdoor Network Camera - Color, Monochrome - Dome - White - H.264, MJPEG, MPEG-4 - 2048 x 1536 Fixed Lens - 30 fps - CMOS - Fast Ethernet - Vandal Resistant, Impact Resistant
Part number 0547-001
AXIS M3026-VE 3 Megapixel Indoor/Outdoor Network Camera - Color, Monochrome - Dome - White
NDAA Section 889 / TAA-compliant — country of origin confirmed on quote
We confirm stock, country of origin and compliance before any order — no payment up front.
Highlights
- For remote surveillance needs, this network camera is best suited
- Up to 2048 x 1536 resolution for surveillance in real-time
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 2 mm maximum focal length for dependable identification distances with better coverage
- f/2 maximum aperture for productive capturing according to focal length and lighting conditions
- Fixed lens type is set all the way open to its lowest F stop, and is common on small form factor cameras
Tech specs
Specifications
| Product Type | Network Camera |
| Maximum Aperture | f/2 |
| Image Sensor Size | 1/3.6" |
| Maximum Video Resolution | 2048 x 1536 |
| Maximum Frame Rate | 30 fps fps |
| Maximum Focal Length | 2 mm mm |
| Image Sensor Type | CMOS |
| Effective Camera Resolution | 3 Megapixel Pixel |
| Ethernet Technology | Fast Ethernet |
| Field of View | 106° |
| Network (RJ-45) | Yes |
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/30500 Second |
| Lens Mount Type | M12-mount |
| Maximum Power Consumption | 4.50 W W |
| Lens Included | Yes |
| Indoor/Outdoor | Indoor/Outdoor |
| Product Color | White |
| Color Family | White |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Diameter | 5.2" mm |
| Height | 3.7" mm |
| Color Supported | Color |
| Color Supported | Monochrome |
| Connectivity Technology | Wired |
| Product Series | M30-VE |
| Durability | Vandal Resistant |
| Durability | Impact Resistant |
| Features | Motion Detection |
| Features | Day/Night |
| Features | SD Card Local Storage |
| Form Factor | Dome |
| Lens Type | Fixed |
| Product Model | M3026-VE |
| Video Formats | H.264 |
| Video Formats | MJPEG |
| Video Formats | MPEG-4 |
| Protocols | IPv4 |
| Protocols | IPv6 |
