Axis Communications

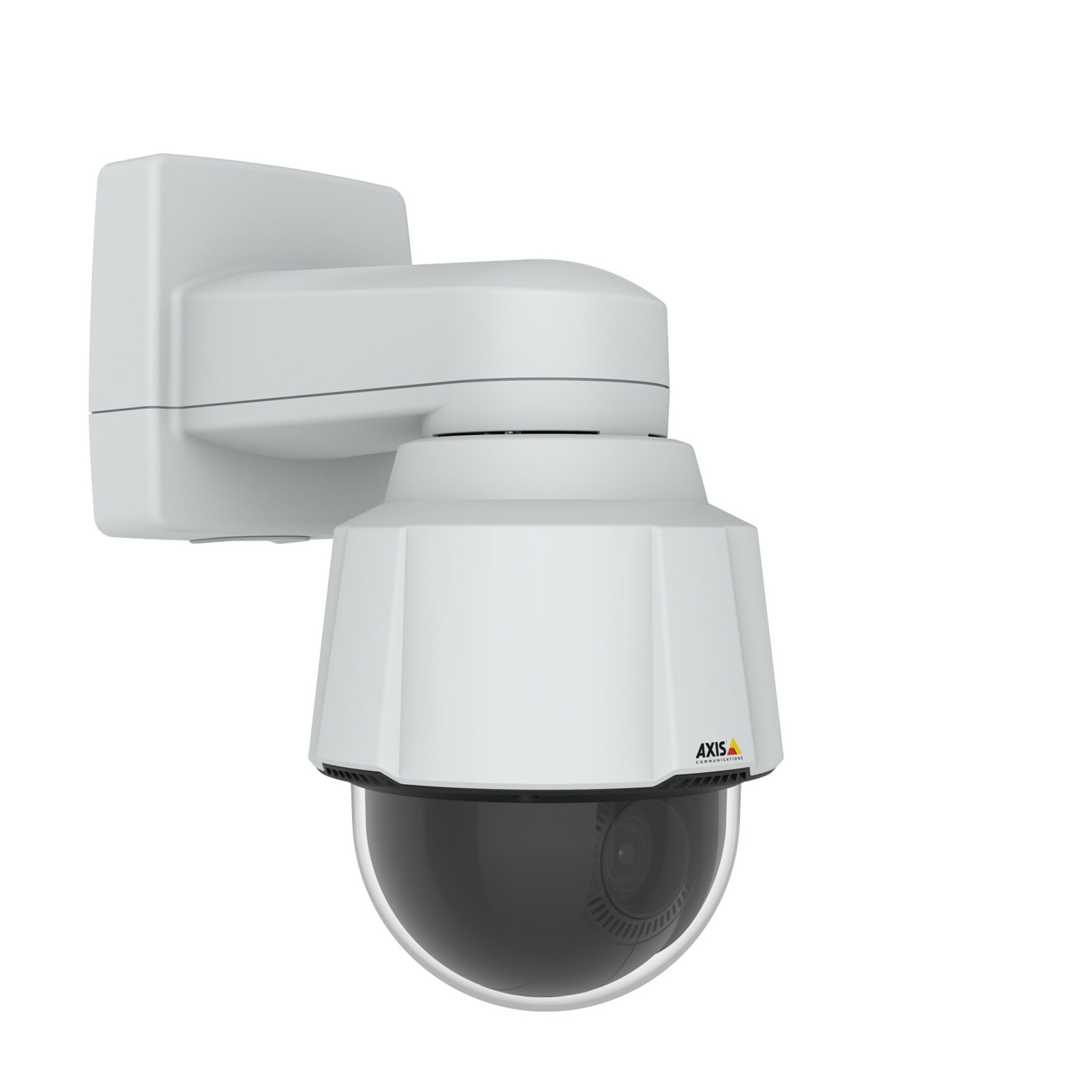

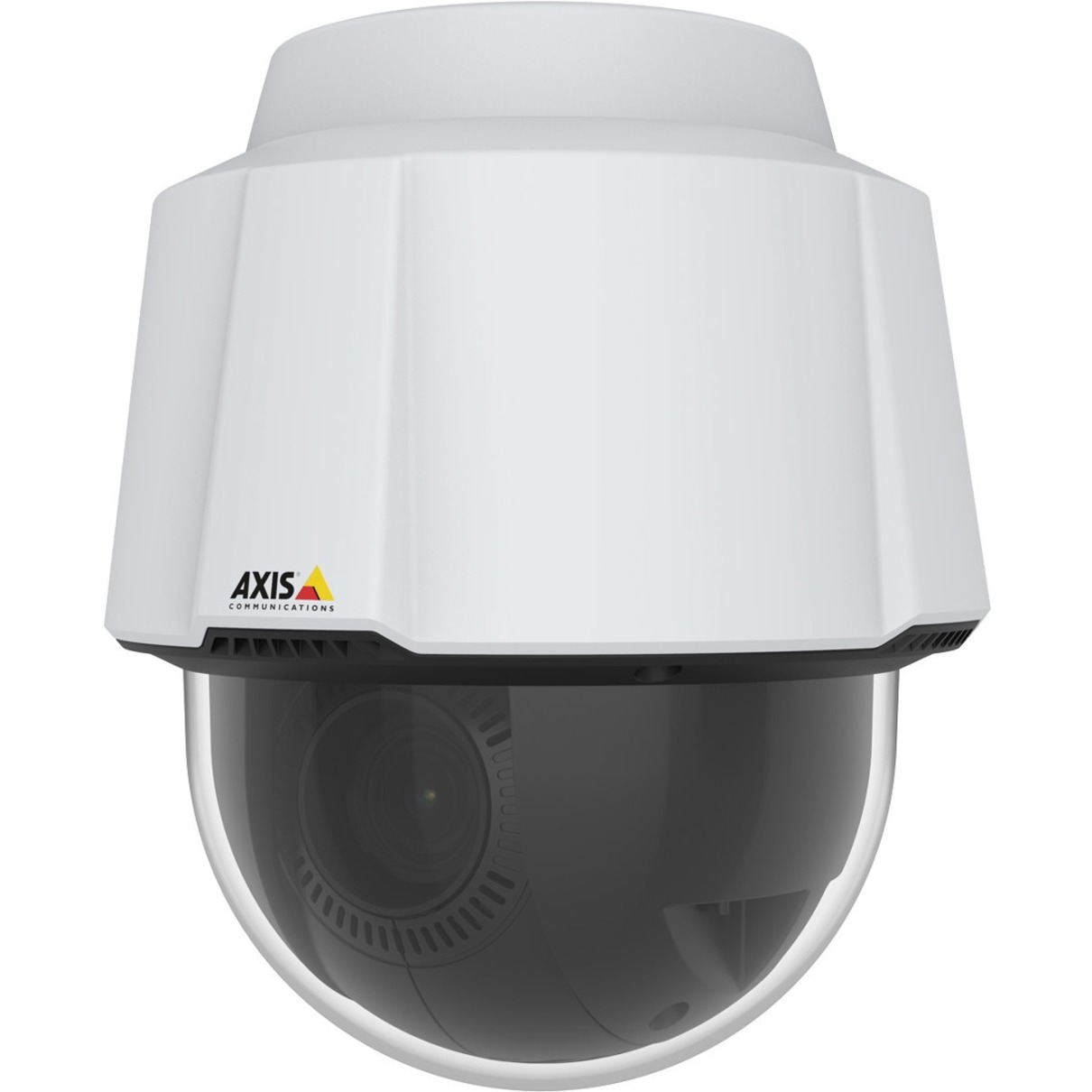

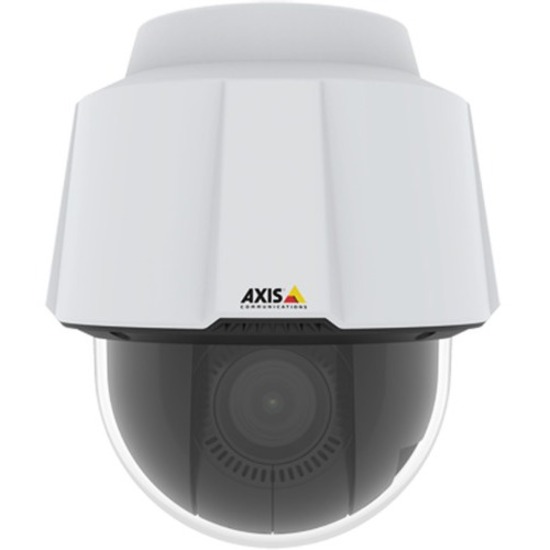

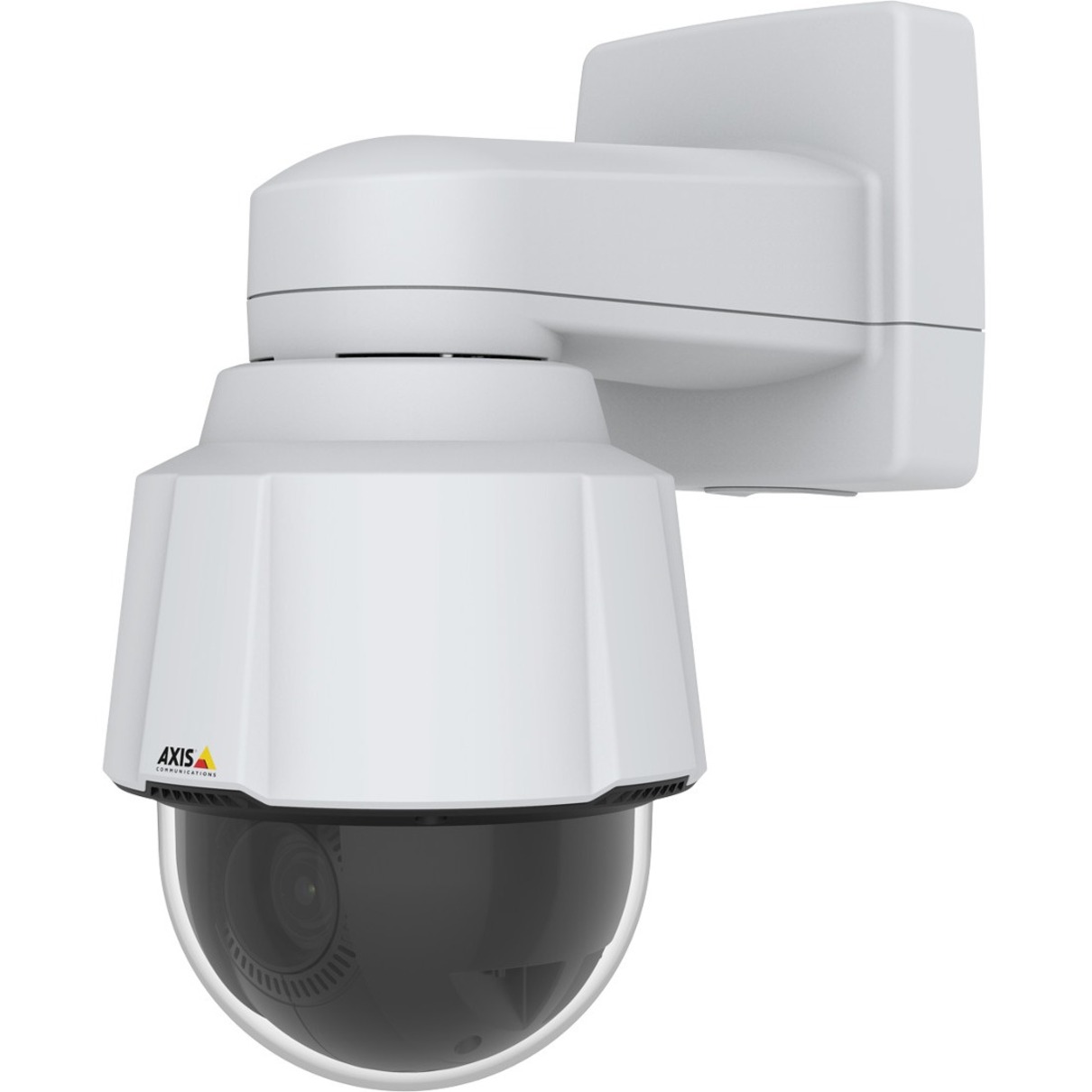

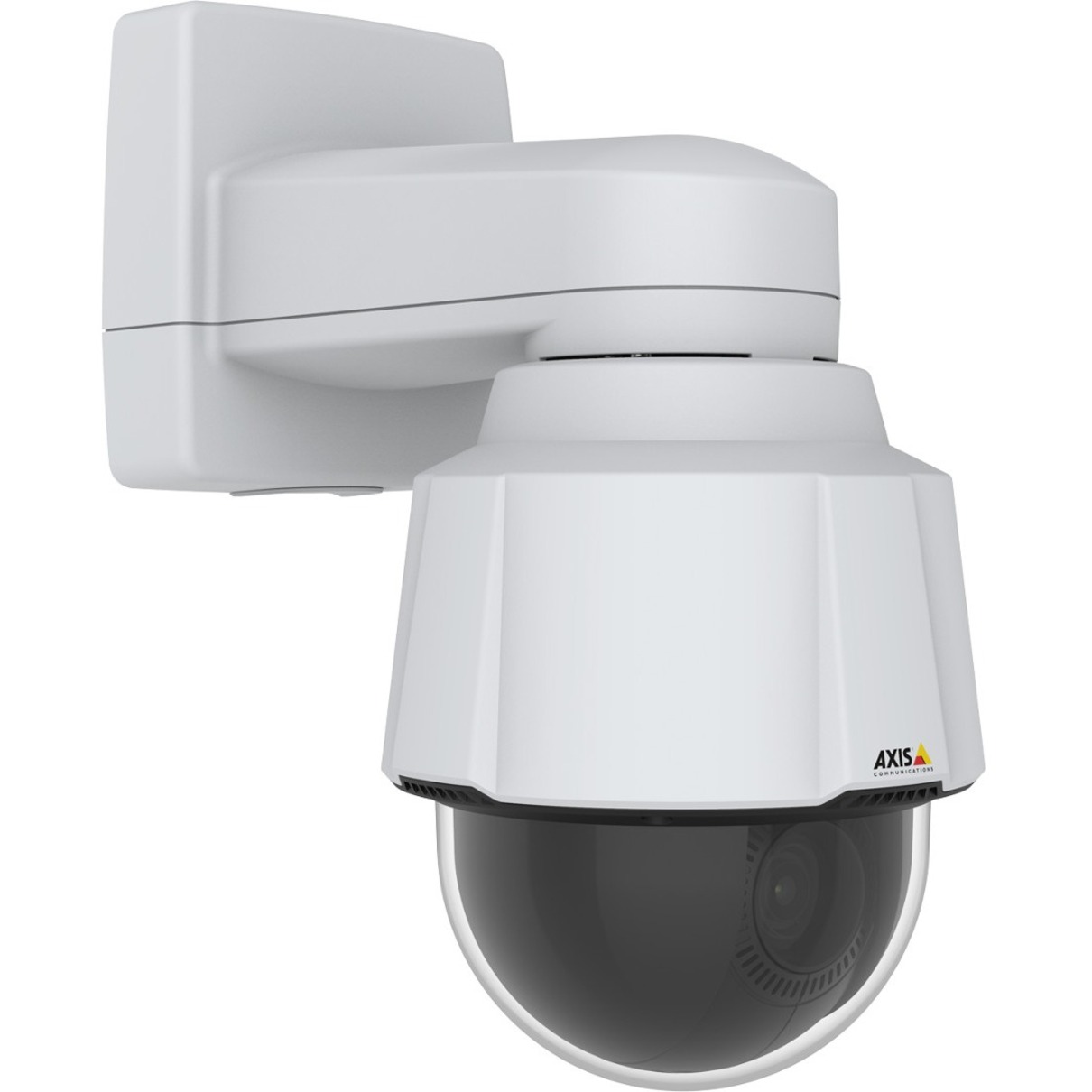

AXIS P5654-E 900 Kilopixel Indoor/Outdoor HD Network Camera - Color, Monochrome - Dome - White - TAA Compliant - H.264, H.265, H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), MJPEG - 1280 x 720 - 4 mm- 84.60 mm Varifocal Lens - 21x Optical - 60 fps - RGB CMOS - Ceiling Mount, Wall Mount, Pendant Mount, Pole Mount, Parapet Mount, Recessed Mount, Corner Mount - IK10 - IP66
Part number 01759-001
AXIS P5654-E 900 Kilopixel Indoor/Outdoor HD Network Camera - Color, Monochrome - Dome - White - TAA Compliant
NDAA Section 889 / TAA-compliant — country of origin confirmed on quote
We confirm stock, country of origin and compliance before any order — no payment up front.
Highlights
- HDTV 720p with 21x optical zoom
- Lightfinder 2.0 and Forensic WDR
- Signed firmware and secure boot
- Electronic image stabilization
- Zipstream with support for H.264 and H.265
Tech specs
Specifications
| Product Type | Network Camera |
| Color Supported | Color |
| Color Supported | Monochrome |
| Connectivity Technology | Wired |
| Features | PTZ |
| Features | Electronic Image Stabilization |
| Features | Day/Night |
| Features | Built-in Card Reader |
| Features | Cross Line Detection |
| Features | Motion Detection |
| Features | White Balance |
| Features | SD Card Local Storage |
| Features | Password Protection |
| Features | HTTPS Encryption |
| Form Factor | Dome |
| Lens Type | Varifocal |
| Product Model | P5654-E |
| Mount Type | Ceiling Mount |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Recording Formats | HD |
| Package Contents | P5654-E PTZ Network Camera RJ45 Push-pull Connector (IP66) Hard Ceiling Mount Spring Pipe Adapter U-profile Pipe Adapter Installation Guide Windows Decoder 1-user License AVHS Authentication Key Smoked Dome |
| Limited Warranty | 5 Year Year |
| Weight (Approximate) | 5.51 lb g |
| Maximum Aperture | f/4.5 |
| Maximum Video Resolution | 1280 x 720 |
| Maximum Frame Rate | 60 fps fps |
| Maximum Focal Length | 84.60 mm mm |
| Minimum Focal Length | 4 mm mm |
| Image Sensor Type | RGB CMOS |
| Effective Camera Resolution | 900 Kilopixel Pixel |
| Field of View | Horizontal field of view: 77.0°- 3.6°, Vertical field of view: 43.1°- 2.0° |
| Minimum Operating Temperature | -22°F (-30°C) °F |
| Maximum Operating Temperature | 122°F (50°C) °F |
| Network (RJ-45) | Yes |
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/66500 Second |
| Remote Management | Yes |
| Minimum Aperture | f/1.6 |
| HD Recording | Yes |
