Axis Communications

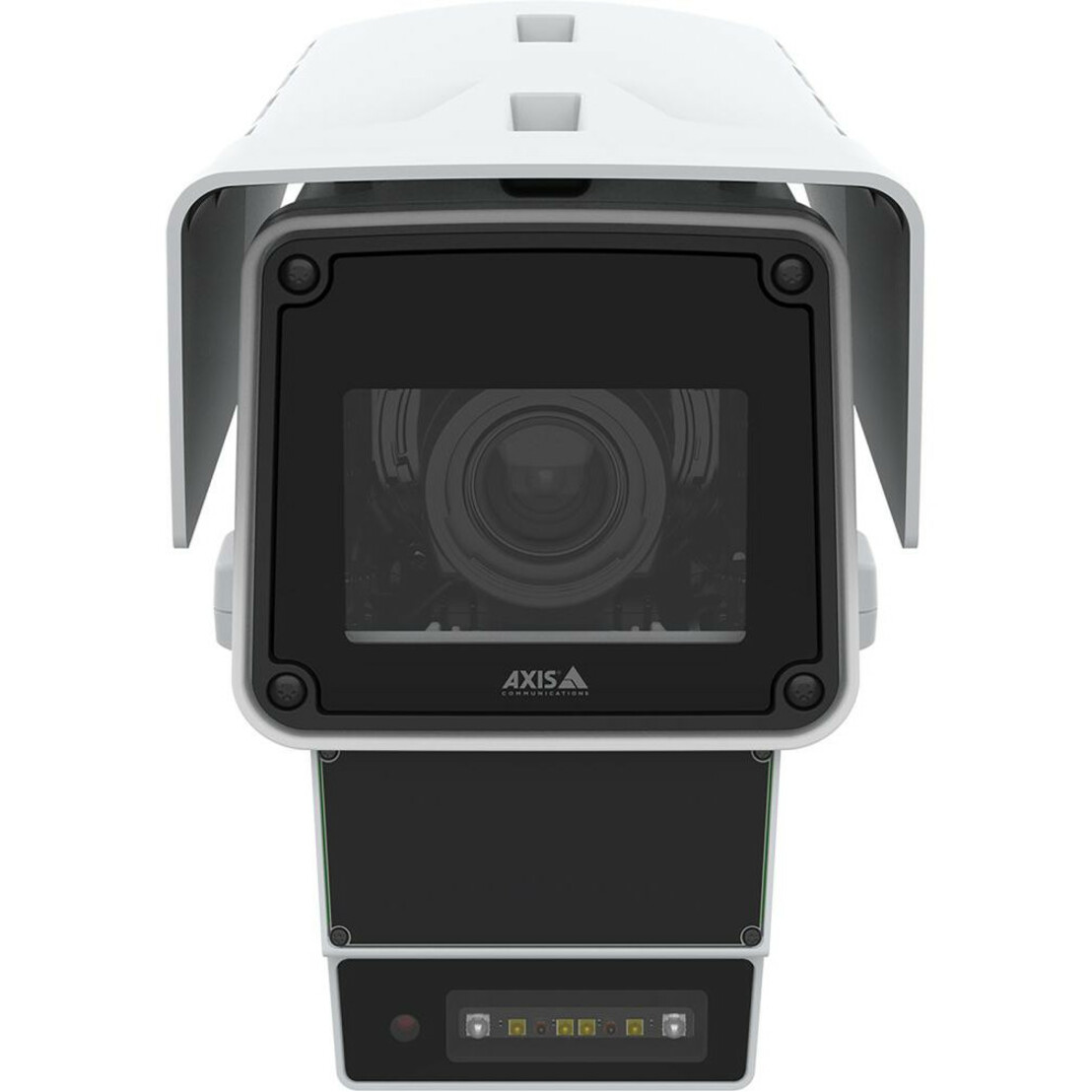

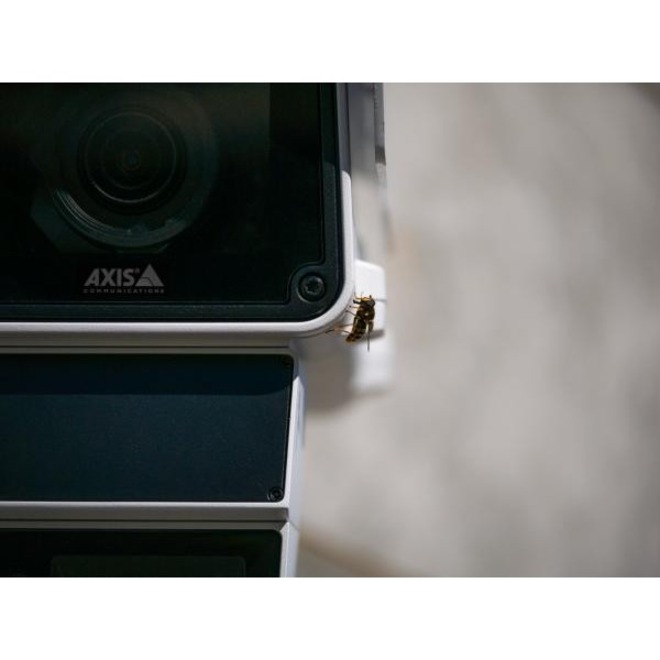

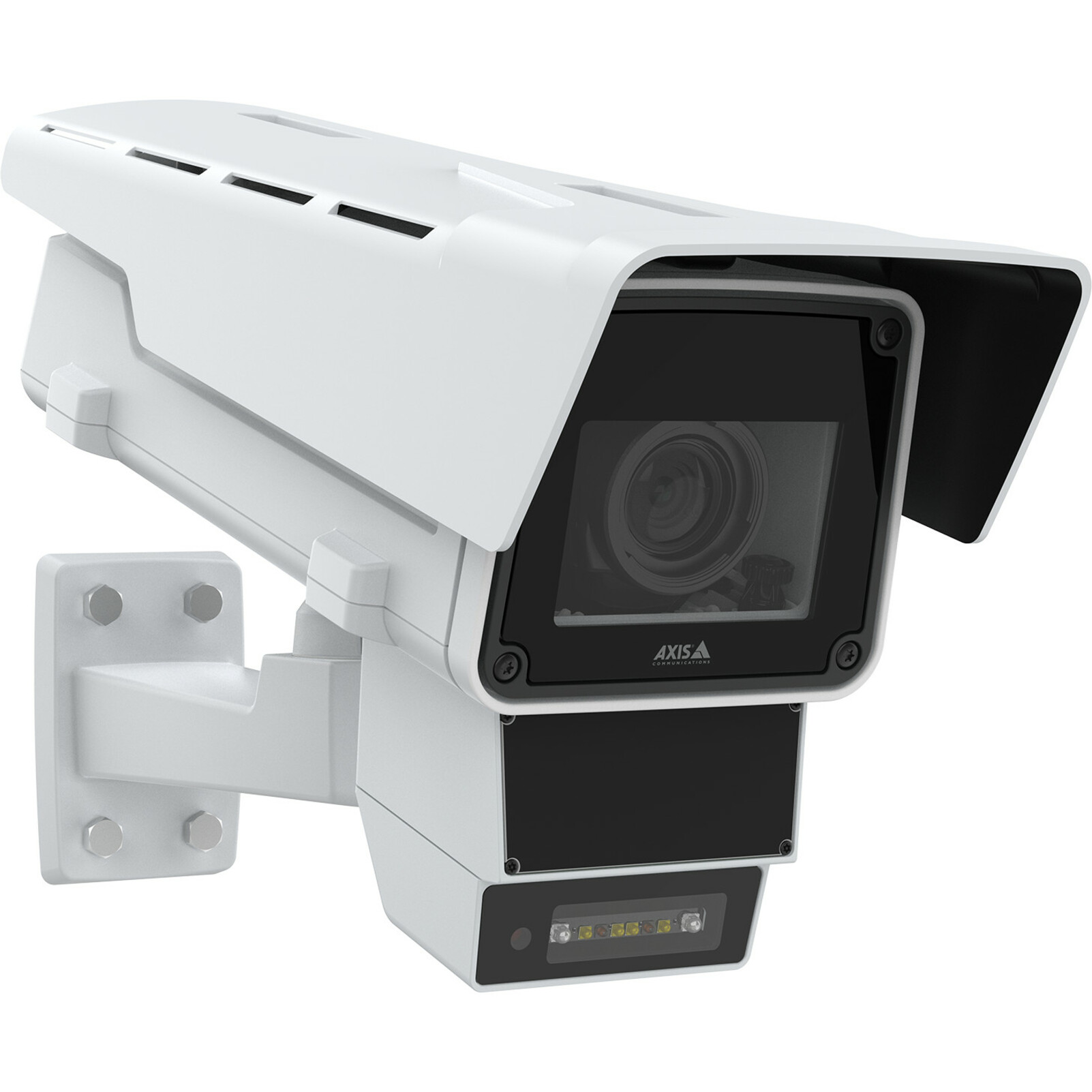

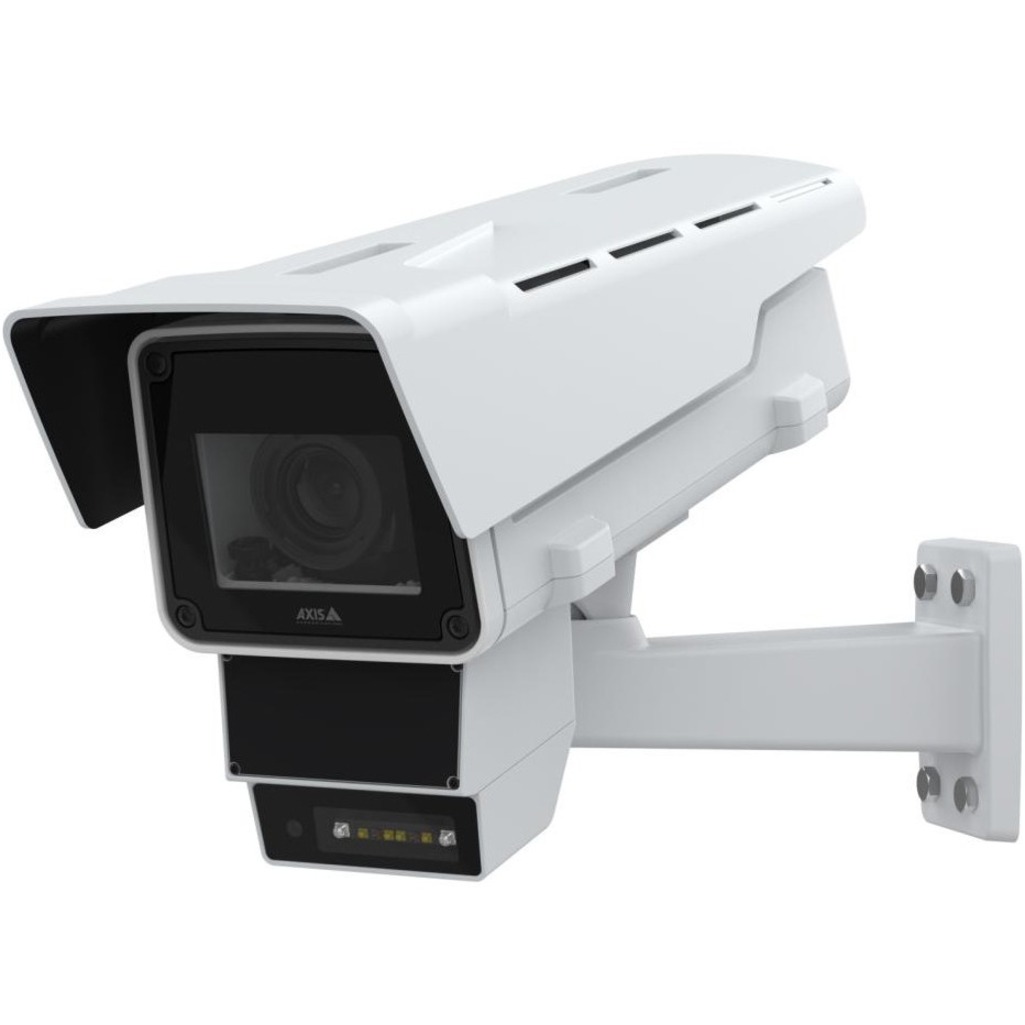

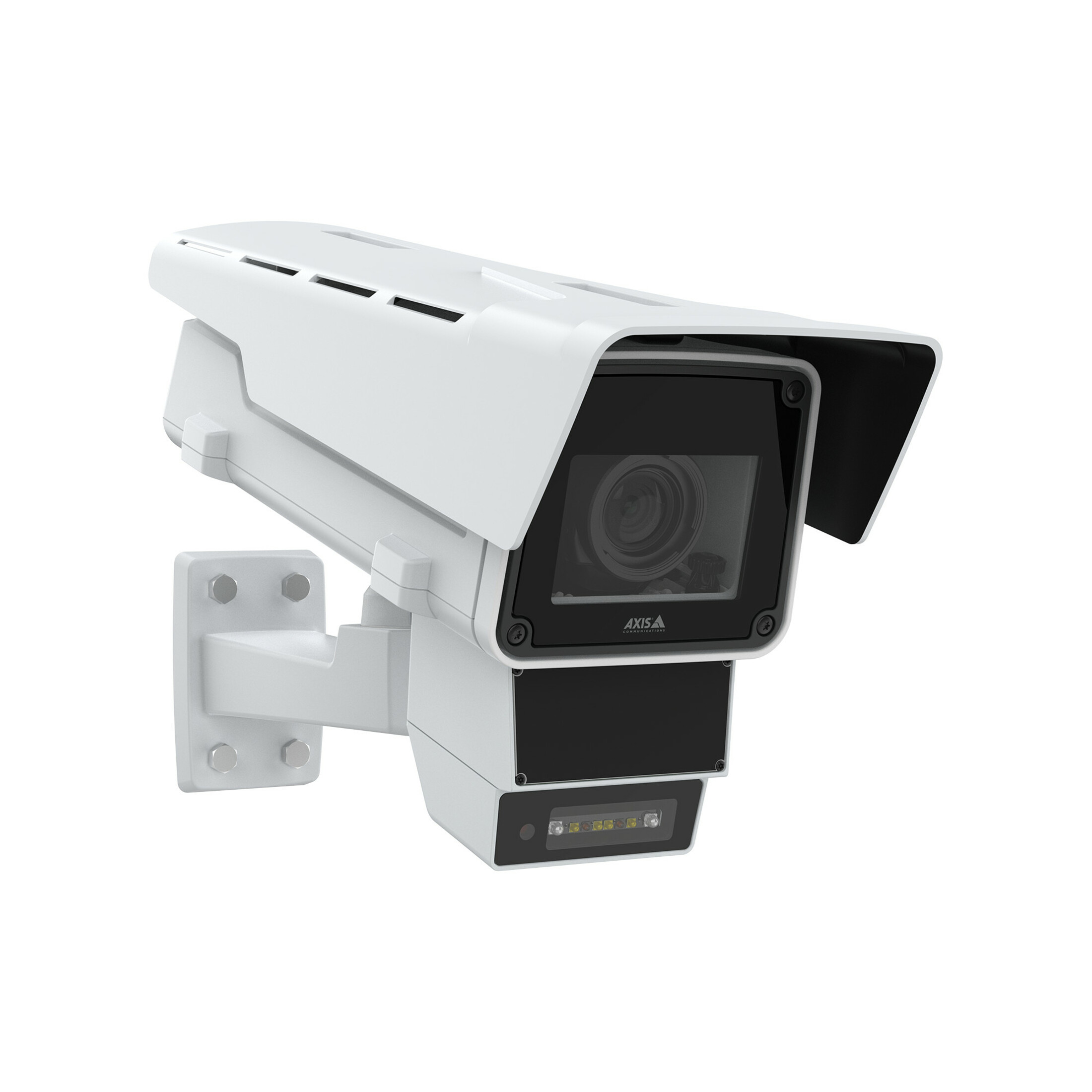

AXIS Q1656-DLE 4 Megapixel Network Camera - Color - Box - White - 124.67 ft Infrared Night Vision - Zipstream, H.265, Motion JPEG, H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), H.264 - 2688 x 1512 - 3.90 mm- 10 mm Varifocal Lens - 3.9x Optical - 60 fps - CMOS - Gigabit Ethernet - Wall Mount - IK08 - IP66 - Impact Resistant
Part number 02420-001
AXIS Q1656-DLE 4 Megapixel Network Camera - Color - Box - White
NDAA Section 889 / TAA-compliant — country of origin confirmed on quote
$2,614.21$2,869.00Save 9%
Factory-direct — ships in ~2 weeks
Or request a TAA-compliant quote → Free US delivery 30-day returns NDAA 889 / TAA compliance verified on every order
We confirm stock, country of origin and compliance before any order — no payment up front.
Highlights
- For remote surveillance needs, this network camera is best suited
- Up to 2688 x 1512 resolution for surveillance in real-time
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 10 mm maximum focal length for dependable identification distances with better coverage
- 3.9x optical zoom ensures maximum surveillance productivity without compromising quality
- Provides night vision of objects at a distance of up to 124.67 ft
Tech specs
Specifications
| Product Type | Network Camera |
| Image Sensor Size | 1/1.8" |
| Maximum Video Resolution | 2688 x 1512 |
| Maximum Frame Rate | 60 fps fps |
| Maximum Focal Length | 10 mm mm |
| Minimum Focal Length | 3.90 mm mm |
| Image Sensor Type | CMOS |
| Effective Camera Resolution | 4 Megapixel Pixel |
| Ethernet Technology | Gigabit Ethernet |
| Field of View | Horizontal field of view: 96°-44° Vertical field of view: 63°-26° |
| Minimum Operating Temperature | -40°F (-40°C) °F |
| Maximum Operating Temperature | 140°F (60°C) °F |
| Network (RJ-45) | Yes |
| Longest Shutter Speed | 1 Second |
| Remote Management | Yes |
| Maximum Power Consumption | 25.50 W W |
| Night Vision | Yes |
| HD Recording | Yes |
| Lens Included | Yes |
| Night Vision Distance | 124.67 ft mm |
| Camera Iris | P-iris |
| Storage Type | Memory Card |
| Product Color | White |
| Power Source Type | PoE |
| Power Source Type | DC |
| Color Family | White |
| Impact Protection Rating | IK08 |
| Ingress Protection Rating | IP66 |
| Night Vision Type | Infrared |
| Maximum Operating Humidity | 100% % |
| Color Supported | Color |
| Connectivity Technology | Wired |
| Product Series | Q16 |
| Optical Zoom | 3.9x x |
| Durability | Impact Resistant |
| Features | Wide Dynamic Range |
| Features | Electronic Image Stabilization |
| Features | Audio Detection |
| Features | Day/Night |
| Features | Alarm Detection |
