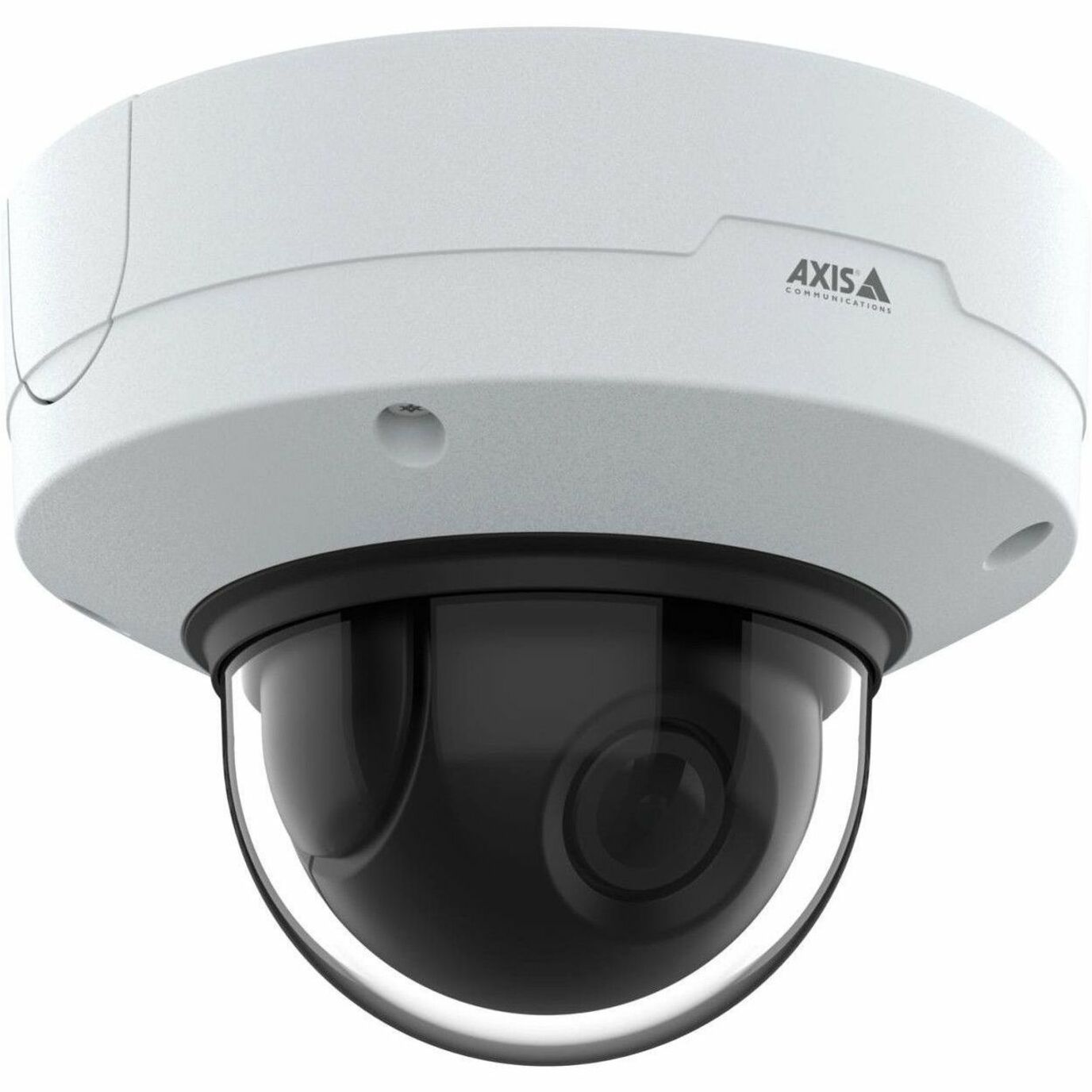

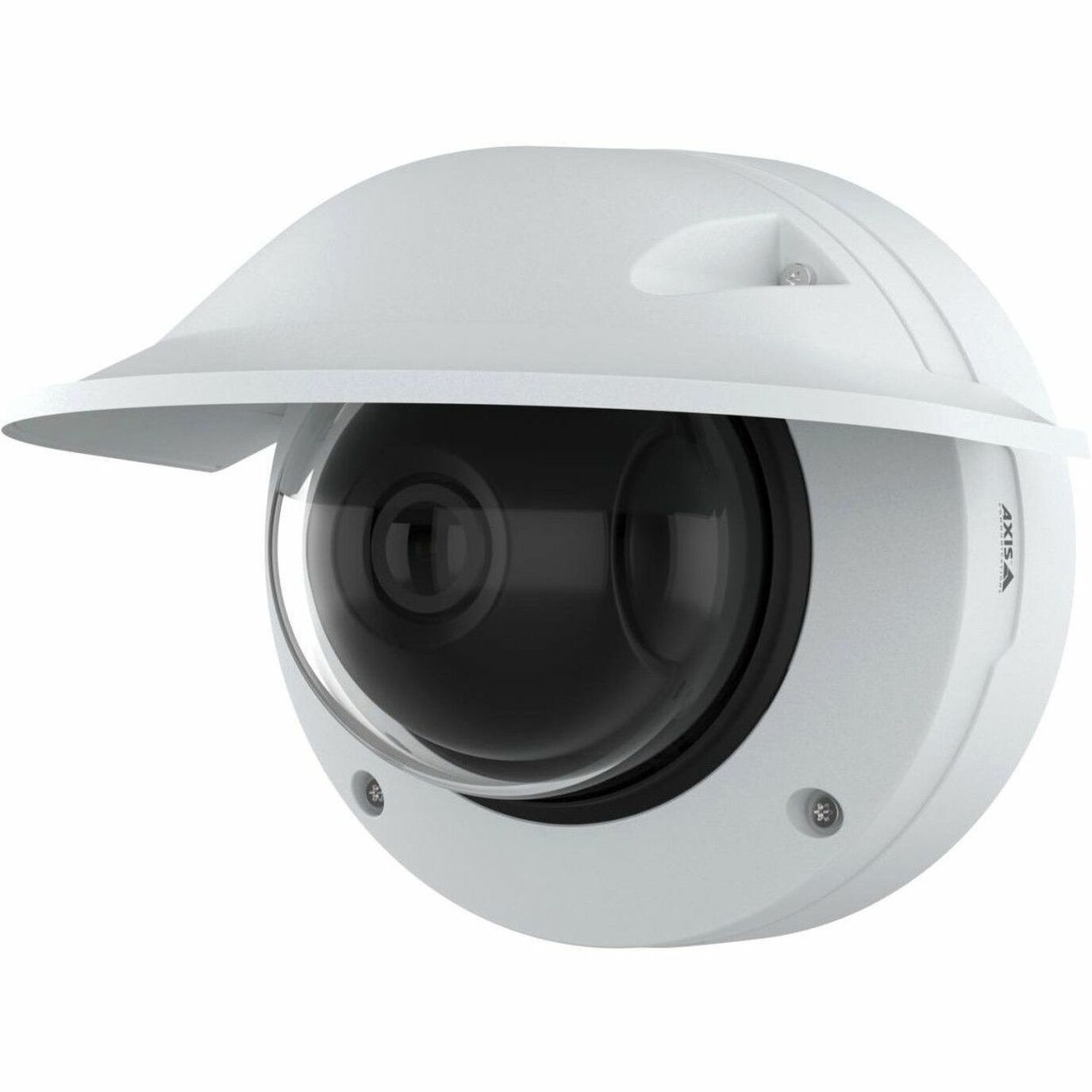

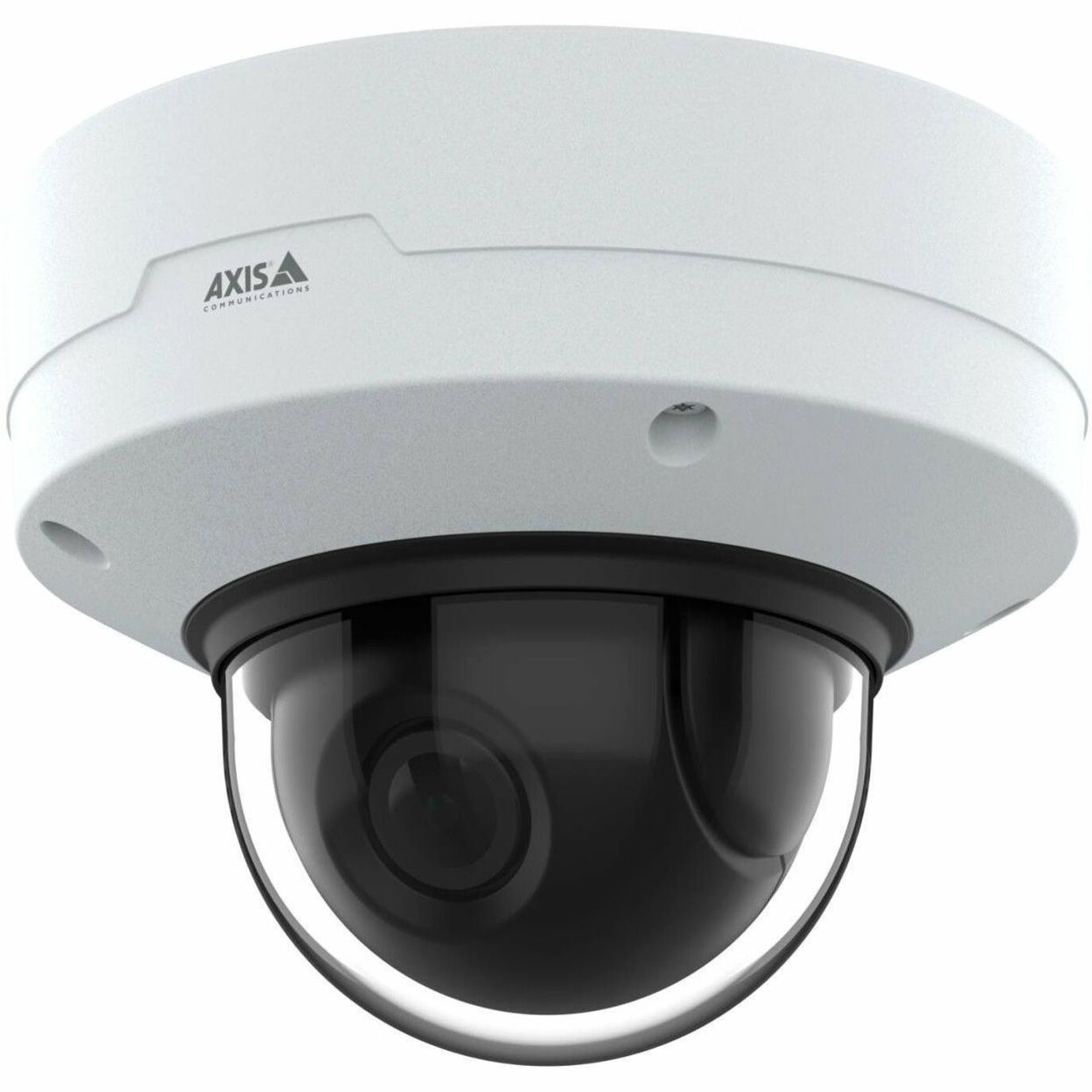

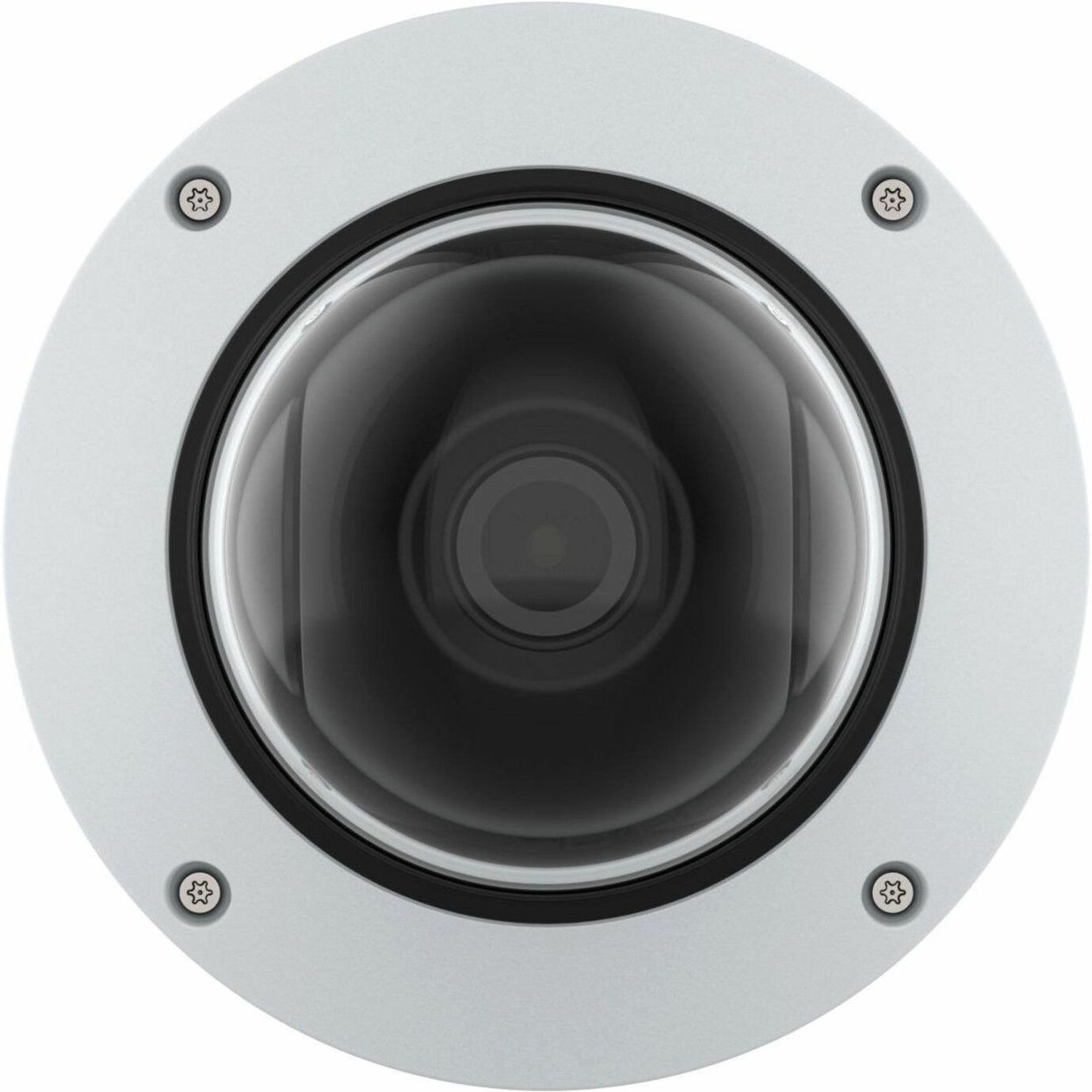

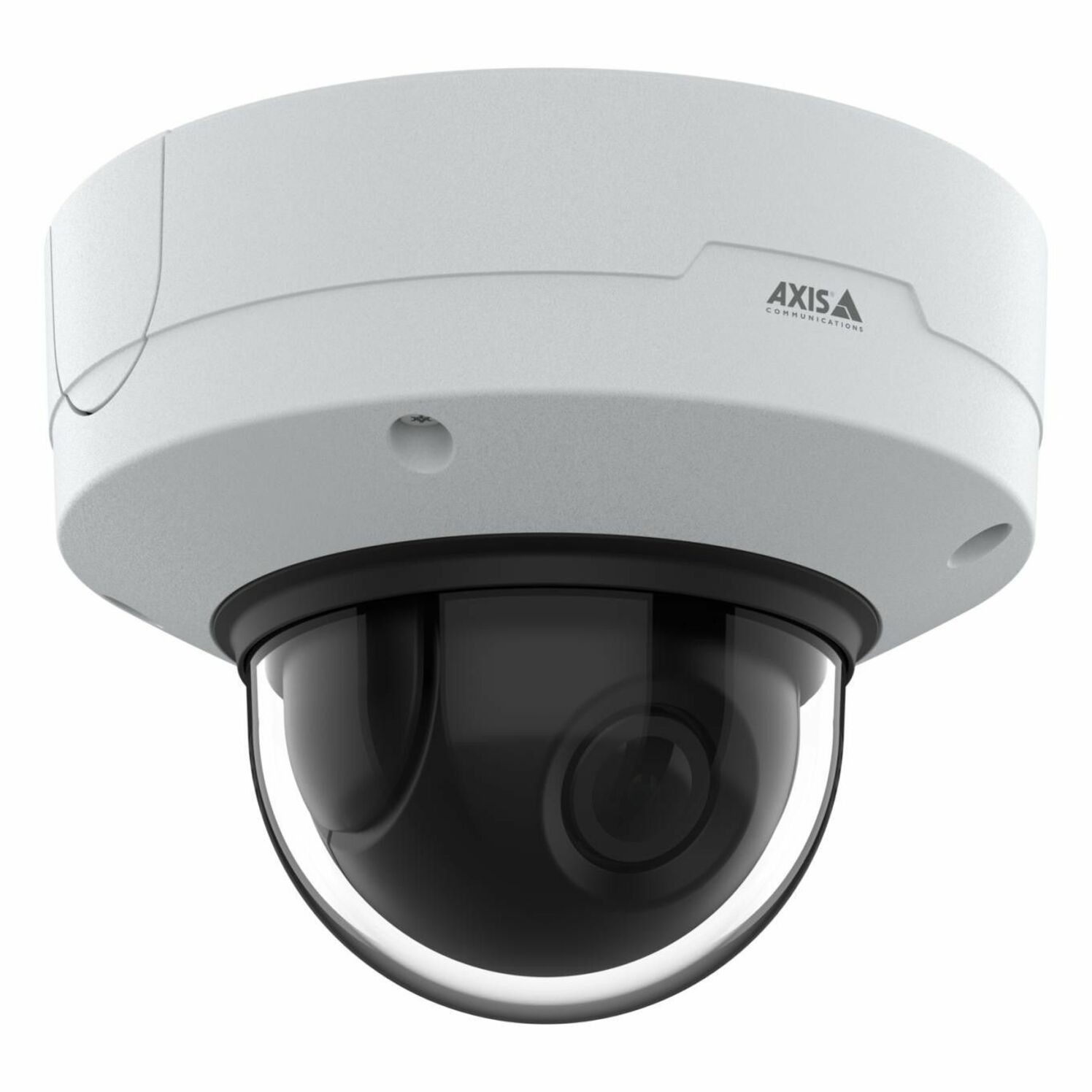

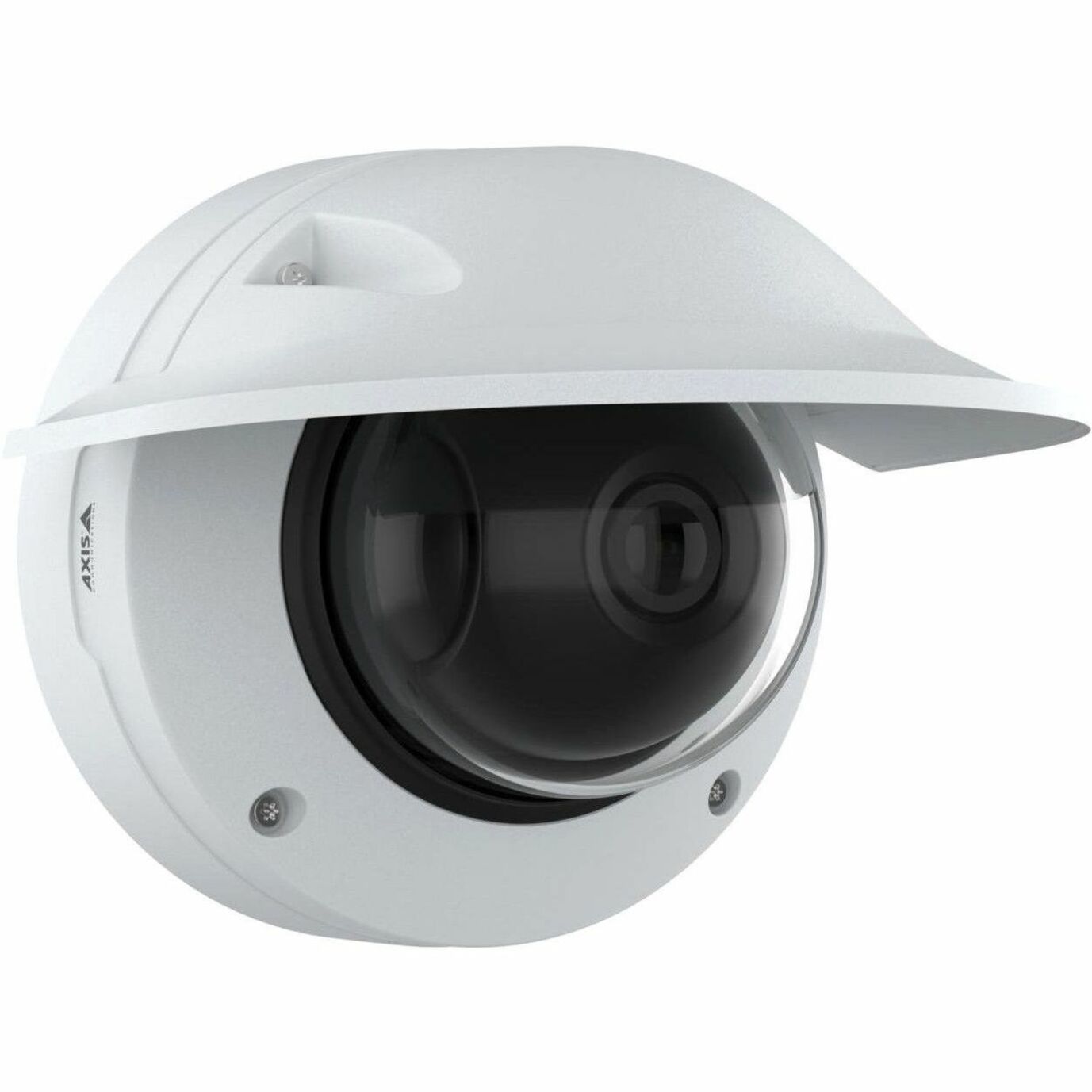

AXIS Q3626-VE 4 Megapixel Outdoor Network Camera - Color - Dome - White - TAA Compliant - H.265, Zipstream, H.264, H.264B, H.264H, H.264M, Motion JPEG - 2688 x 1512 - 4.30 mm- 8.60 mm Varifocal Lens - 2x Optical - 60 fps - CMOS - Junction Box Mount - IK10 - IP66, IP6K9K - Vandal Resistant, Weather Resistant, Shock Resistant, Vibration Resistant
Part number 02616-001
AXIS Q3626-VE 4 Megapixel Outdoor Network Camera - Color - Dome - White - TAA Compliant
NDAA Section 889 / TAA-compliant — country of origin confirmed on quote
We confirm stock, country of origin and compliance before any order — no payment up front.
Highlights
- Network camera - Helps achieve high-quality video results
- Up to 2688 x 1512 video resolution
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 8.60 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
- f/1.5 maximum aperture for better light absorption and dependable, better-quality results
- 2x optical zoom for desired image clarity and maximum capturing convenience
Tech specs
Specifications
| Product Type | Network Camera |
| Maximum Aperture | f/1.5 |
| Image Sensor Size | 1/1.8" |
| Maximum Video Resolution | 2688 x 1512 |
| Maximum Frame Rate | 60 fps fps |
| Maximum Focal Length | 8.60 mm mm |
| Minimum Focal Length | 4.30 mm mm |
| Image Sensor Type | CMOS |
| Effective Camera Resolution | 4 Megapixel Pixel |
| Field of View | Horizontal field of view: 103°-52° Vertical field of view: 56°-30° |
| Minimum Operating Temperature | -58°F (-50°C) °F |
| Maximum Operating Temperature | 131°F (55°C) °F |
| Network (RJ-45) | Yes |
| Longest Shutter Speed | 1 Second |
| Shortest Shutter Speed | 1/91000 Second |
| Remote Management | Yes |
| Minimum Aperture | f/2.4 |
| HD Recording | Yes |
| Lens Included | Yes |
| Storage Type | Memory Card |
| TAA Compliant | Yes |
| Indoor/Outdoor | Outdoor |
| Product Color | White |
| Power Source Type | DC |
| Power Source Type | PoE |
| Color Family | White |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Ingress Protection Rating | IP6K9K |
| Maximum Operating Humidity | 100% % |
| Diameter | 7.2" mm |
| Height | 5.6" mm |
| Color Supported | Color |
| Connectivity Technology | Wired |
| Product Series | Q36 |
| Optical Zoom | 2x x |
| Durability | Vandal Resistant |
| Durability | Weather Resistant |
| Durability | Shock Resistant |
| Durability | Vibration Resistant |
