Axis Communications
AXIS T99A10 Surveillance Camera Pan/Tilt - Robust, Pole Mountable, Wall Mountable, Tilt, Pan - Surveillance, Outdoor - Weather Proof, Temperature Resistant, Impact Resistant - Aluminum - White - TAA Compliant
Part number 01226-001

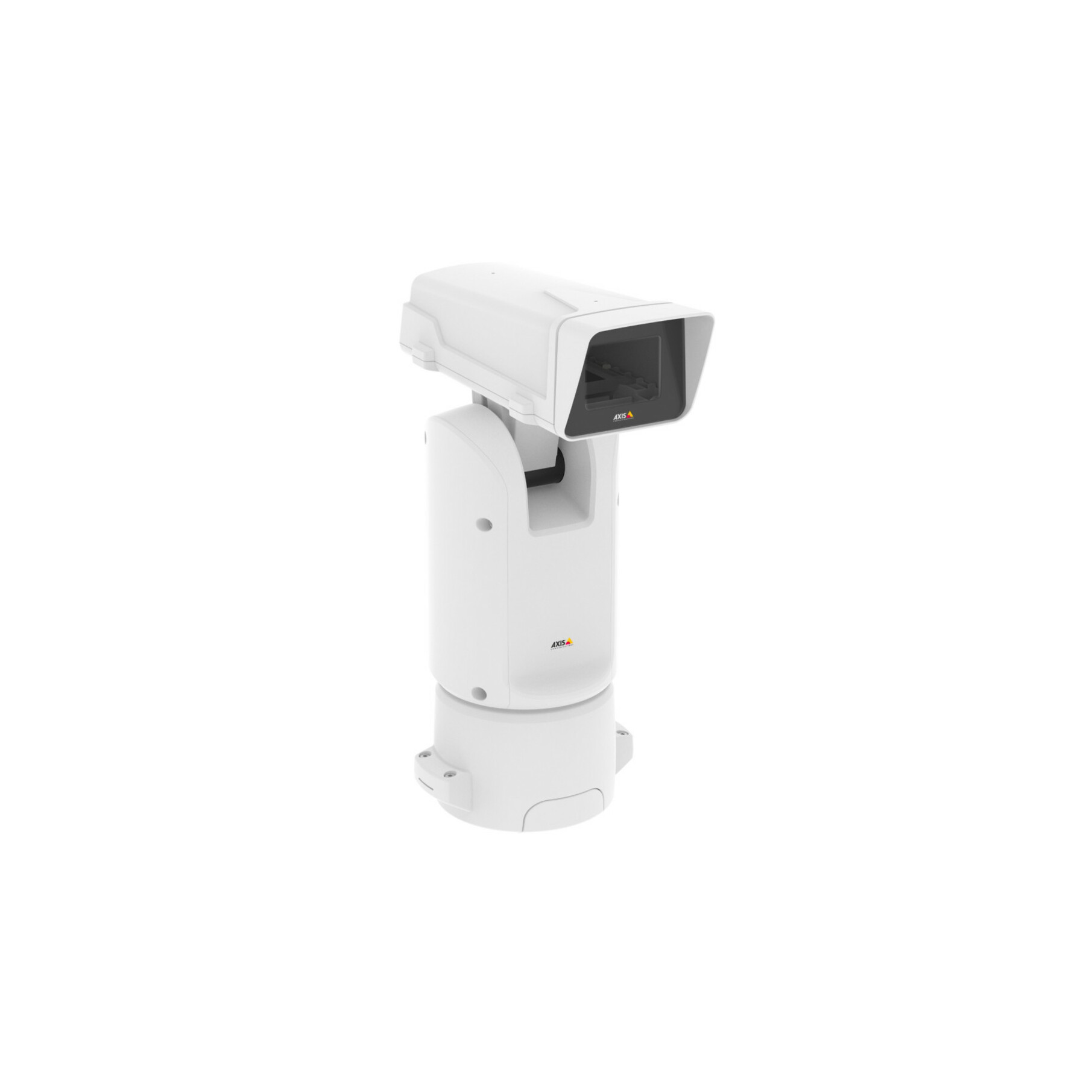

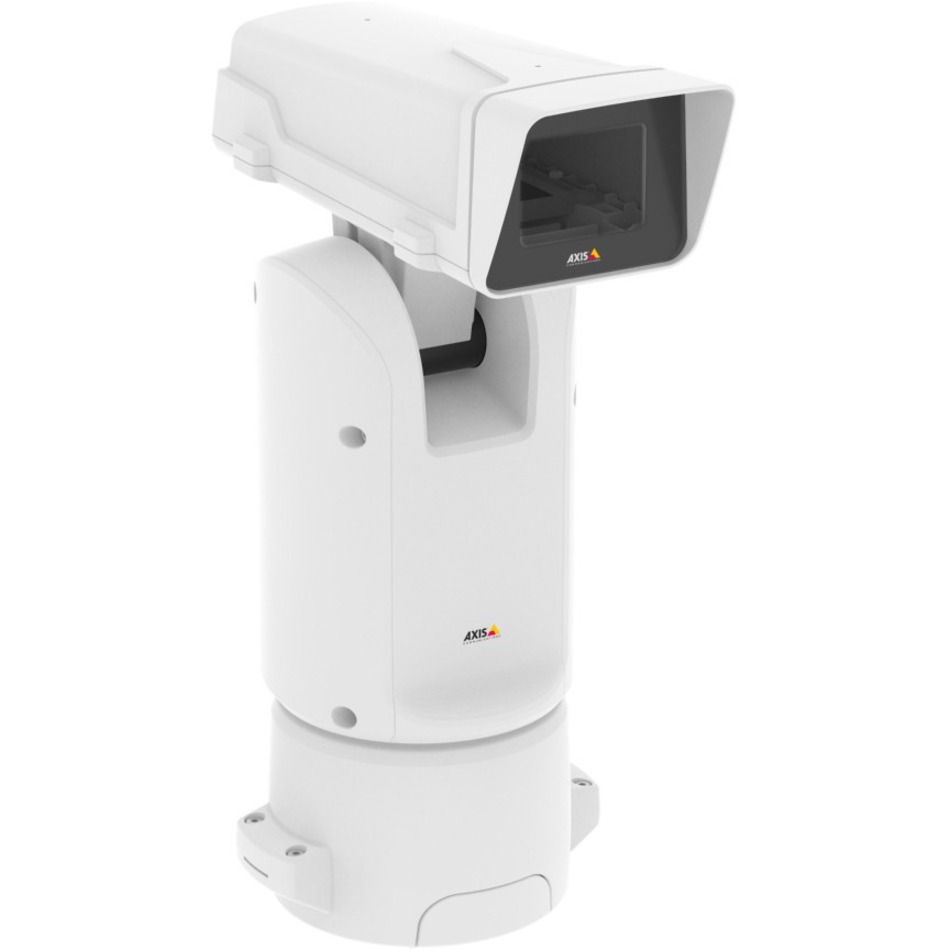

AXIS T99A10 Surveillance Camera Pan/Tilt
NDAA Section 889 / TAA-compliant — country of origin confirmed on quote
We confirm stock, country of origin and compliance before any order — no payment up front.
Tech specs
Specifications
| Product Type | Surveillance Camera Pan/Tilt |
| TAA Compliant | Yes |
| Product Color | White |
| Color Family | White |
| Product Material | Aluminum |
| Country of Origin | United States |
| Height | 22" mm |
| Width | 15" mm |
| Depth | 9" mm |
| Certifications & Standards | Approvals: EMC: EN 55032 Class A, EN 55024, EN 61000-6-1 EN 61000-6-2 FCC Part 15 Subpart B Class A VCCI Class A ITE ICES-003 Class A RCM AS/NZS CISPR 32 Class A EN 50121-4 IEC 62236-4 Safety: IEC/EN/UL 62368-1 IEC/EN/UL 60950-22 Environment: IEC/EN 60529 IP66 IEC 62262 IK10 NEMA 250 Type 4X ISO 4892-2 IEC 60068-2-6 IEC 60068-2-27 |
| Durability | Weather Proof |
| Durability | Temperature Resistant |
| Durability | Impact Resistant |
| Features | Robust |
| Features | Pole Mountable |
| Features | Wall Mountable |
| Features | Tilt |
| Features | Pan |
| Compatibility | AXIS Communications Network Cameras: P1375 P1377 P1378 Q1615 Mk II Q1645 Q1647 |
| Product Model | T99A10 |
| Device Supported | Network Camera |
| Device Supported | Surveillance Camera |
| Application/Usage | Surveillance |
| Application/Usage | Outdoor |
| Additional Information | Pan/Tilt: Pan: 360° endless, 0.05°/s to 120°/s Tilt: -90° to +45°, 0.05°/s to 60°/s Jerk-free movements at low speed: ±0.01°/s (at 0.05°/s) De-icing control a Dynamic load balancingb Casing: IP66- and NEMA 4X-rated, IK10 impact-resistant powder coated aluminum Color: white NCS S 1002-B Sustainability: PVC free Power : 20-28 V AC/DC Typical: 10 W Max: 169 W TVS 2 kV surge protection I/O connector Output voltage: 12 V DC Max load: 50 mA Connectors: SFP slot (SFP module not included) c RJ45 10BASE-T/100BASE-TX/1000BASE-T network connector c Power connector I/O connector Operating conditions: Normal: -50 °C to 60 °C (-58 °F to 140 °F) Maximum (intermittent): 65 °C (149 °F) With compatible Axis cameras AXIS P1353/P1354/P1355/P1357 and AXIS Q1614: -40 ºC to 50 ºC (-40 ºF to 122 ºF) AXIS P1365 Mk II/P1367 and AXIS Q1615 Mk II/Q1635: -40 ºC to 55 ºC (-40 ºF to 131 ºF) Arctic Temperature Control: start-up at -40 °C (-40 °F) Humidity 10-100% RH (condensing) Wind load with camera when PT operational 52 m/s (117 mph), with illuminators mounted > 60 m/s (135 mph)d Maximum effective projected area (EPA): 0.105 m2 Storage conditions: -40 °C to 70 °C (-40 °F to 158 °F) |
| Weight (Approximate) | 25 lb g |
