Axis Communications
AXIS TU8003 90 W Connectivity Midspan - 120 V AC, 230 V AC Input - 54 V DC Output - 1 x RJ-45 Input Port(s) - 1 x PoE Output Port(s) - 90 W - White
Part number 02027-004

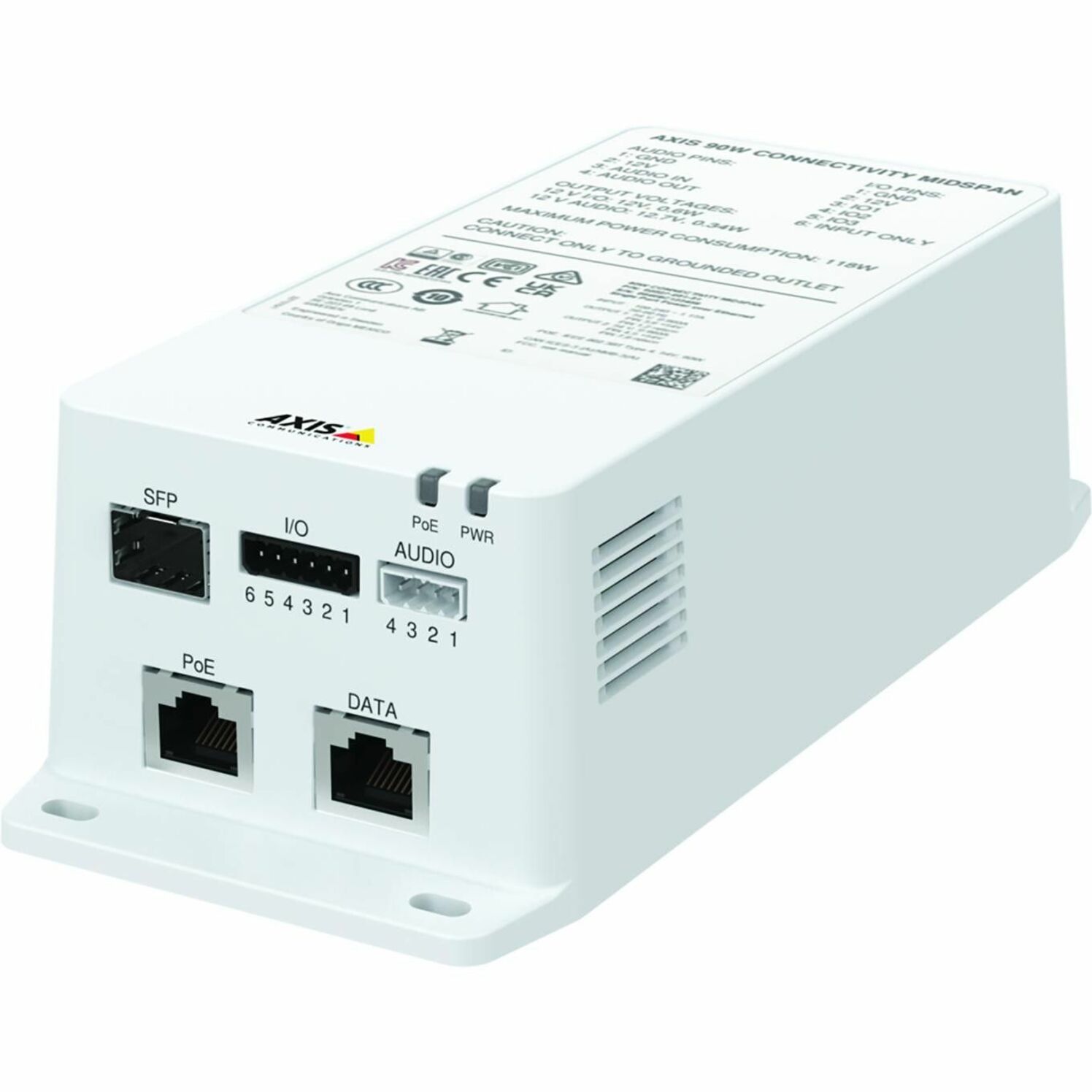

AXIS TU8003 90 W Connectivity Midspan
NDAA Section 889 / TAA-compliant — country of origin confirmed on quote
$296.49$319.00Save 7%
Factory-direct — ships in ~2 weeks
Or request a TAA-compliant quote → Free US delivery 30-day returns NDAA 889 / TAA compliance verified on every order
We confirm stock, country of origin and compliance before any order — no payment up front.
Highlights
- Audio and I/O ports
- Support Axis PTZ cameras
- IEEE 802.3bt and AXIS High PoE
- SFP slot for fiber
Tech specs
Specifications
| Product Type | PoE Injector |
| Maximum Output Power | 90 W W |
| Maximum Output Voltage | 54 V DC |
| TAA Compliant | Yes |
| Product Color | White |
| Color Family | White |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Height | 2.2" mm |
| Width | 3.1" mm |
| Depth | 7.2" mm |
| Certifications & Standards | IEEE 802.3bt IEEE 802.3af IEEE 802.3at UK CA UL CCC cUL BIS CE KC VCCI RCM EN 55035 EN 55032 Class A EN 50121-4 EN 61000-3-2 EN 61000-3-3 EN 61000-6-1 EN 61000-6-2 IEC 62236-4 CAN CSA C22.2 No. 62368-1 ed.2 IEC/EN/UL 62368-1 ed.2, IEC/EN 60950-1 IS 13252 CB EAC UKCA |
| Input Ports | 1 x RJ-45 |
| Output Ports | 1 x PoE |
| Compatibility | Axis C6110 Network Paging Console Axis Network Speakers: C1110-E C1111-E Axis PTZ Cameras: P5654-E Mk II P5655-E P5676-LE Q6074-E Q6075-E Q6078-E Q6135-LE Q6225-LE Q6318-LE Axis Panoramic Cameras: P3735-PLE P3737-PLE P3738-PLE |
| Form Factor | Wall/Shelf/DIN Rail Mountable |
| Product Model | TU8003 |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Package Contents | TU8003 90 W Connectivity Midspan Installation Guide Owner Authentication Key |
| Limited Warranty | 5 Year Year |
| Weight (Approximate) | 14.64 oz g |
