Hanwha Vision
Hanwha Techwin Infrared Illuminator - Aluminum, Polycarbonate
Part number SPI-50

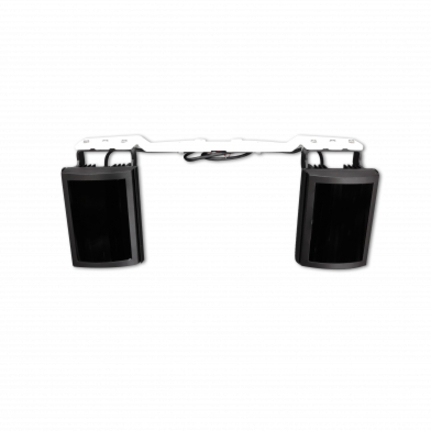

Hanwha Techwin Infrared Illuminator
NDAA Section 889 / TAA-compliant — country of origin confirmed on quote
We confirm stock, country of origin and compliance before any order — no payment up front.
Tech specs
Specifications
| Product Type | Infrared Illuminator |
| Product Material | Aluminum |
| Product Material | Polycarbonate |
| Height | 6" mm |
| Width | 4.4" mm |
| Depth | 2.6" mm |
| Certifications & Standards | EMC FCC CE VCCI RCM KC |
| Compatibility | Hanhwa Techwin Wisenet TNU-6320 Network Positioning Camera |
| Device Supported | Network Camera |
| Additional Information | OPERATIONAL: LED Type: IR LED Distance Performance: 200m (656.17ft) Angle: 25° Wavelength: 850nm Control: Via remote control day&night photocell sensitivity COMMUNICATION: Between Camera & Illuminator: RS-485 9600bps Illuminator Identification: Fixed address 1 ELECTRICAL: Power: 24V AC (±10%) Power Consumption: Max. light : 24 W ENVIRONMENTAL: Operational Temperature: -40°C ~ +60°C (-40°F ~ 140°F) Ingress Protection: IP67 |
| Weight (Approximate) | 1.98 lb g |
