Hanwha Vision

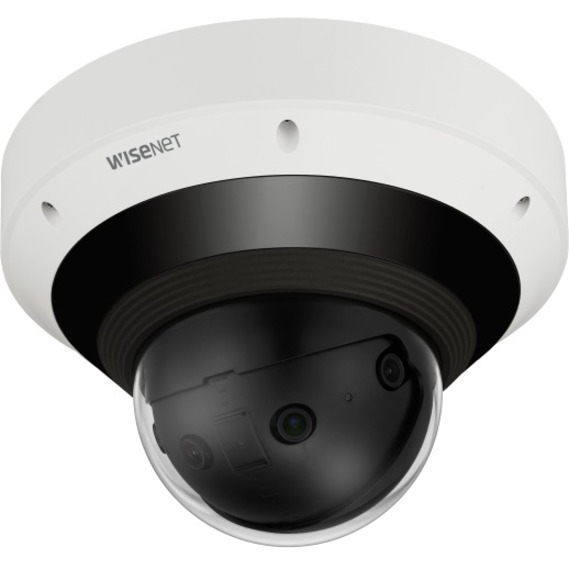

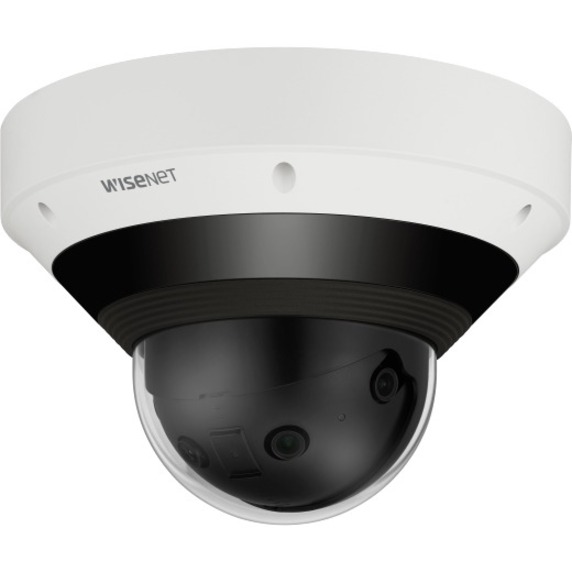

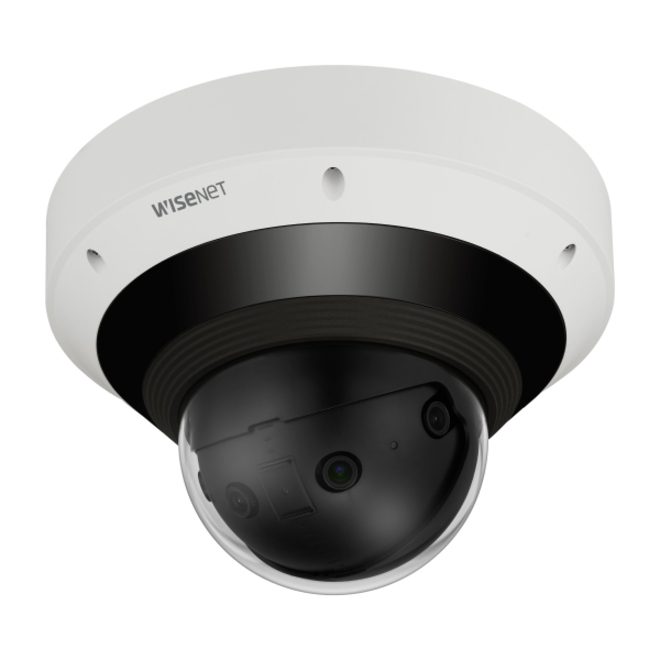

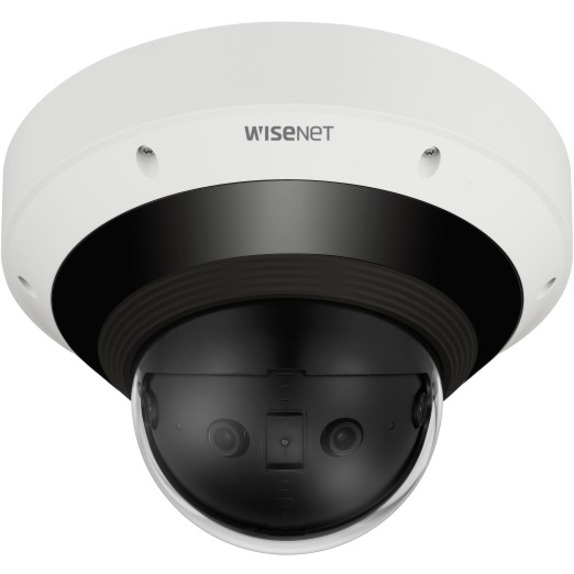

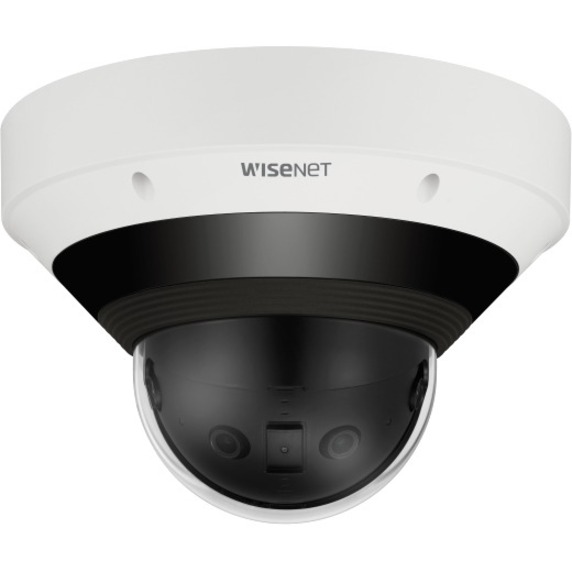

Hanwha Techwin PNM-9031RV 15 Megapixel Outdoor Network Camera - Color - Dome - White - TAA Compliant - 65.62 ft Infrared Night Vision - H.265, H.264, MJPEG, H.264 (MP), H.264 HP - 6720 x 2240 - 4.30 mm Fixed Lens - 20 fps - CMOS - Hanging Mount - IK10 - IP66 - Vandal Resistant
Part number PNM-9031RV
Hanwha Techwin PNM-9031RV 15 Megapixel Outdoor Network Camera - Color - Dome - White - TAA Compliant
NDAA Section 889 / TAA-compliant — country of origin confirmed on quote
We confirm stock, country of origin and compliance before any order — no payment up front.
Highlights
- 15 MP (6,720 x 2,240 resolution)
- 192° panoramic stitching image
- Panoramic stitching, original, crop view channel support
- 20fps at all resolutions (H.265/H.264)
- IR viewable length 20m (65.5ft), WiseIR
- H.265, H.264, MJPEG codec, WiseStream II supported
Tech specs
Specifications
| Product Type | Network Camera |
| Maximum Aperture | f/1.6 |
| Maximum Video Resolution | 6720 x 2240 |
| Maximum Frame Rate | 20 fps fps |
| Maximum Focal Length | 4.30 mm mm |
| Image Sensor Type | CMOS |
| Effective Camera Resolution | 15 Megapixel Pixel |
| Field of View | 192°(H) x 65°(V) |
| Minimum Operating Temperature | -40°F (-40°C) °F |
| Maximum Operating Temperature | 131°F (55°C) °F |
| Network (RJ-45) | Yes |
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/12000 Second |
| Remote Management | Yes |
| Night Vision | Yes |
| HD Recording | Yes |
| Lens Included | Yes |
| Night Vision Distance | 65.62 ft mm |
| Storage Type | Memory Card |
| TAA Compliant | Yes |
| Indoor/Outdoor | Outdoor |
| Product Color | White |
| Number of Sensors | 4 |
| Color Family | White |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Night Vision Type | Infrared |
| Maximum Operating Humidity | 95% % |
| Diameter | 10" mm |
| Height | 6.7" mm |
| Width | 10" mm |
| Color Supported | Color |
| Connectivity Technology | Wired |
| Product Series | P |
| Durability | Vandal Resistant |
| Features | Audio Detection |
| Features | Motion Detection |
| Features | Day/Night |
| Features | Back Light Compensation (BLC) |
| Features | Wide Dynamic Range |
