Hanwha Vision

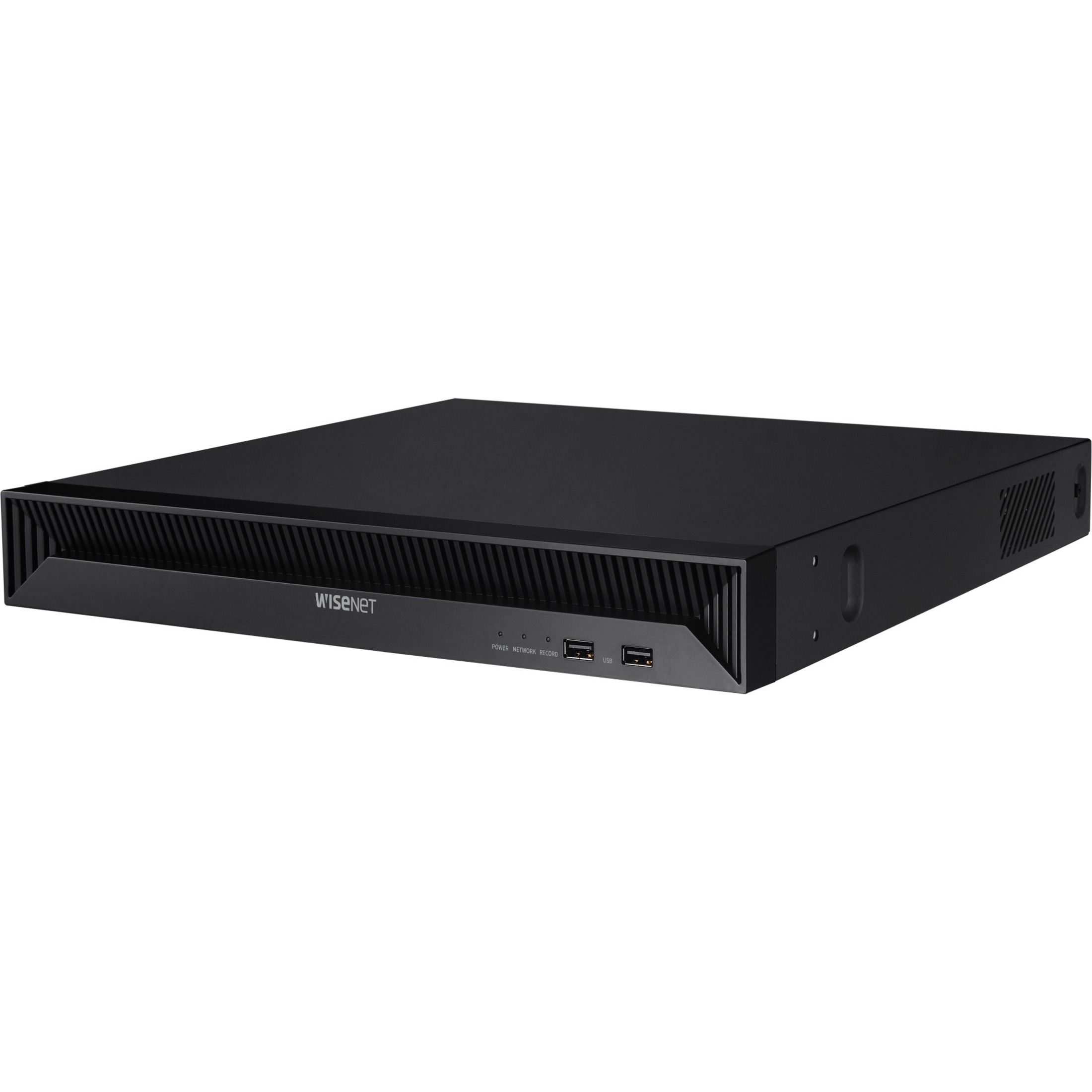

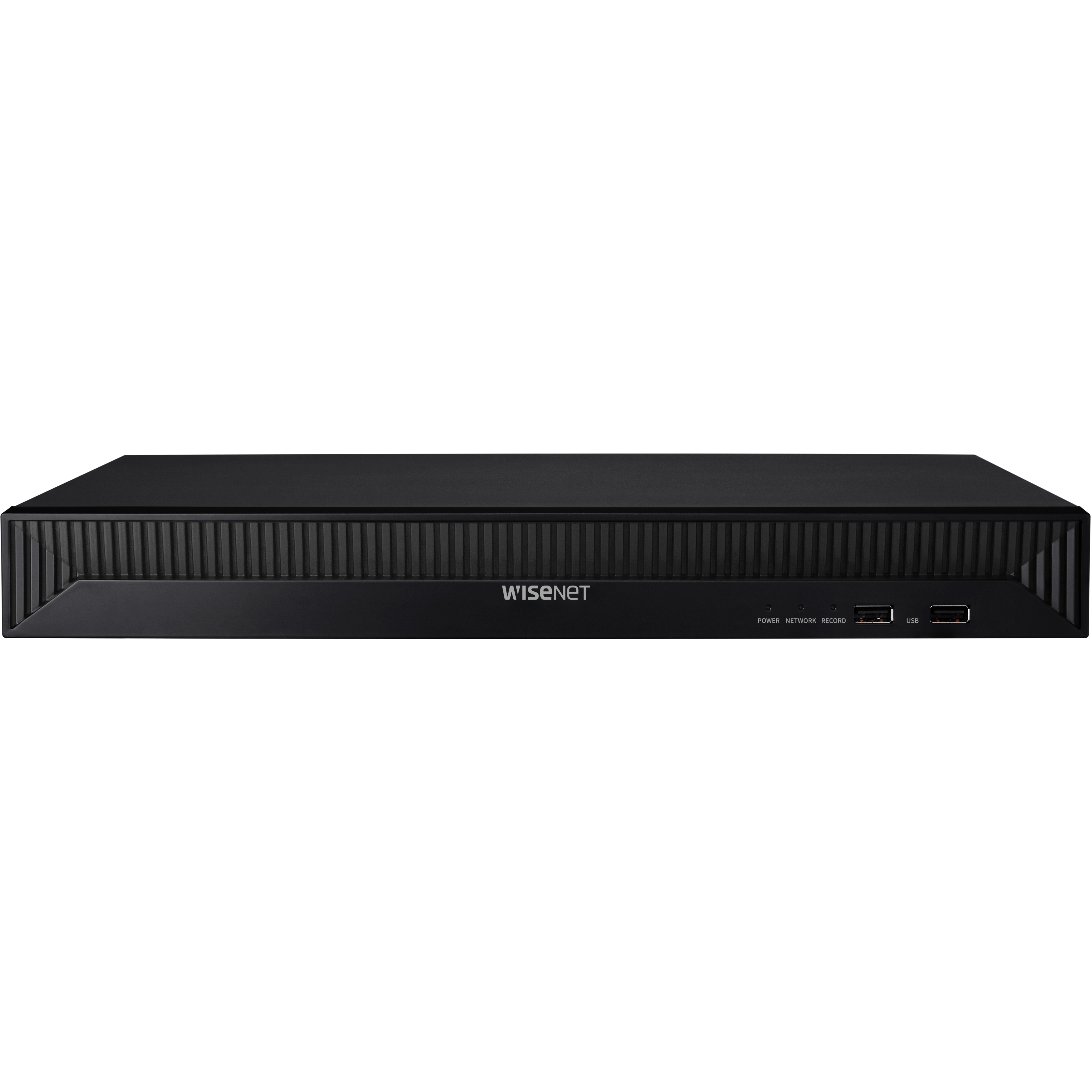

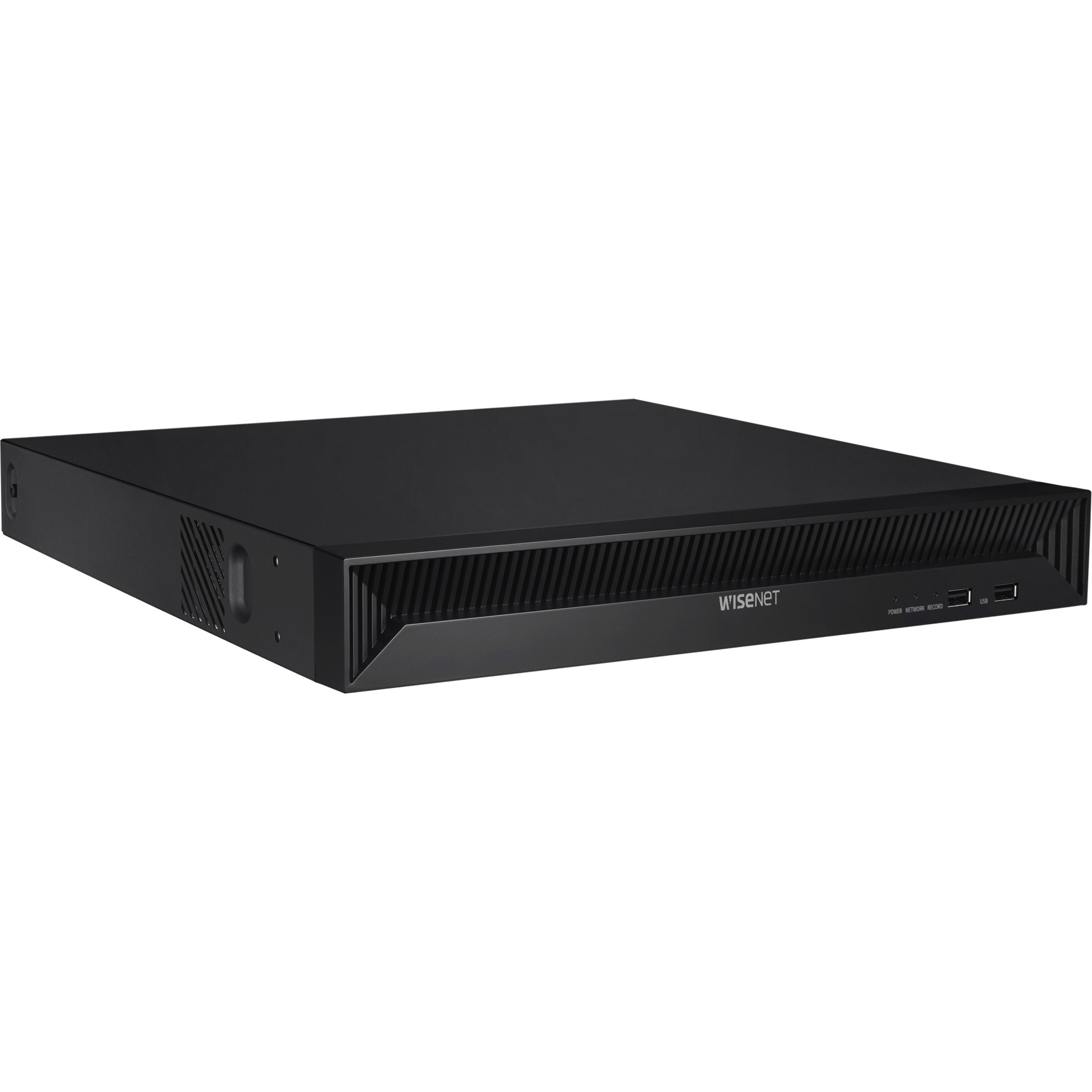

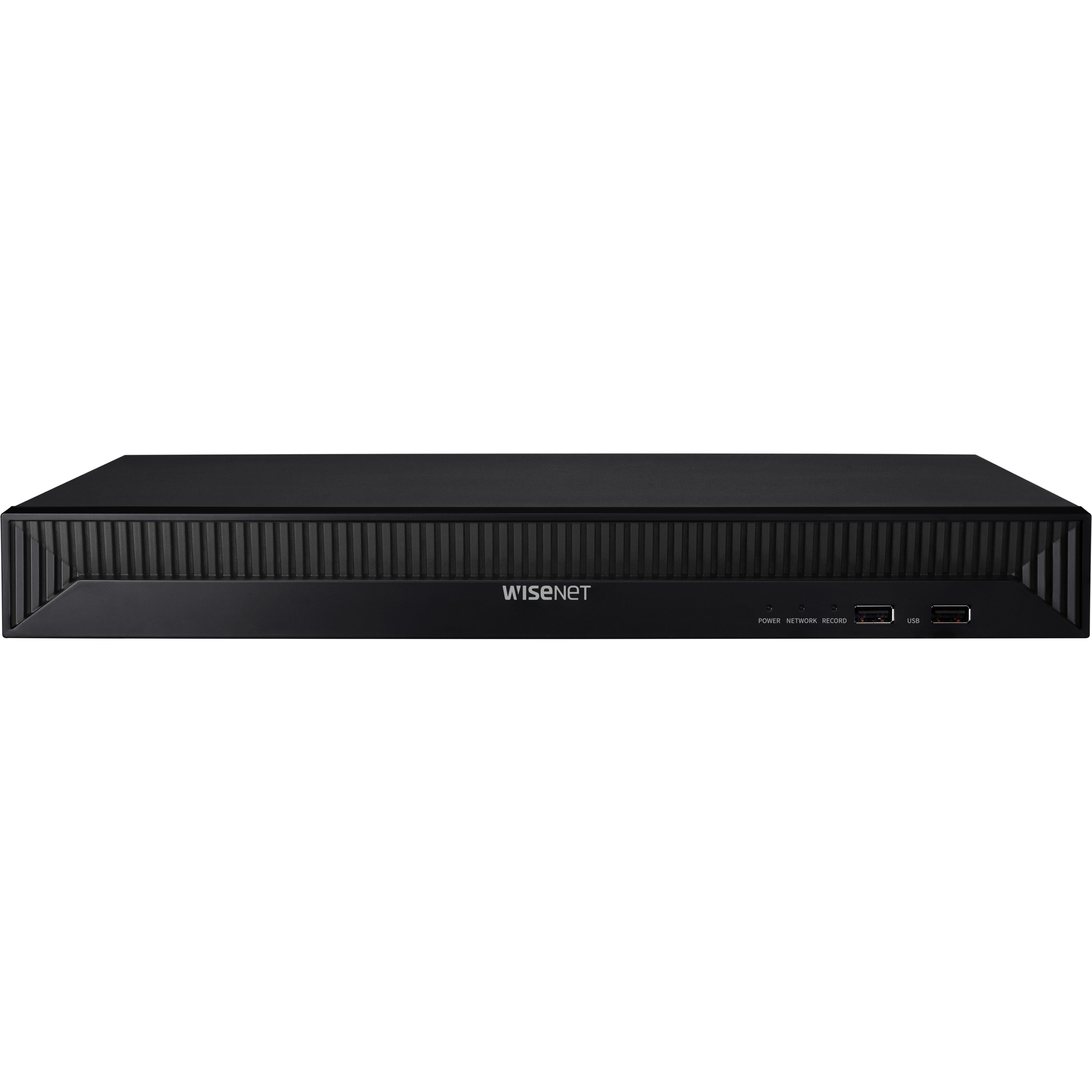

Wisenet 16 CH PoE NVR - Network Video Recorder - HDMI
Part number QRN-1630S
Wisenet 16 CH PoE NVR
NDAA Section 889 / TAA-compliant — country of origin confirmed on quote
We confirm stock, country of origin and compliance before any order — no payment up front.
Highlights
- Up to 16 channels, 8 megapixel supported
- H.265, H.264, MJPEG codec supported
- 128Mbps network camera recording
- Plug & play by 16 PoE ports (POE Budget 130W)
- Maximum 2 HDDs (up to 10Tb each) supported
- HDMI/VGA local monitor
Tech specs
Specifications
| Product Type | Video Surveillance Station |
| Limited Warranty | 3 Year Year |
| Connectivity Technology | Wired |
| Product Model | QRN-1630S |
| Power Consumption | 200 W W |
| Video Formats | H.265 |
| Video Formats | H.264 |
| Video Formats | Motion JPEG |
| Maximum Resolution | 8MP |
| Country of Origin | China |
| Height | 2" mm |
| Width | 14.6" mm |
| Depth | 12.6" mm |
| Maximum Frame Rate | 960 fps fps |
| Ethernet | Yes |
| USB | Yes |
| HDMI | Yes |
| Remote Management | Yes |
| HD Recording | Yes |
| Total Number of Channels | 16 |
| Total Number of Audio In Ports | 1 |
| Total Number of Audio Out Ports | 1 |
| System Components | Network Video Recorder |
| NVR Weight | 6.33 lb g |
