Hanwha Vision

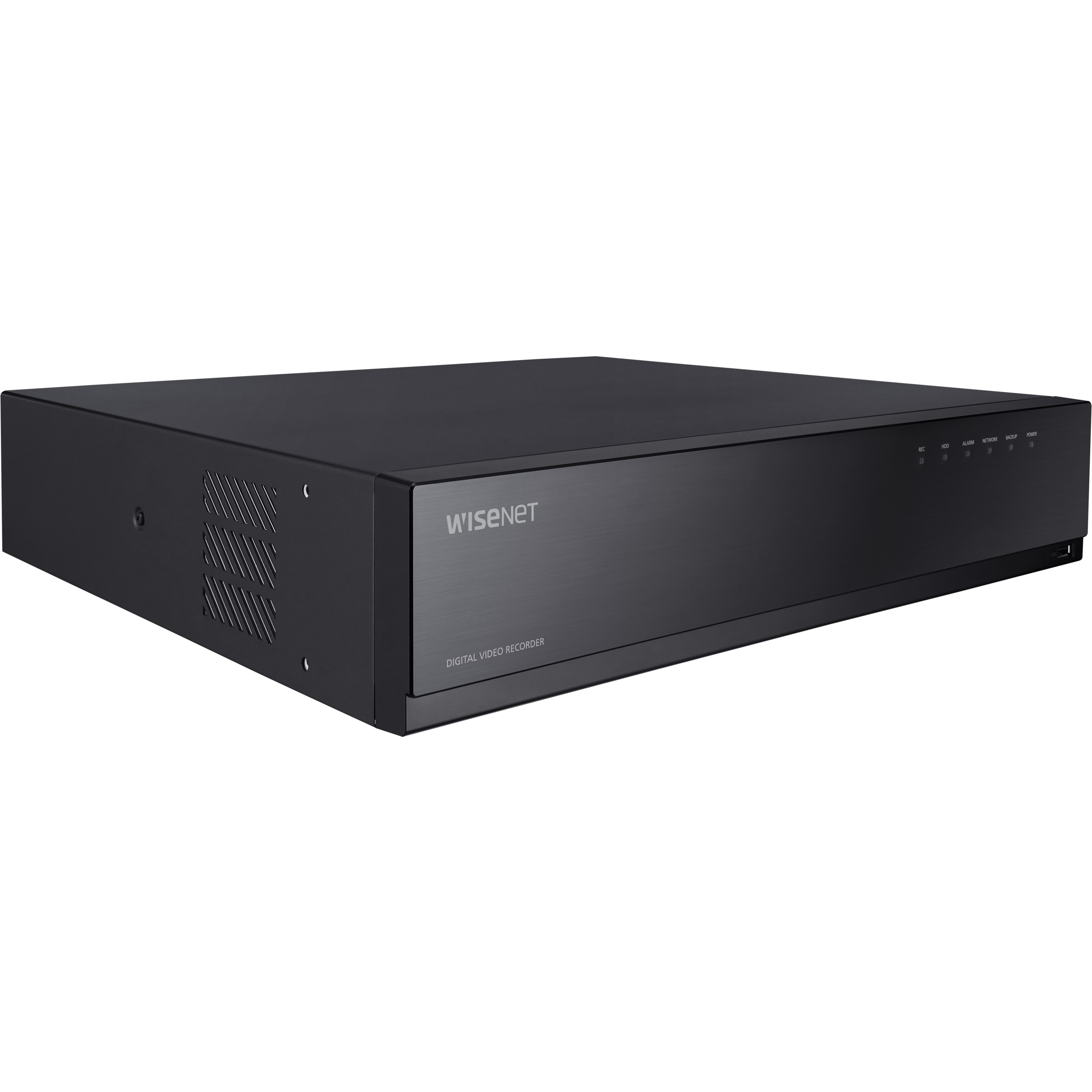

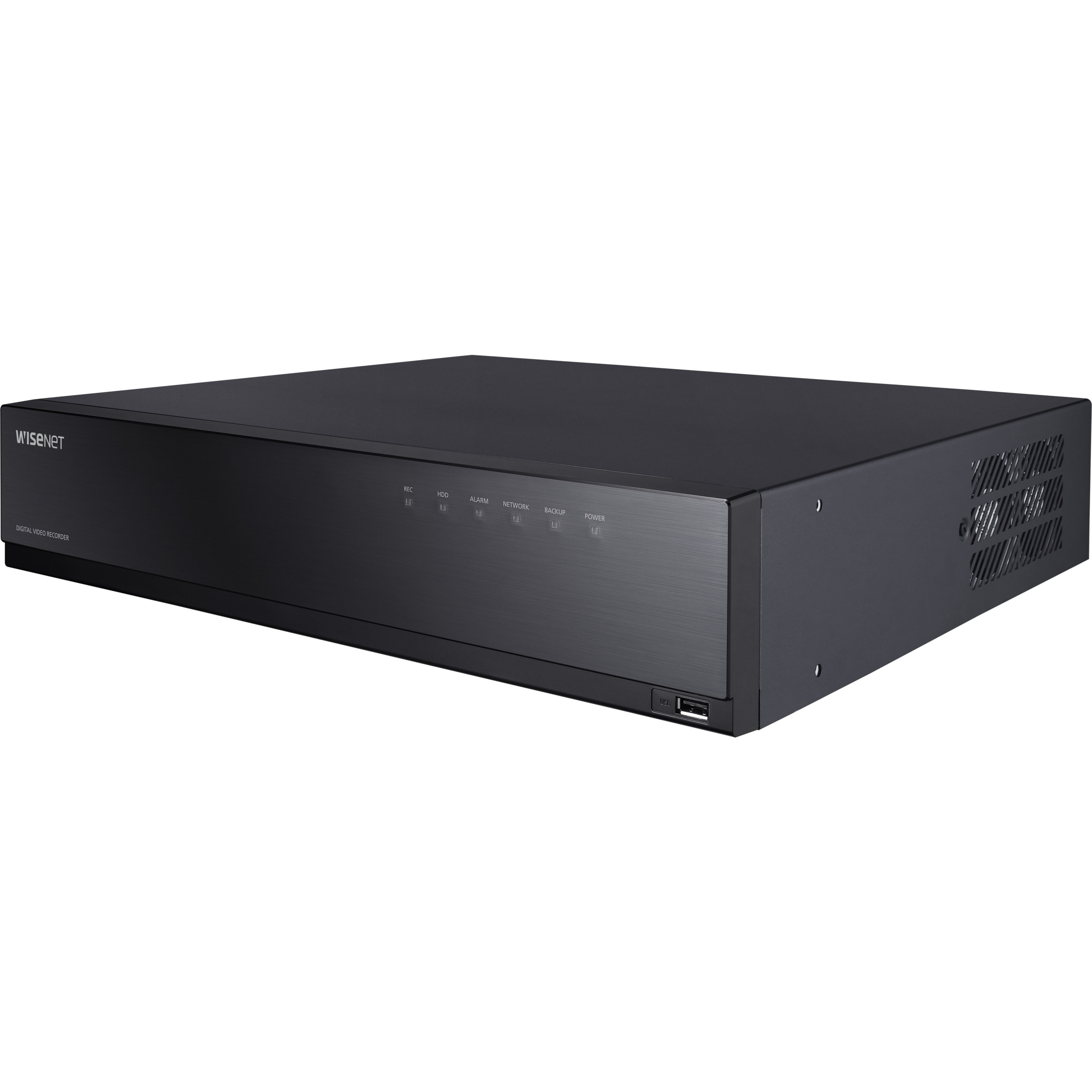

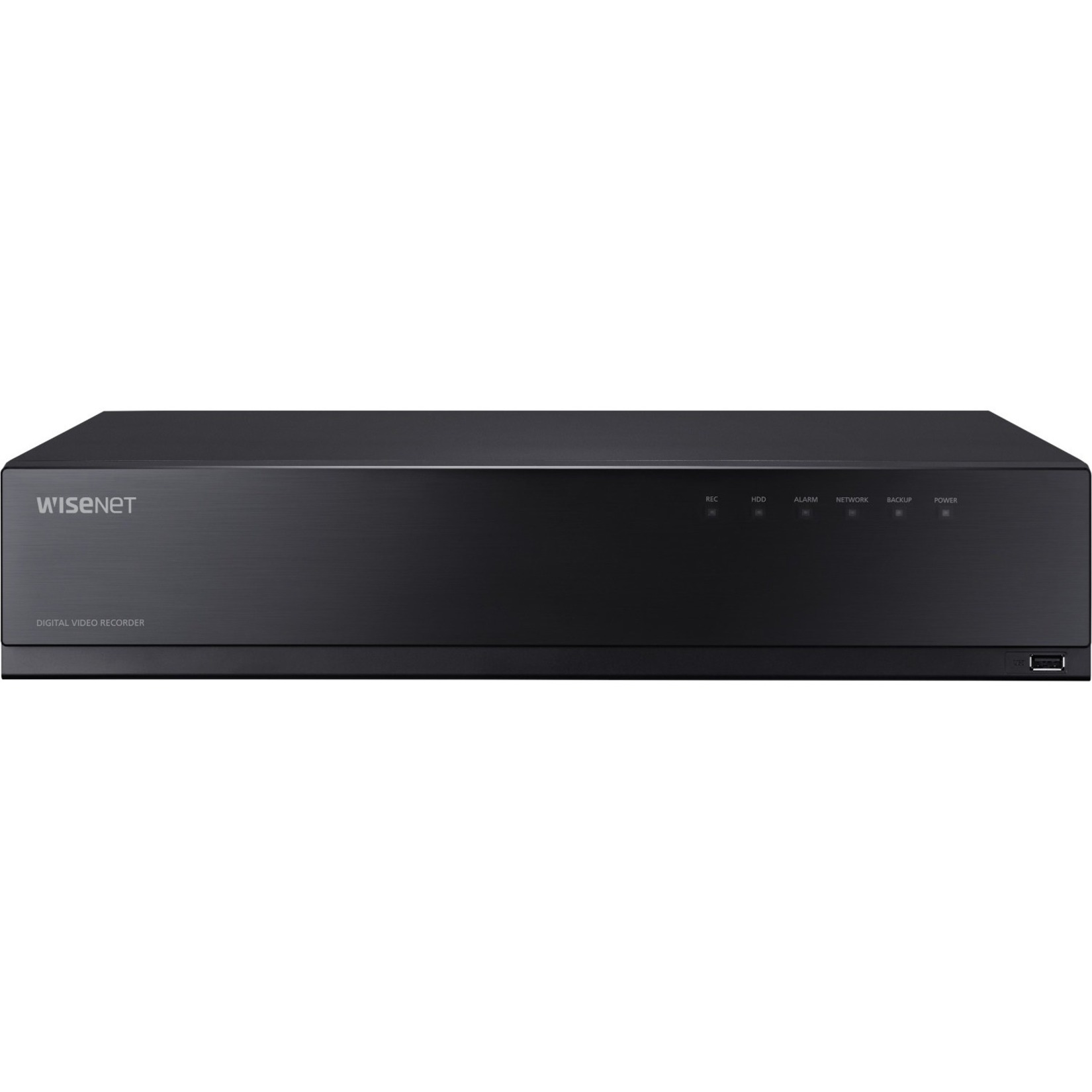

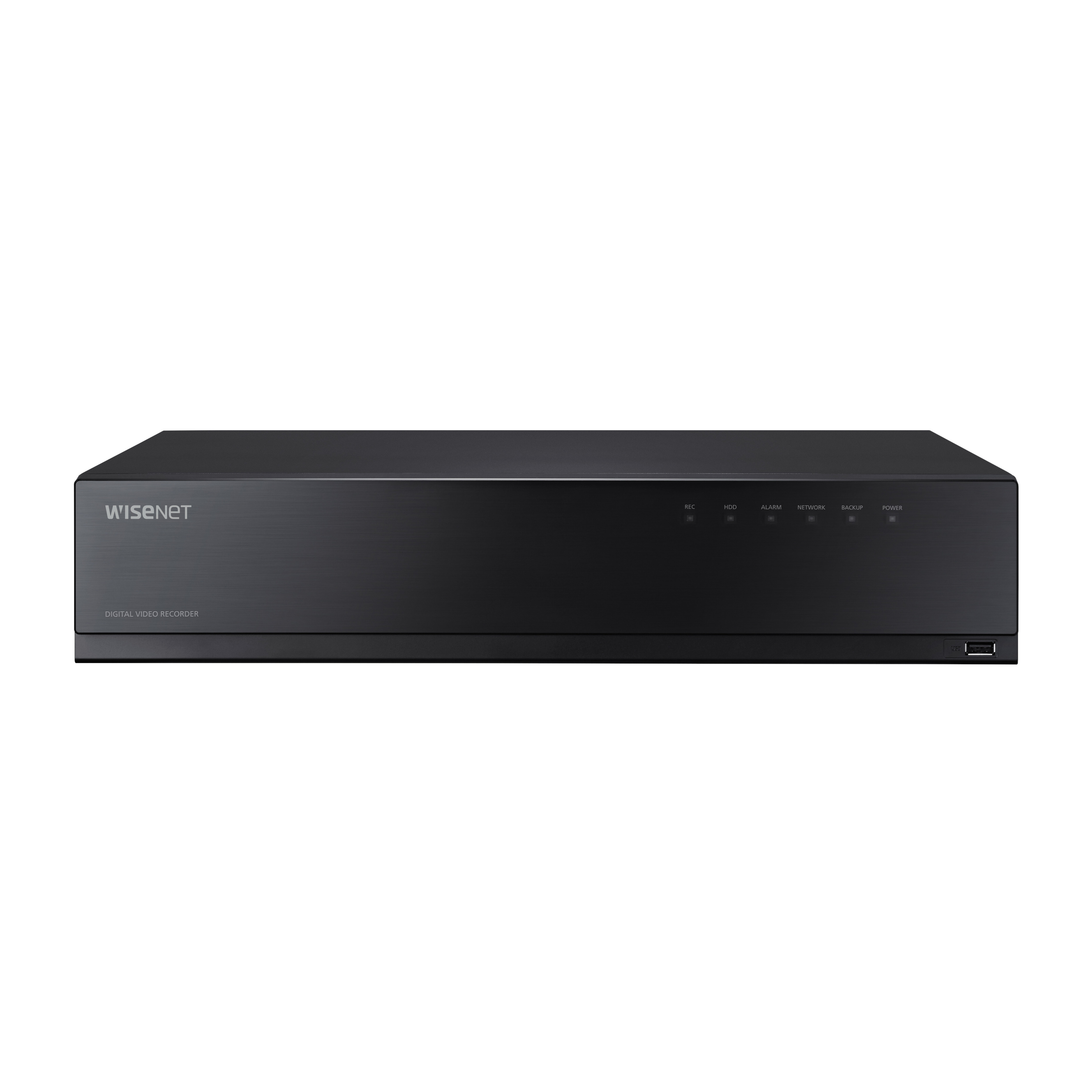

Wisenet 16CH Pentabrid DVR - 24 TB HDD - Digital Video Recorder - HDMI - 4K Recording
Part number HRX-1635-24TB
Wisenet 16CH Pentabrid DVR - 24 TB HDD
NDAA Section 889 / TAA-compliant — country of origin confirmed on quote
We confirm stock, country of origin and compliance before any order — no payment up front.
Highlights
- 5-in-1 16CH Pentabrid DVR
- AHD/HDTVI/HDCVI/CVBS/IP inputs
- Total 18 Channels (Analog Maximum 16 channel + Network Maximum 2 channels supported), up to 8MP
- H.265, H.264, MJPEG codec
- Recording Analog Camera up 8MP(15fps), 5MP(20fps), 4MP(30fps), 2MP(30fps),1MP(30fps), 960H(or 720H)(30fps) , per channel
- Recording Bandwidth Max. 128Mbps, Playback Bandwidth 32Mbps.
Tech specs
Specifications
| Product Type | Video Surveillance Station |
| Recording Formats | 4K |
| Limited Warranty | 3 Year Year |
| Connectivity Technology | Wired |
| Product Model | HRX-1635 |
| Power Consumption | 200 W W |
| Video Formats | H.265 |
| Video Formats | H.264 |
| Video Formats | Motion JPEG |
| Maximum Resolution | 8MP |
| Height | 3.5" mm |
| Width | 17.3" mm |
| Depth | 15.1" mm |
| Hard Drive Capacity | 24 TB Byte |
| Maximum Frame Rate | 30 fps fps |
| Ethernet | Yes |
| USB | Yes |
| HDMI | Yes |
| Remote Management | Yes |
| Video Signal Format | PAL |
| Video Signal Format | NTSC |
| HD Recording | Yes |
| Composite Video In | Yes |
| Composite Video Out | Yes |
| Number of VGA Out | 1 |
| Total Number of Channels | 16 |
| Total Number of Audio In Ports | 4 |
| Total Number of Audio Out Ports | 1 |
| DVR Weight | 16.98 lb g |
| System Components | Digital Video Recorder |
