Hanwha Vision

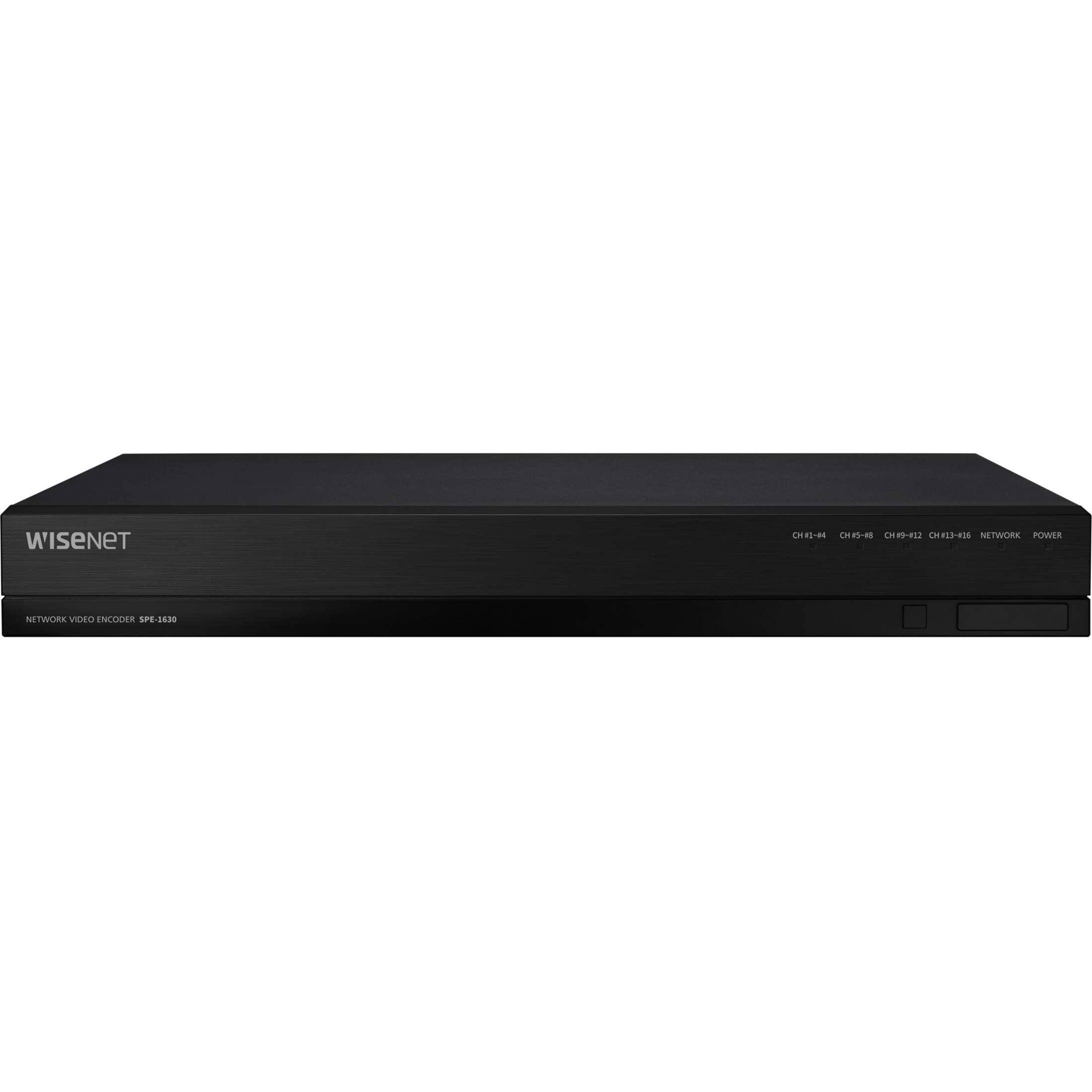

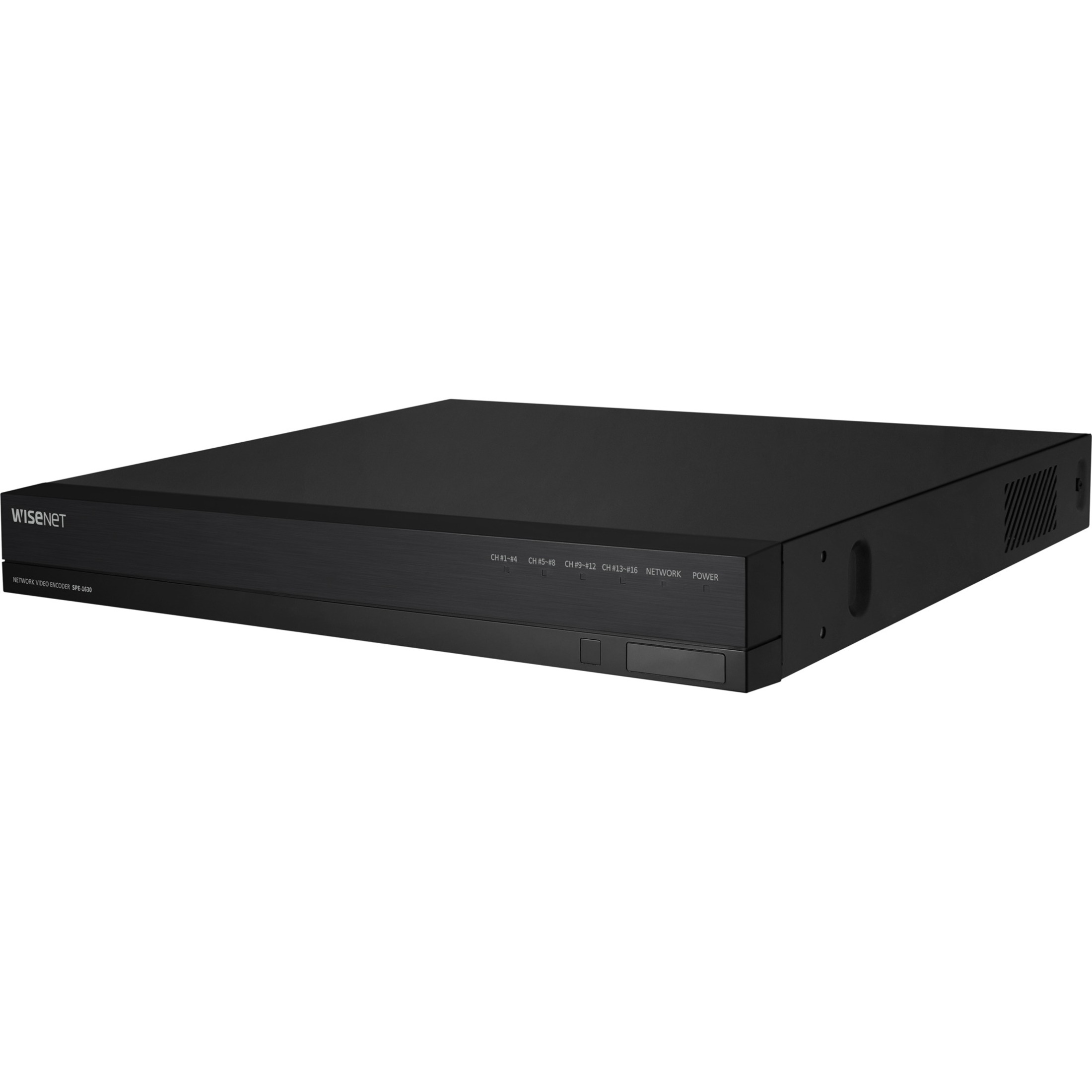

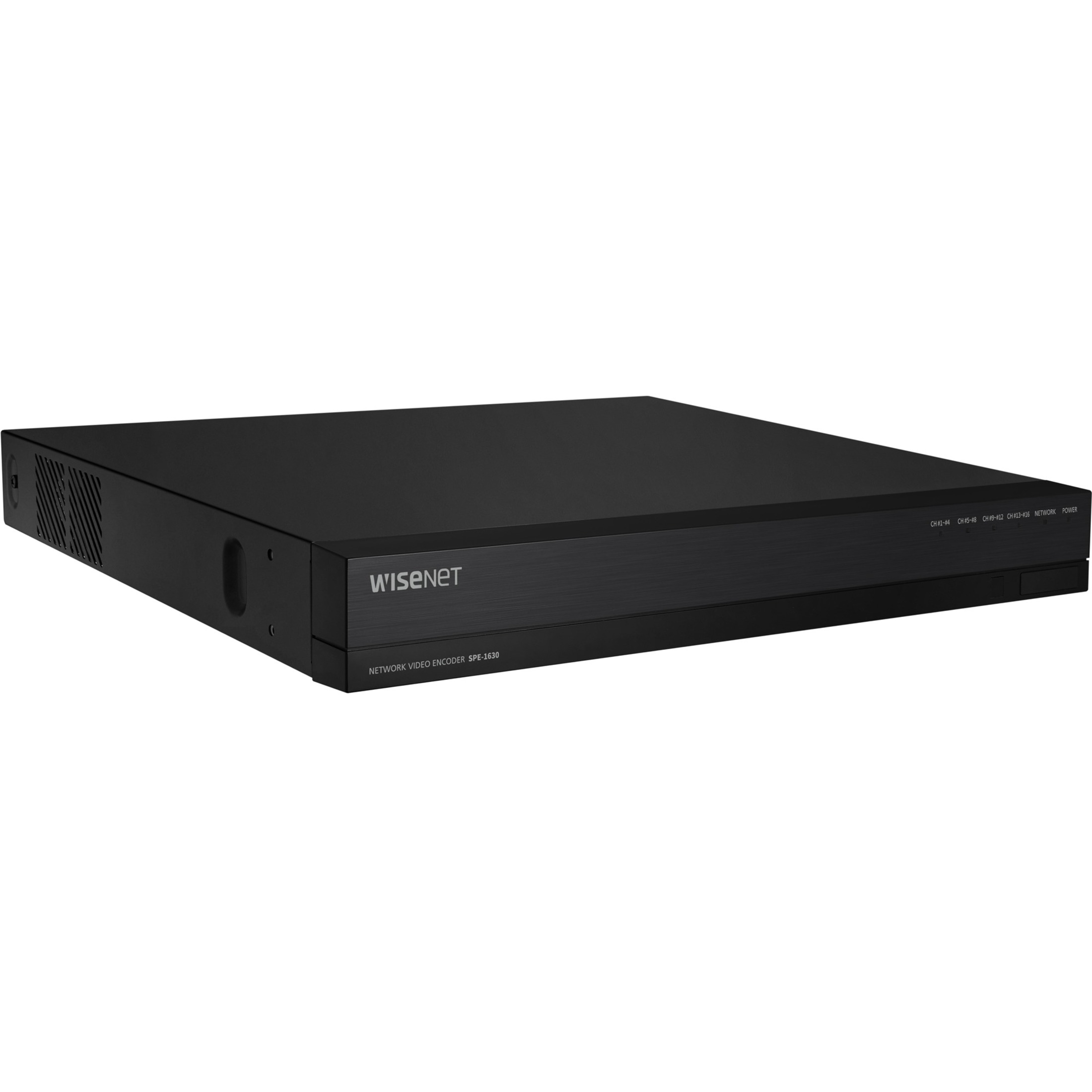

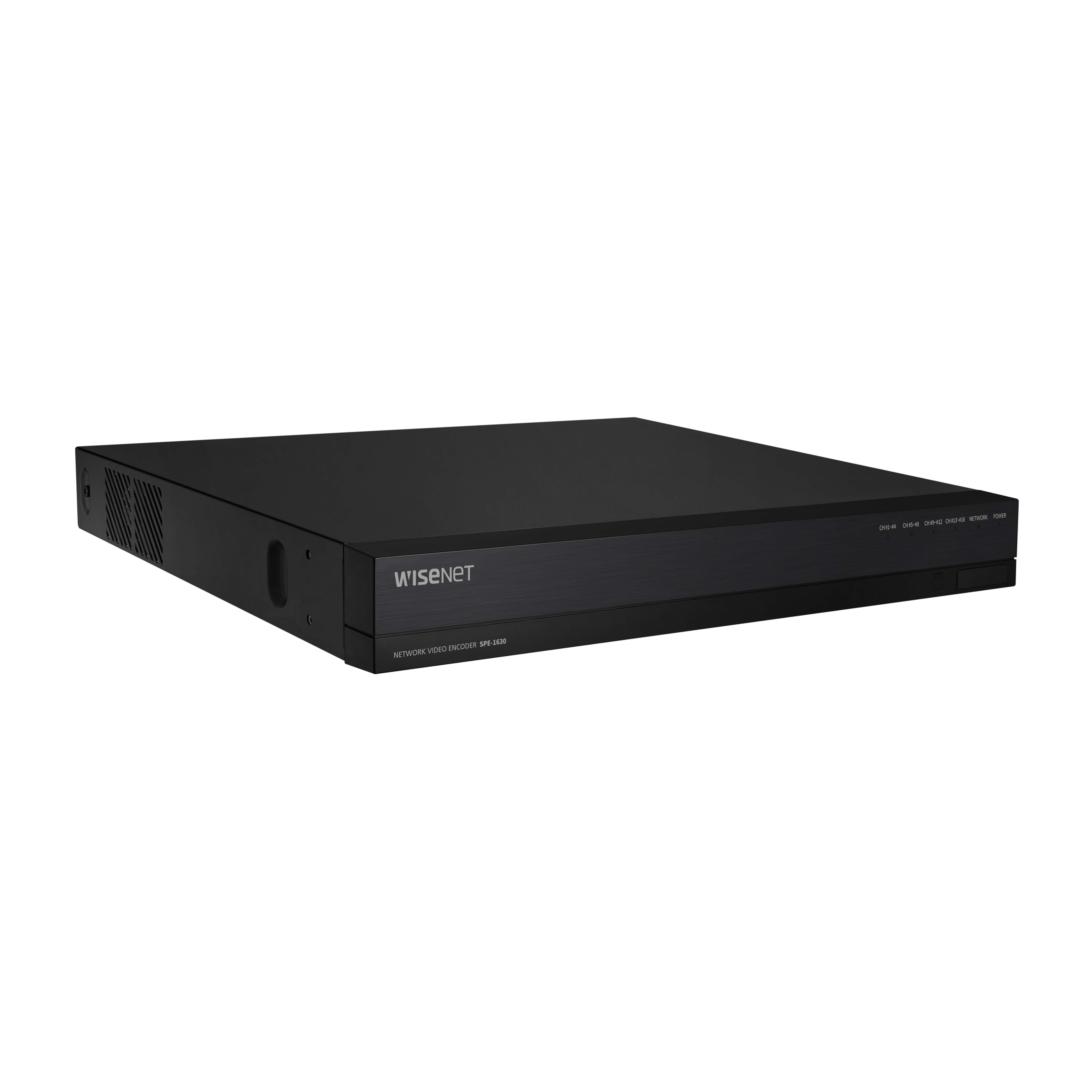

Wisenet 16CH Video Encoder - Video Encoder - HDMI - Full HD Recording
Part number SPE-1630
Wisenet 16CH Video Encoder
NDAA Section 889 / TAA-compliant — country of origin confirmed on quote
We confirm stock, country of origin and compliance before any order — no payment up front.
Highlights
- Max. 5MP resolution
- Max. 12fps@5MP, 30fps@1080p
- H.265, H.264, MJPEG codec support
- Multiple streaming (up to 3 profiles per CH)
- 1 RJ-45 10/100/1000 Base-T
Tech specs
Specifications
| Product Type | Video Surveillance Station |
| Recording Formats | Full HD |
| Weight (Approximate) | 5.11 lb g |
| Connectivity Technology | Wired |
| Product Model | SPE-1630 |
| Power Consumption | 20 W W |
| Video Formats | Motion JPEG |
| Video Formats | H.265 |
| Video Formats | H.264 |
| Video Formats | H.264 (MPEG-4 Part 10/AVC) |
| Video Formats | H.265M |
| Video Formats | H.264M |
| Video Formats | H.264B |
| Video Formats | H.264H |
| Maximum Resolution | 5MP |
| Height | 1.7" mm |
| Width | 14.6" mm |
| Depth | 12.6" mm |
| Maximum Frame Rate | 30 fps fps |
| Ethernet | Yes |
| HDMI | Yes |
| Remote Management | Yes |
| Video Signal Format | NTSC |
| Video Signal Format | PAL |
| HD Recording | Yes |
| Composite Video In | Yes |
| Total Number of Channels | 16 |
| Total Number of Audio In Ports | 4 |
| Total Number of Audio Out Ports | 1 |
| System Components | Video Encoder |
