Hanwha Vision

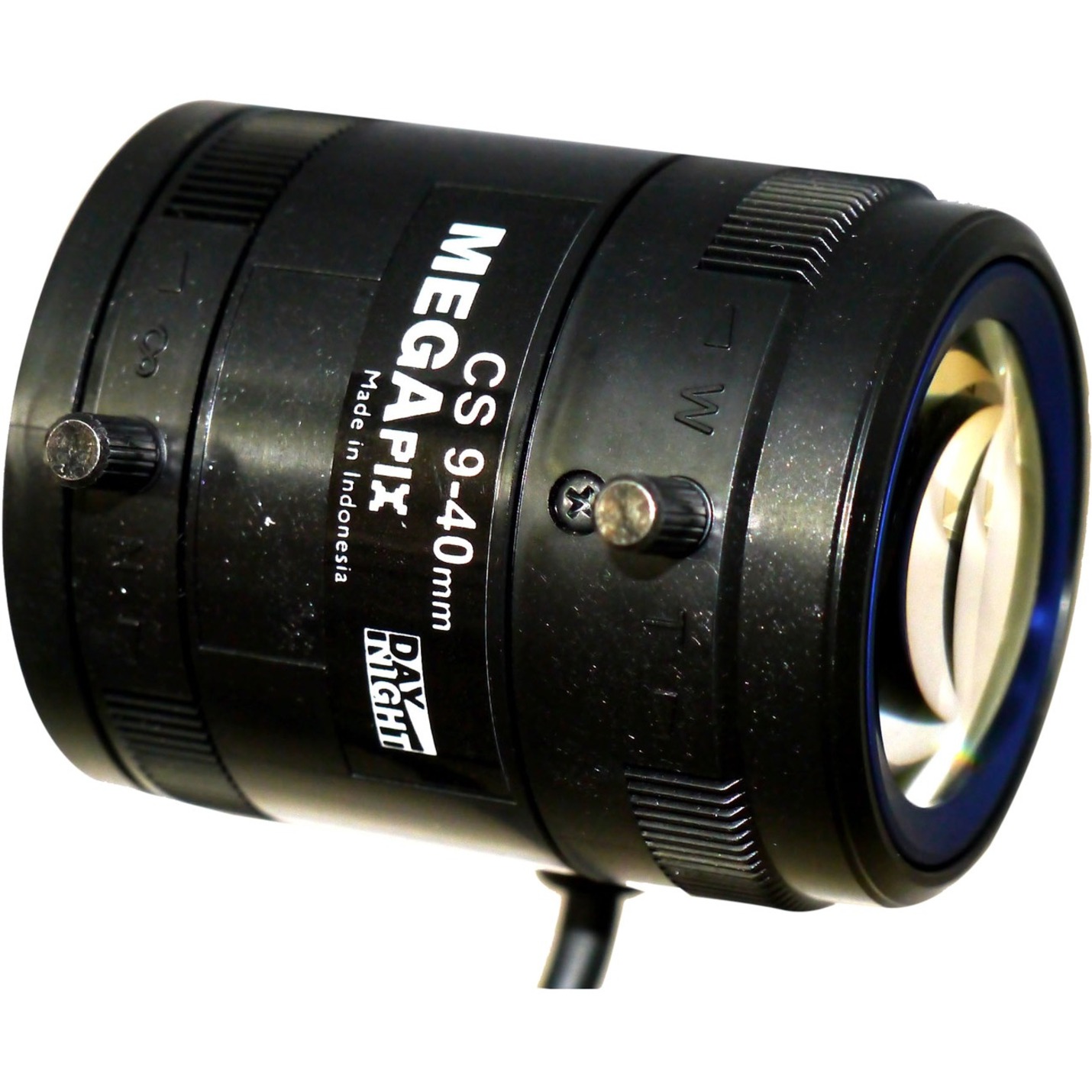

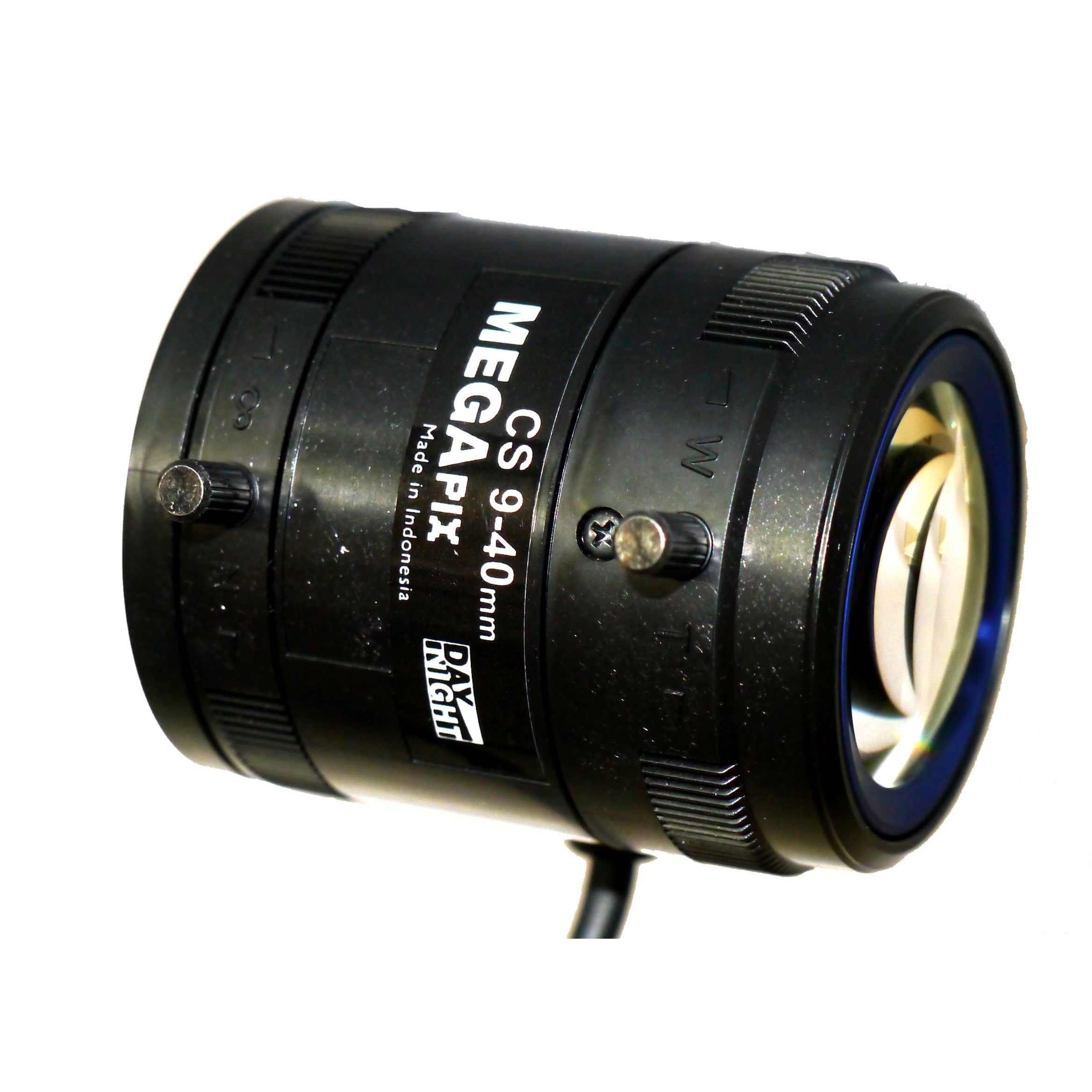

Wisenet SLA-T-M940DN - 9 mm to 40 mmf/1.5 - Varifocal Lens for CS Mount - Designed for Surveillance Camera - 4.4x Optical Zoom - 1.9" Length - 2.2" Diameter
Part number SLA-T-M940DN
Wisenet SLA-T-M940DN - 9 mm to 40 mmf/1.5 - Varifocal Lens for CS Mount
NDAA Section 889 / TAA-compliant — country of origin confirmed on quote
We confirm stock, country of origin and compliance before any order — no payment up front.
Highlights
- High resolution optics
- True 4K resolution, 12MP support
- 9-40mm varifocal lens
- DC Auto Iris
- IR corrected for true Day/Night operation
- CS-mount with slip ring for ease of installation and positioning
Tech specs
Specifications
| Product Type | Lens |
| Maximum Aperture | f/1.5 |
| Maximum Focal Length | 40 mm mm |
| Minimum Focal Length | 9 mm mm |
| Field of View | 1/3" Sensor Horizontal: 30 to 7.1° Vertical: 22 to 5.3° Diagonal: 38 to 8.8° 1/2.7" Sensor Horizontal: 37 to 8.6° Vertical: 20 to 4.8° Diagonal: 42 to 9.9° 1/2.5" Sensor Horizontal: 36 to 8.5° Vertical: 27 to 6.3° |
| Autofocus | No |
| Lens Mount Type | CS Mount |
| Iris Type | DC Auto Iris |
| Sensor Size Compatibility | 1/3" |
| Sensor Size Compatibility | 1/2.7" |
| Sensor Size Compatibility | 1/2.5" |
| Diameter | 2.2" mm |
| Optical Zoom | 4.4x x |
| Compatibility | Hanwhasecurity Cameras: XNB-6000 HCB-6000 HCB-6001 HCB-7000 HCB-7000A |
| Length | 1.9" mm |
| Lens Type | Varifocal |
| Product Model | SLA-T-M940DN |
| Application/Usage | Surveillance Camera |
