Hanwha Vision

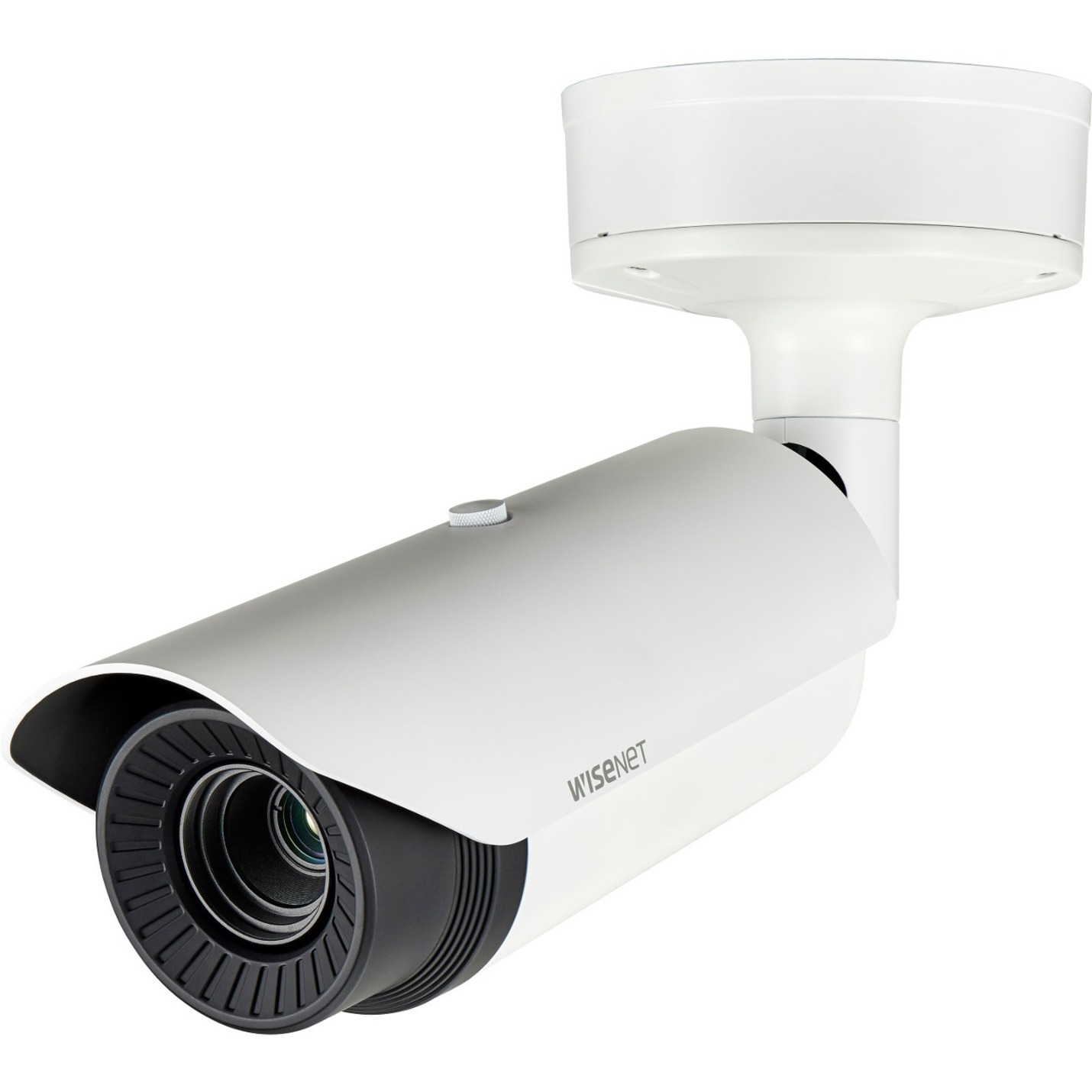

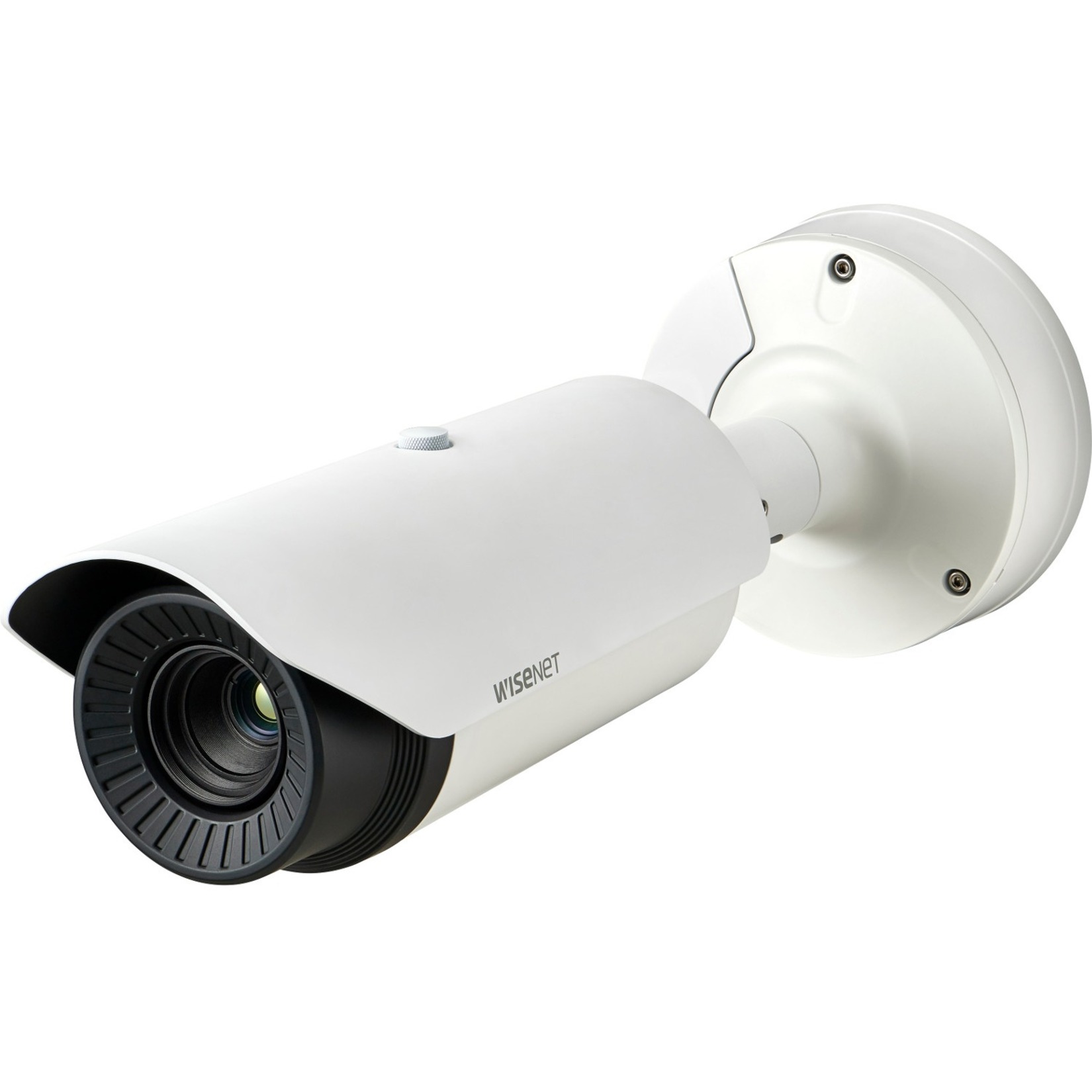

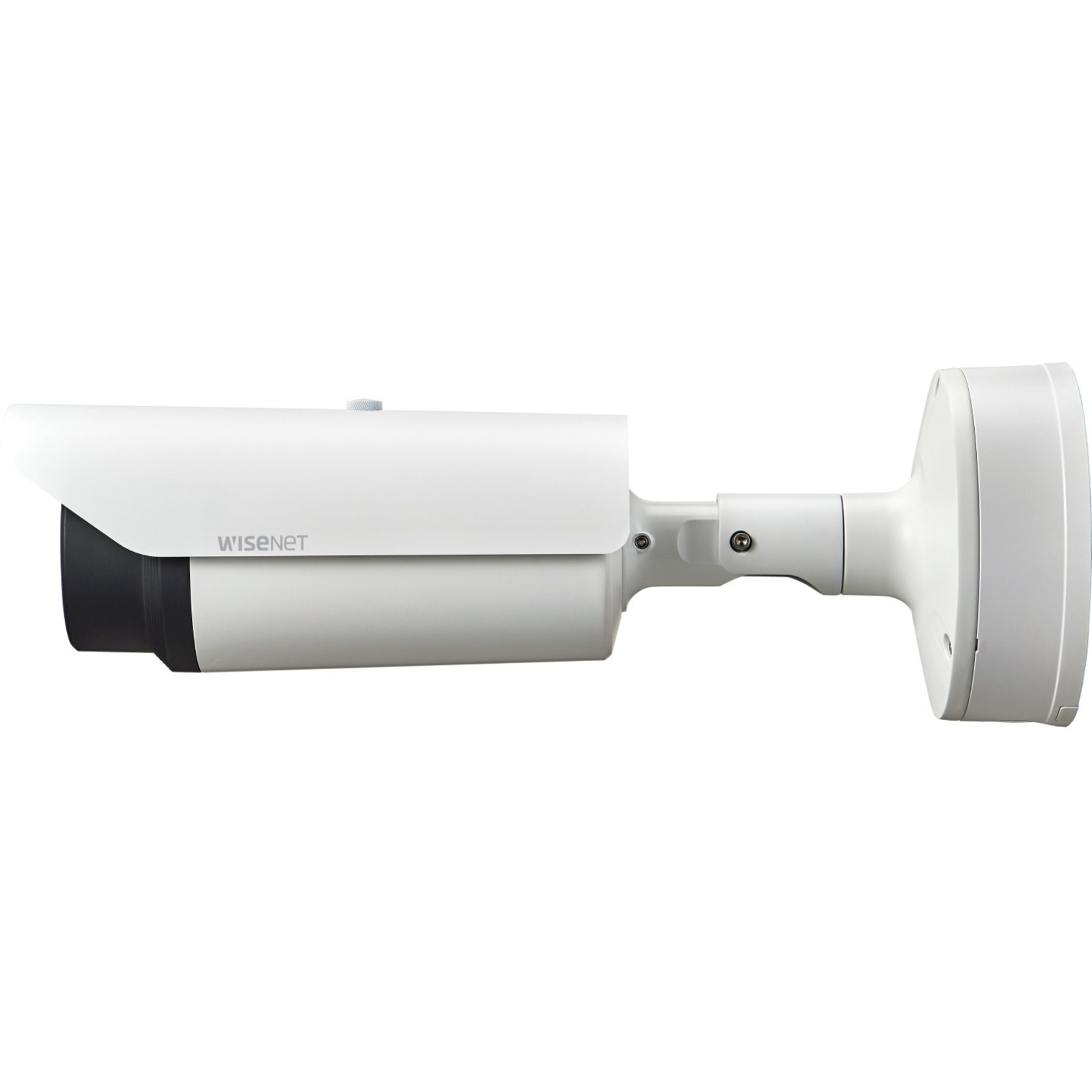

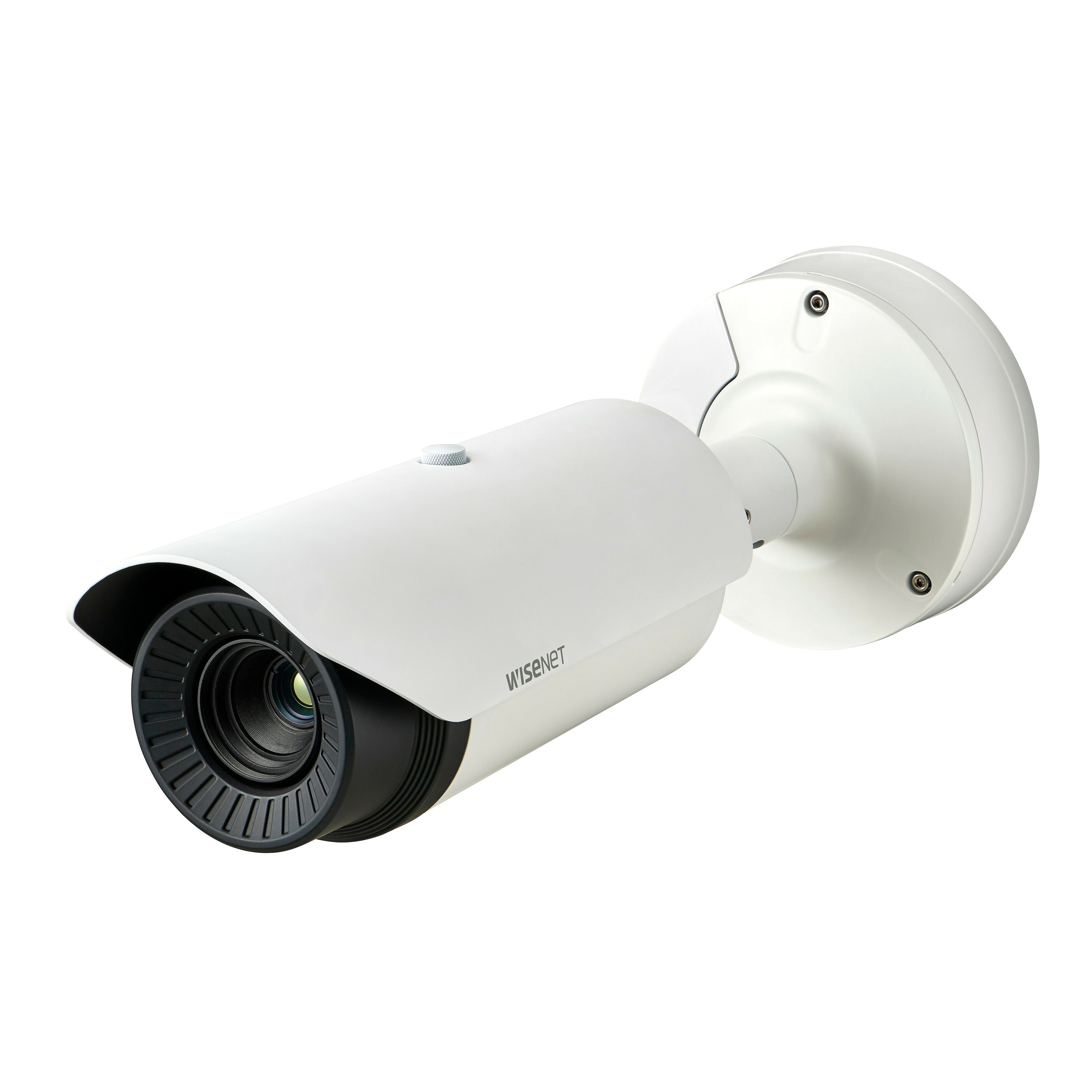

Wisenet TNO-4040TR HD Network Camera - Color - Signal White - H.265, H.264, MJPEG Fixed Lens - 30 fps - Pole Mount - IK10 - IP66
Part number TNO-4040TR
Wisenet TNO-4040TR HD Network Camera - Color - Signal White
NDAA Section 889 / TAA-compliant — country of origin confirmed on quote
We confirm stock, country of origin and compliance before any order — no payment up front.
Highlights
- Max. 640 x 480 resolution support
- Built-in 19mm fixed lens
- H.265, H.264, MJPEG codec
- Max. 30fps@all resolutions (H.265, H.264, MJPEG)

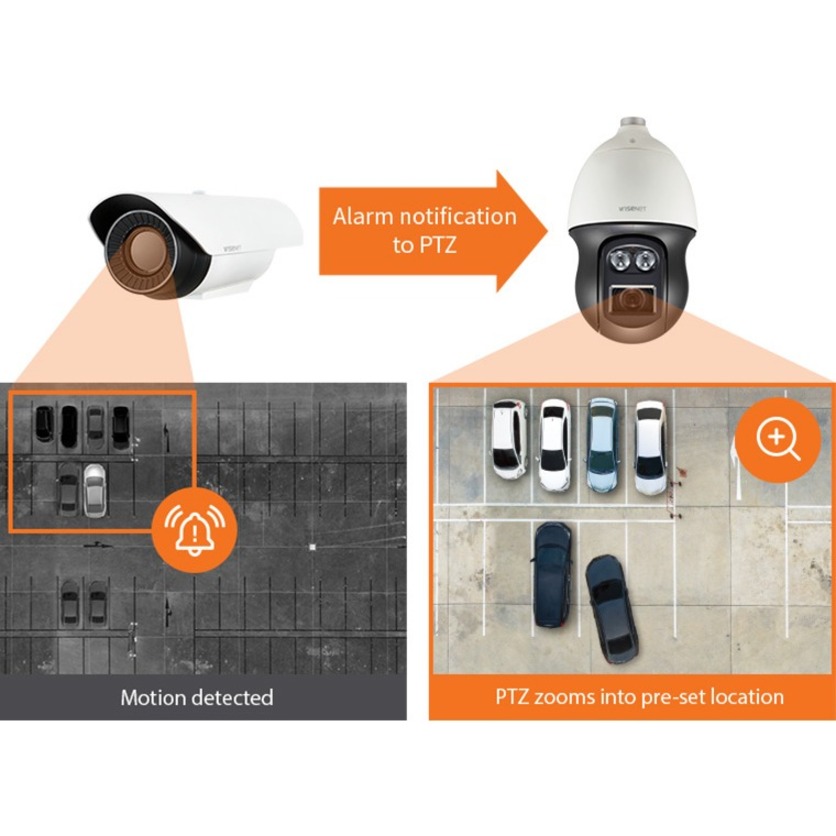

- Motion detection, Handover, Tampering, Loitering
- Directional detection, Audio detection, Sound classification
Tech specs
Specifications
| Product Type | Network Camera |
| Maximum Aperture | f/1 |
| Maximum Frame Rate | 30 fps fps |
| Field of View | H: 32° / V: 24.3° / D: 39.2° |
| Minimum Operating Temperature | -40°F (-40°C) °F |
| Maximum Operating Temperature | 140°F (60°C) °F |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Video Signal Format | NTSC |
| Video Signal Format | PAL |
| HD Recording | Yes |
| Lens Included | Yes |
| Maximum Thermal Focal Length | 0.75" mm |
| Product Color | Signal White |
| Color Family | White |
| Thermal Image Sensor Type | Uncooled Microbolometer |
| Thermal Video Resolution | 640 x 480 |
| Analog Video Signal Format | CVBS |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Maximum Operating Humidity | 90% % |
| Diameter | 4" mm |
| Color Supported | Color |
| Connectivity Technology | Wired |
| Product Series | T |
| Features | Motion Detection |
| Features | Audio Detection |
| Features | Shock Detection |
| Features | Privacy Masking |
| Features | Alarm Triggering |
| Features | Audio Compression |
| Features | HTTPS Encryption |
| Lens Type | Fixed |
| Product Model | TNO-4040TR |
| Mount Type | Pole Mount |
| Video Formats | H.265 |
| Video Formats | H.264 |
| Video Formats | MJPEG |
| Input Voltage | 12 V DC |
| Input Voltage | 24 V AC |
