Hanwha Vision
Wisenet TNV-8011C 5 Megapixel Network Camera - Color - White - H.265, H.264, H.265M, H.265B, H.265H, H.264M, H.264B, H.264H, MJPEG - 2592 x 1944 - 2.30 mm Fixed Lens - 30 fps - CMOS - Corner Mount - IK10 - IP66, IP6K9K - Vandal Resistant
Part number TNV-8011C

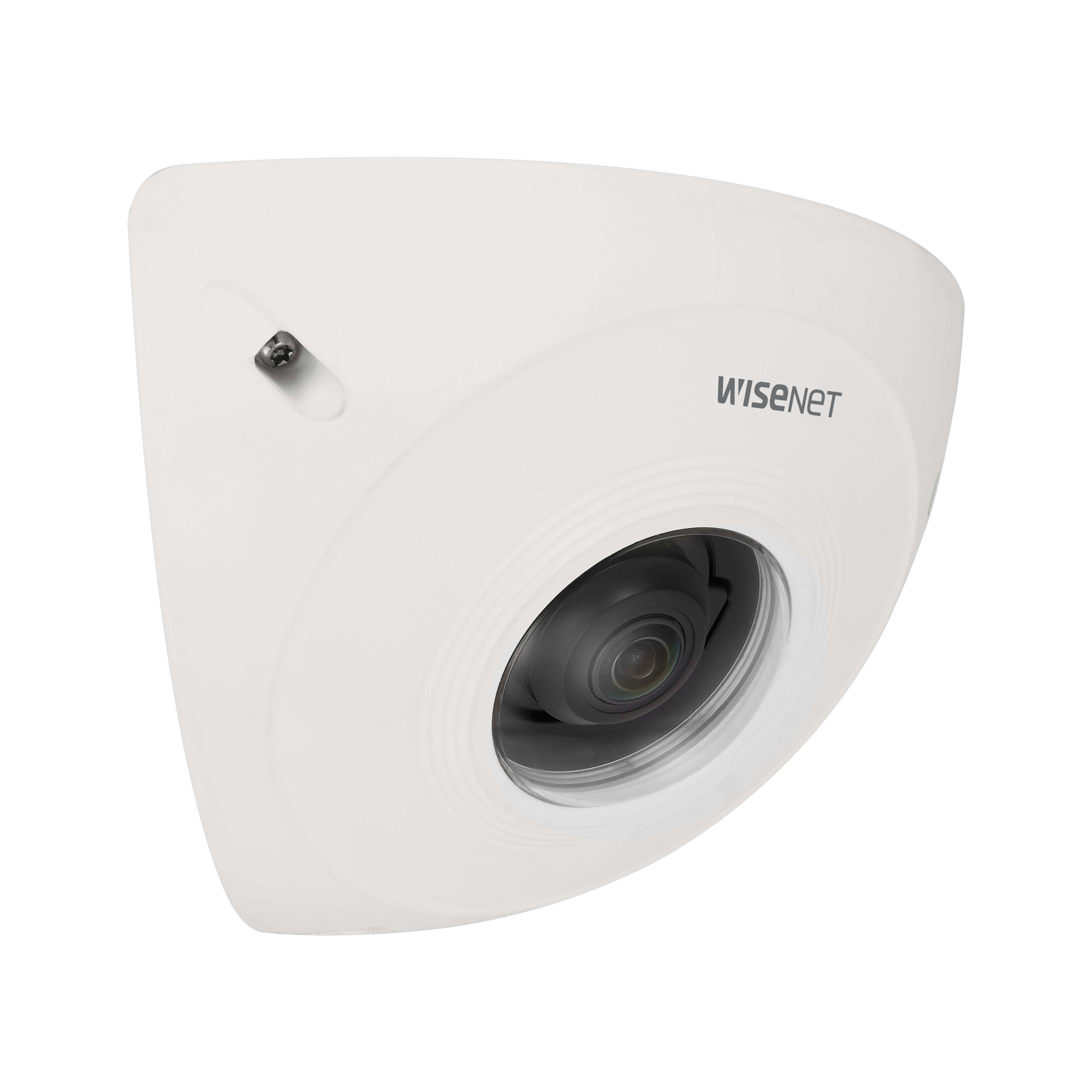

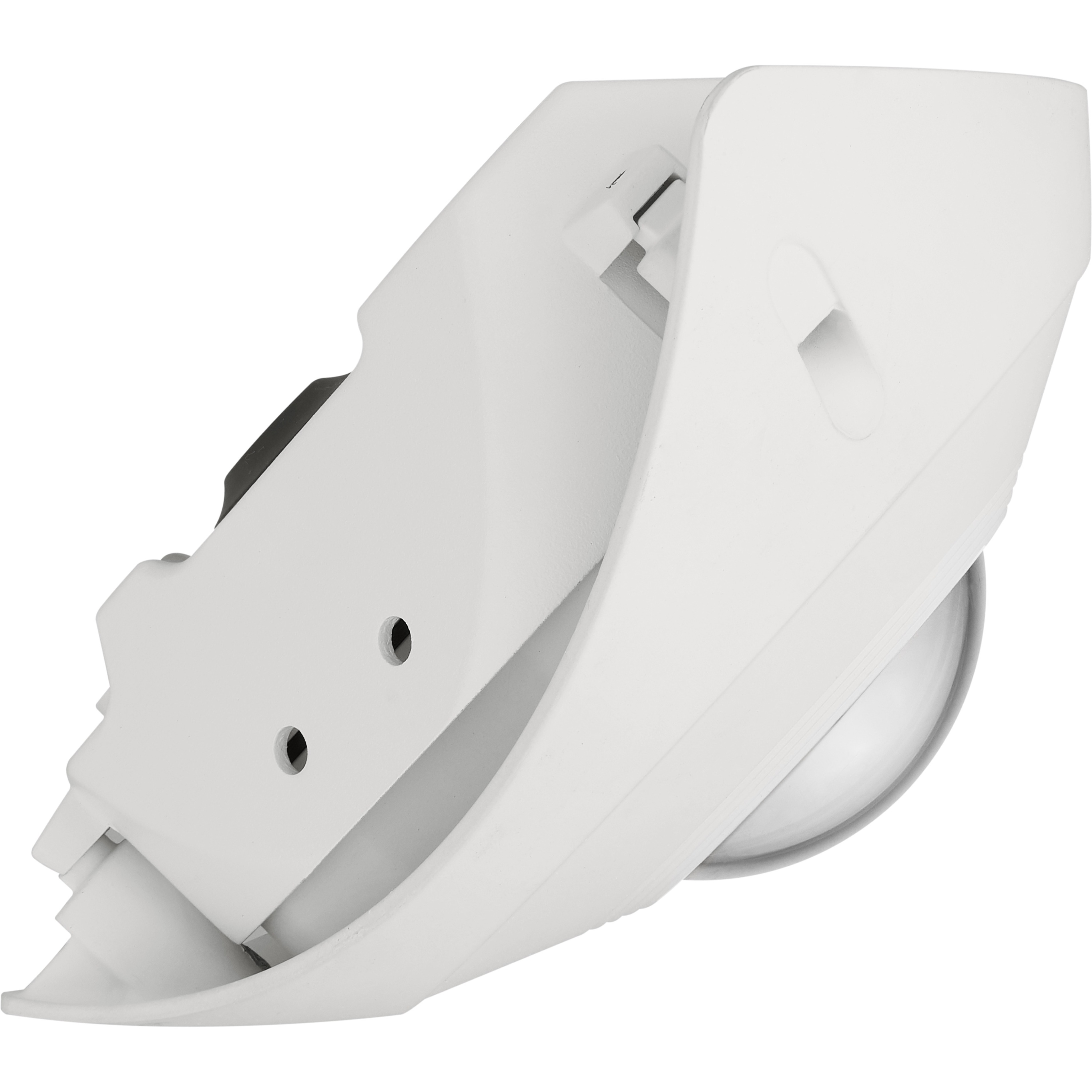

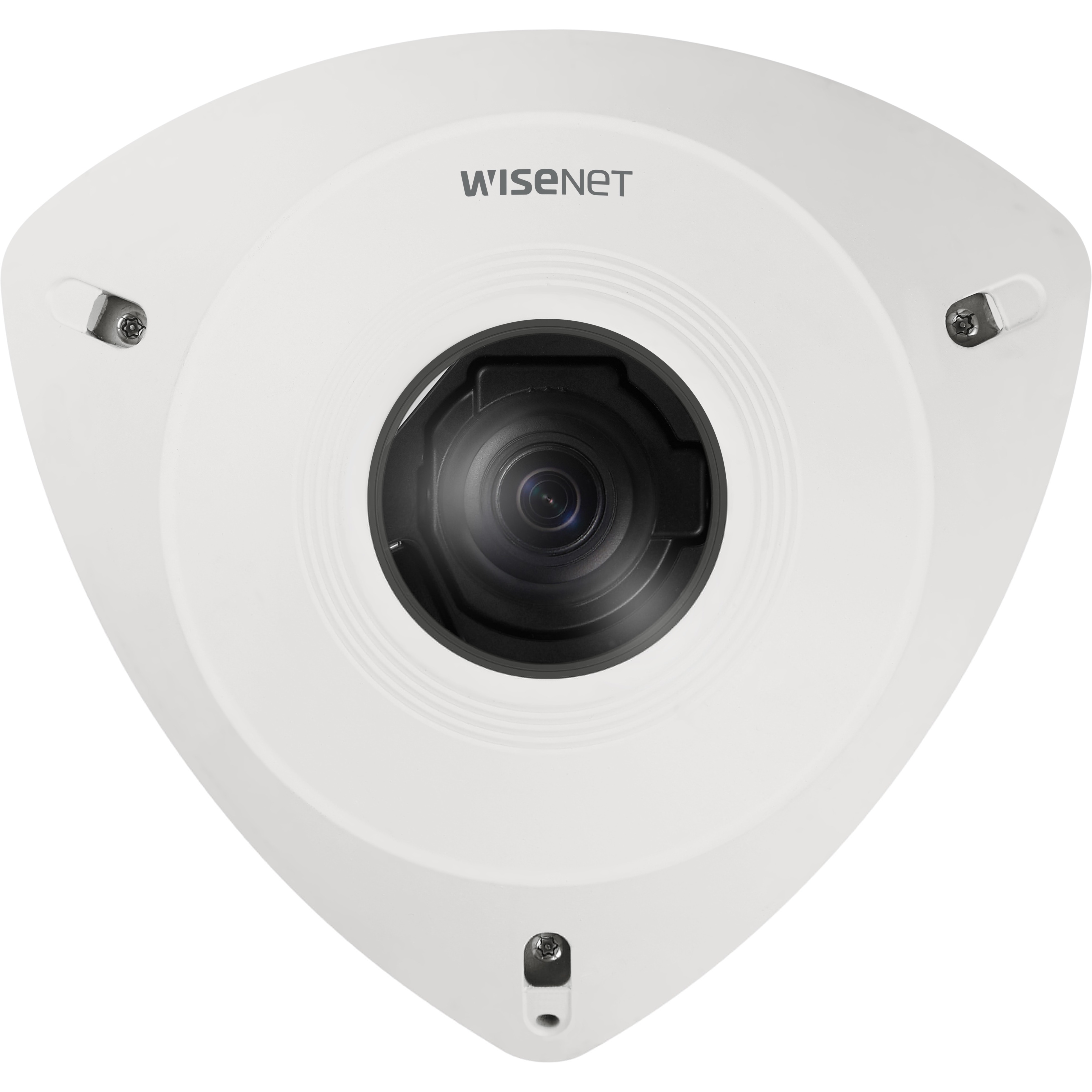

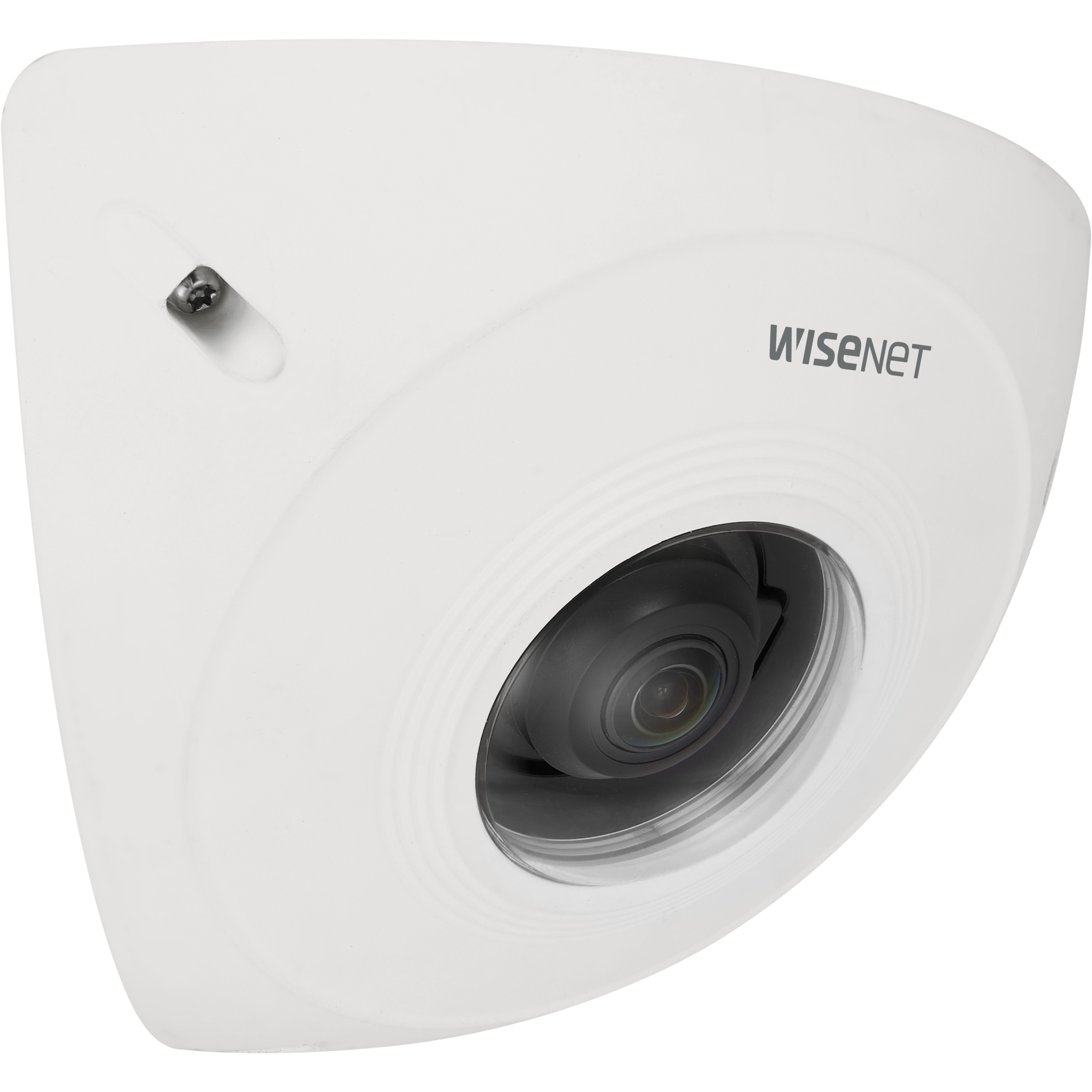

Wisenet TNV-8011C 5 Megapixel Network Camera - Color - White
NDAA Section 889 / TAA-compliant — country of origin confirmed on quote
We confirm stock, country of origin and compliance before any order — no payment up front.
Highlights
- Anti-ligature design for corrections and behavioral health facilities
- 5 Megapixel (2592 x 1944) resolution
- 30fps @ all resolutions (H.265/H.264)
- 0.1 lux @ F2.3 (Color), 0.02 lux @ F2.3 (B/W)
- Built-in 2.3mm fixed lens
- H.265, H.264, MJPEG triple codec support, Multiple streaming
Tech specs
Specifications
| Product Type | Network Camera |
| Maximum Aperture | f/2.3 |
| Maximum Video Resolution | 2592 x 1944 |
| Maximum Frame Rate | 30 fps fps |
| Maximum Focal Length | 2.30 mm mm |
| Image Sensor Type | CMOS |
| Effective Camera Resolution | 5 Megapixel Pixel |
| Field of View | H: 131° / V: 93.4° / D: 174° |
| Minimum Operating Temperature | 14°F (-10°C) °F |
| Maximum Operating Temperature | 131°F (55°C) °F |
| Network (RJ-45) | Yes |
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/12000 Second |
| Remote Management | Yes |
| HD Recording | Yes |
| Lens Included | Yes |
| Storage Type | Memory Card |
| Product Color | White |
| Color Family | White |
| Analog Video Signal Format | CVBS |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Ingress Protection Rating | IP6K9K |
| Maximum Operating Humidity | 95% % |
| Height | 6.5" mm |
| Width | 6.7" mm |
| Depth | 3.1" mm |
| Color Supported | Color |
| Connectivity Technology | Wired |
| Product Series | T |
| Durability | Vandal Resistant |
| Features | Day/Night |
| Features | Wide Dynamic Range |
| Features | SD Card Local Storage |
| Features | Built-in Mechanical ICR |
| Features | Tamper Detection |
| Features | Audio Detection |
| Features | Back Light Compensation (BLC) |
| Features | Digital Noise Reduction |
| Features | Digital Image Stabilization |
