Hanwha Vision

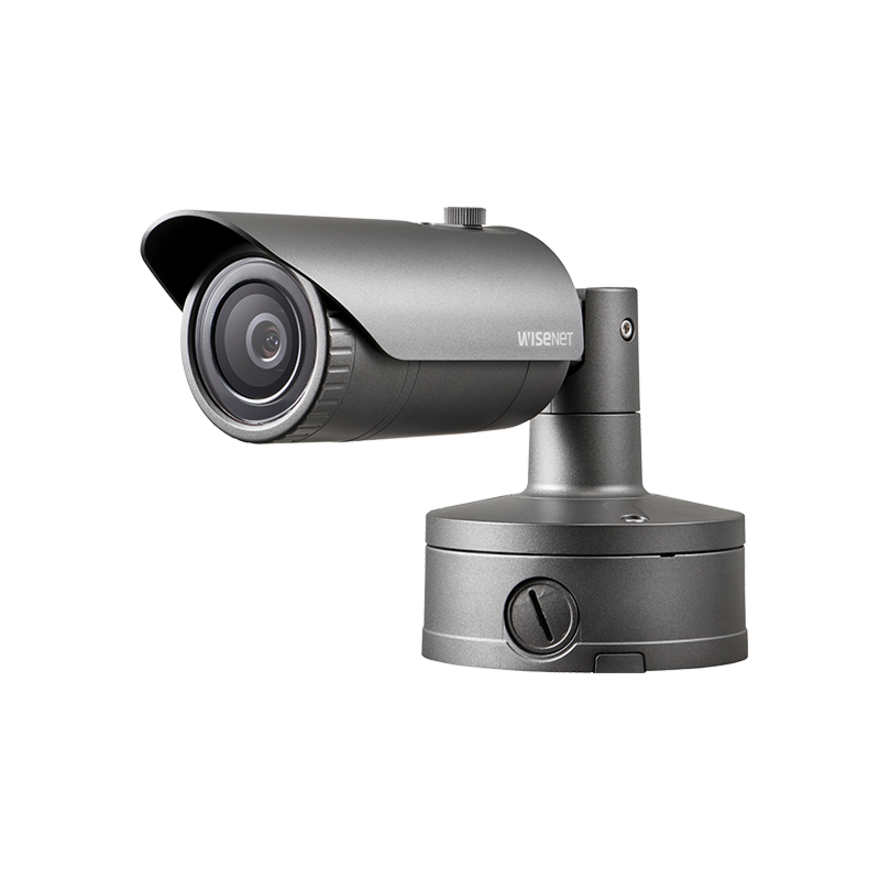

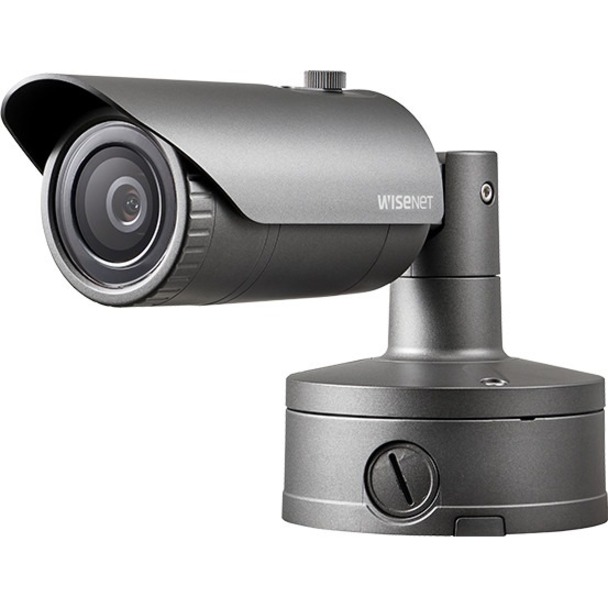

Wisenet XNO-8020R 5 Megapixel Outdoor Network Camera - Color - Bullet - 98 ft Infrared Night Vision - MJPEG, H.264, H.265, MPEG-4 AVC - 2560 x 1920 Fixed Lens - 30 fps - CMOS - Pole Mount - IP66
Part number XNO-8020R
Wisenet XNO-8020R 5 Megapixel Outdoor Network Camera - Color - Bullet
NDAA Section 889 / TAA-compliant — country of origin confirmed on quote
We confirm stock, country of origin and compliance before any order — no payment up front.
Highlights
- Built-in 3.7mm fixed lens
- Max. 30fps@all resolutions (H.265/H.264)
- Loitering, Directional detection, Fog detection, Audio detection, Digital auto tracking, Sound classification, Heatmap, People counting, Queue management, Tampering
- Motion detection, Handover
- Dual SD slots (Max. 512GB),WiseStream II support
- IR viewable length 30m, IP67/IP66, NEMA 4X, IK10
Tech specs
Specifications
| Product Type | Network Camera |
| Maximum Aperture | f/1.6 |
| Maximum Video Resolution | 2560 x 1920 |
| Maximum Frame Rate | 30 fps fps |
| Maximum Focal Length | 3.70 mm mm |
| Image Sensor Type | CMOS |
| Effective Camera Resolution | 5 Megapixel Pixel |
| Field of View | H : 97.5 ? / V : 71.9 ? / D : 126.2 ? |
| Minimum Operating Temperature | -22°F (-30°C) °F |
| Maximum Operating Temperature | 131°F (55°C) °F |
| Network (RJ-45) | Yes |
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/12000 Second |
| Remote Management | Yes |
| Night Vision | Yes |
| HD Recording | Yes |
| Lens Included | Yes |
| Night Vision Distance | 98 ft mm |
| Storage Type | Memory Card |
| Indoor/Outdoor | Outdoor |
| Product Color | Dark Gray |
| Power Source Type | DC |
| Power Source Type | PoE |
| Color Family | Gray |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| Ingress Protection Rating | IP66 |
| Night Vision Type | Infrared |
| Maximum Operating Humidity | 90% % |
| Diameter | 2.8" mm |
| Color Supported | Color |
| Connectivity Technology | Wired |
| Product Series | X |
| Durability | Vandal Resistant |
| Features | SD Card Local Storage |
| Features | Day/Night |
| Features | Built-in IR LED |
| Features | Highlight Compensation (HLC) |
| Features | Back Light Compensation (BLC) |
| Form Factor | Bullet |
