Hanwha Vision

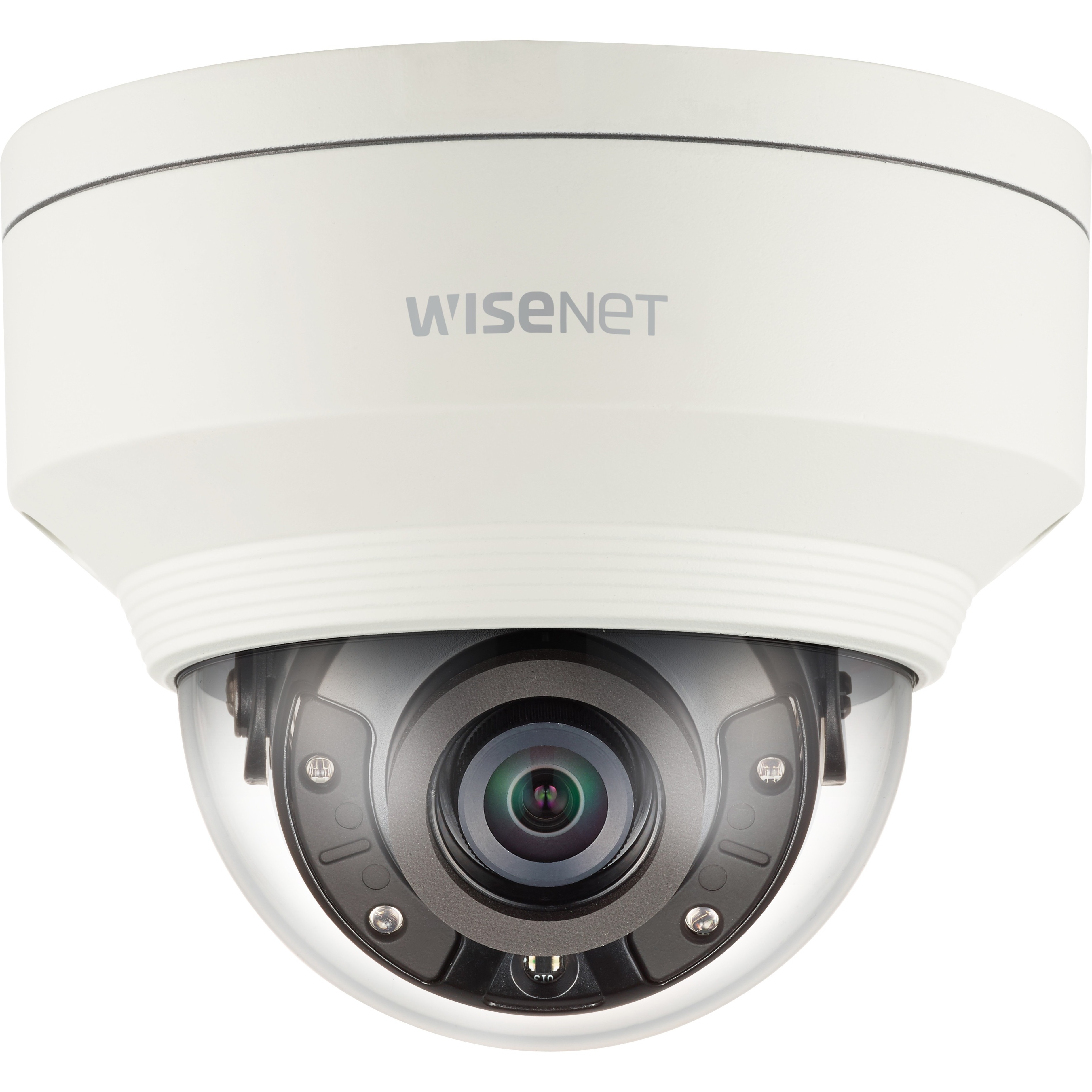

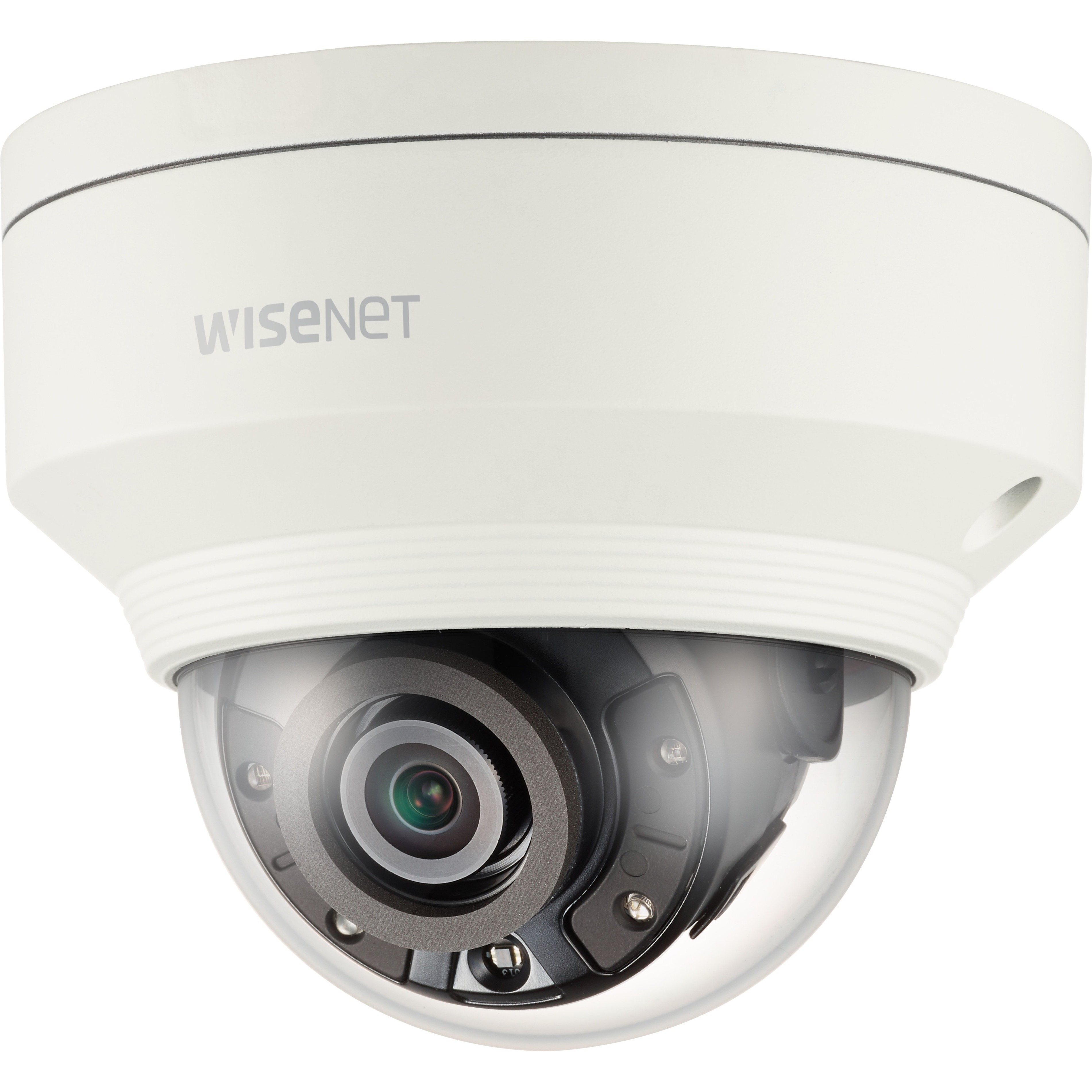

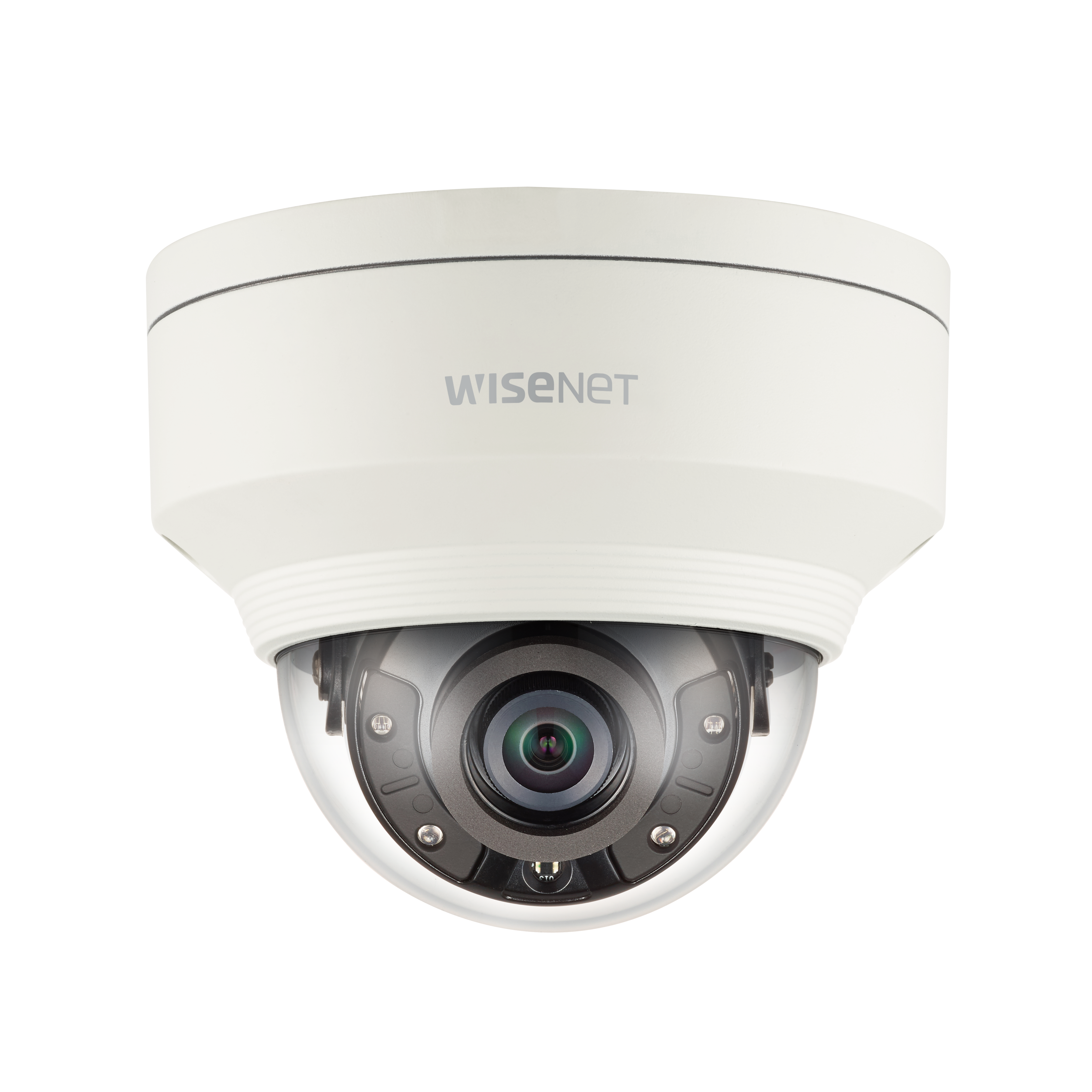

Wisenet XNV-8020R 5 Megapixel Outdoor Network Camera - Color - Dome - 98.43 ft Infrared Night Vision - MJPEG, H.264, H.265, MPEG-4 AVC - 2560 x 1920 Fixed Lens - 30 fps - CMOS - Wall Mount, Parapet Mount, Pole Mount, Corner Mount - IP67
Part number XNV-8020R
Wisenet XNV-8020R 5 Megapixel Outdoor Network Camera - Color - Dome
NDAA Section 889 / TAA-compliant — country of origin confirmed on quote
We confirm stock, country of origin and compliance before any order — no payment up front.
Highlights
- Built-in 3.7mm fixed lens
- Max. 30fps@all resolutions (H.265/H.264)
- Loitering, Directional detection, Fog detection, Digital auto tracking, Sound classification, Heatmap, People counting, Queue management, Tampering
- Motion detection, Handover
- Hallway view, WiseStreamII support
- IR viewable length 30m, IP67/IP66, IK10
Tech specs
Specifications
| Product Type | Network Camera |
| Color Supported | Color |
| Connectivity Technology | Wired |
| Durability | Vandal Resistant |
| Form Factor | Dome |
| Lens Type | Fixed |
| Product Model | XNV-8020R |
| Mount Type | Wall Mount |
| Mount Type | Parapet Mount |
| Mount Type | Pole Mount |
| Mount Type | Corner Mount |
| Input Voltage | 12 V DC |
| Limited Warranty | 3 Year Year |
| Weight (Approximate) | 1.36 lb g |
| Maximum Aperture | f/1.6 |
| Maximum Video Resolution | 2560 x 1920 |
| Maximum Frame Rate | 30 fps fps |
| Maximum Focal Length | 3.70 mm mm |
| Image Sensor Type | CMOS |
| Effective Camera Resolution | 5 Megapixel Pixel |
| Field of View | H : 97.5 ? / V : 71.9 ? / D : 126.2 |
| Network (RJ-45) | Yes |
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/12000 Second |
| Remote Management | Yes |
| Night Vision | Yes |
| HD Recording | Yes |
| Lens Included | Yes |
| Night Vision Distance | 98.43 ft mm |
| Storage Type | Memory Card |
| Indoor/Outdoor | Outdoor |
| Product Color | Ivory |
| Power Source Type | DC |
| Power Source Type | PoE |
| Color Family | White |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Ingress Protection Rating | IP67 |
| Night Vision Type | Infrared |
| Diameter | 4.7" mm |
