Hanwha Vision

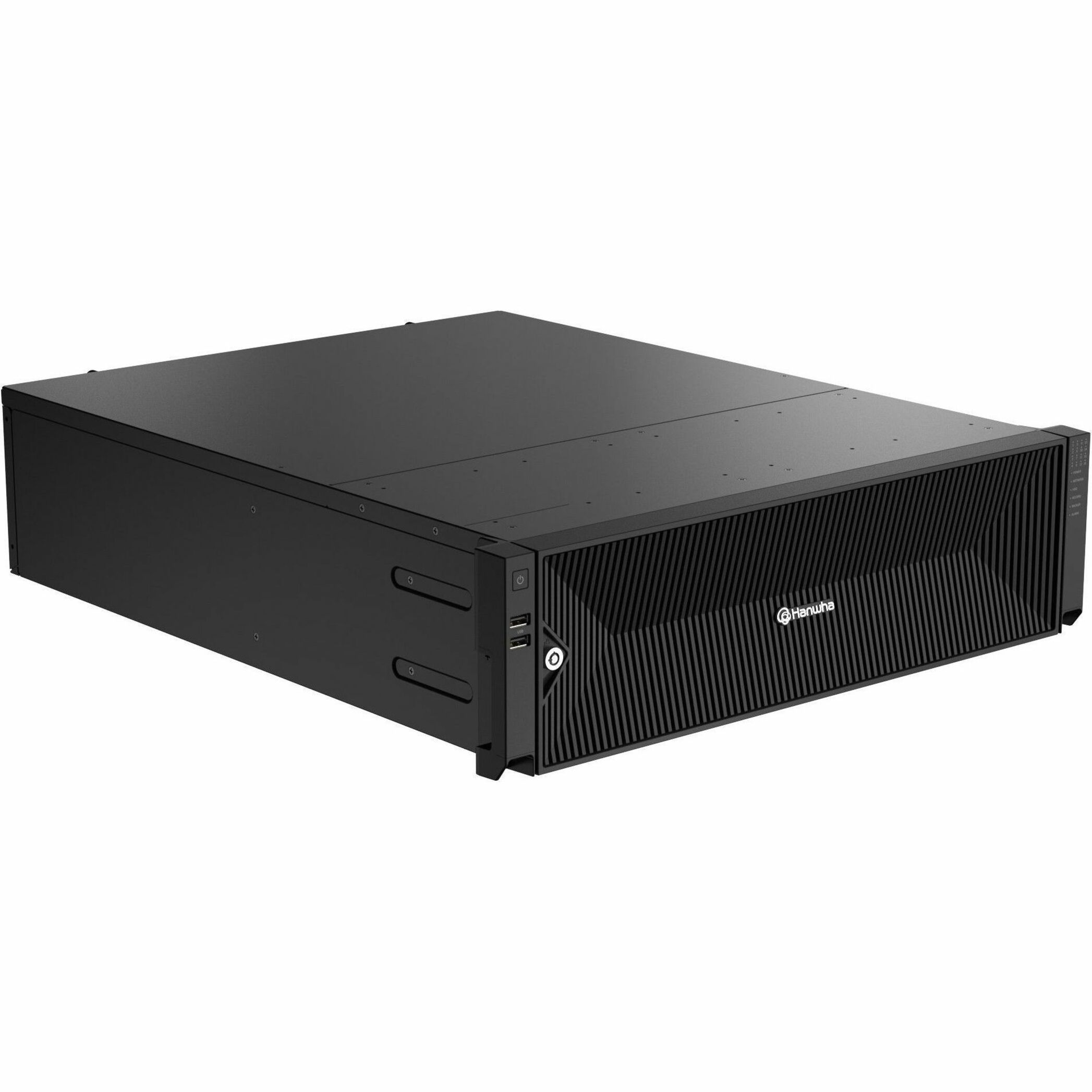

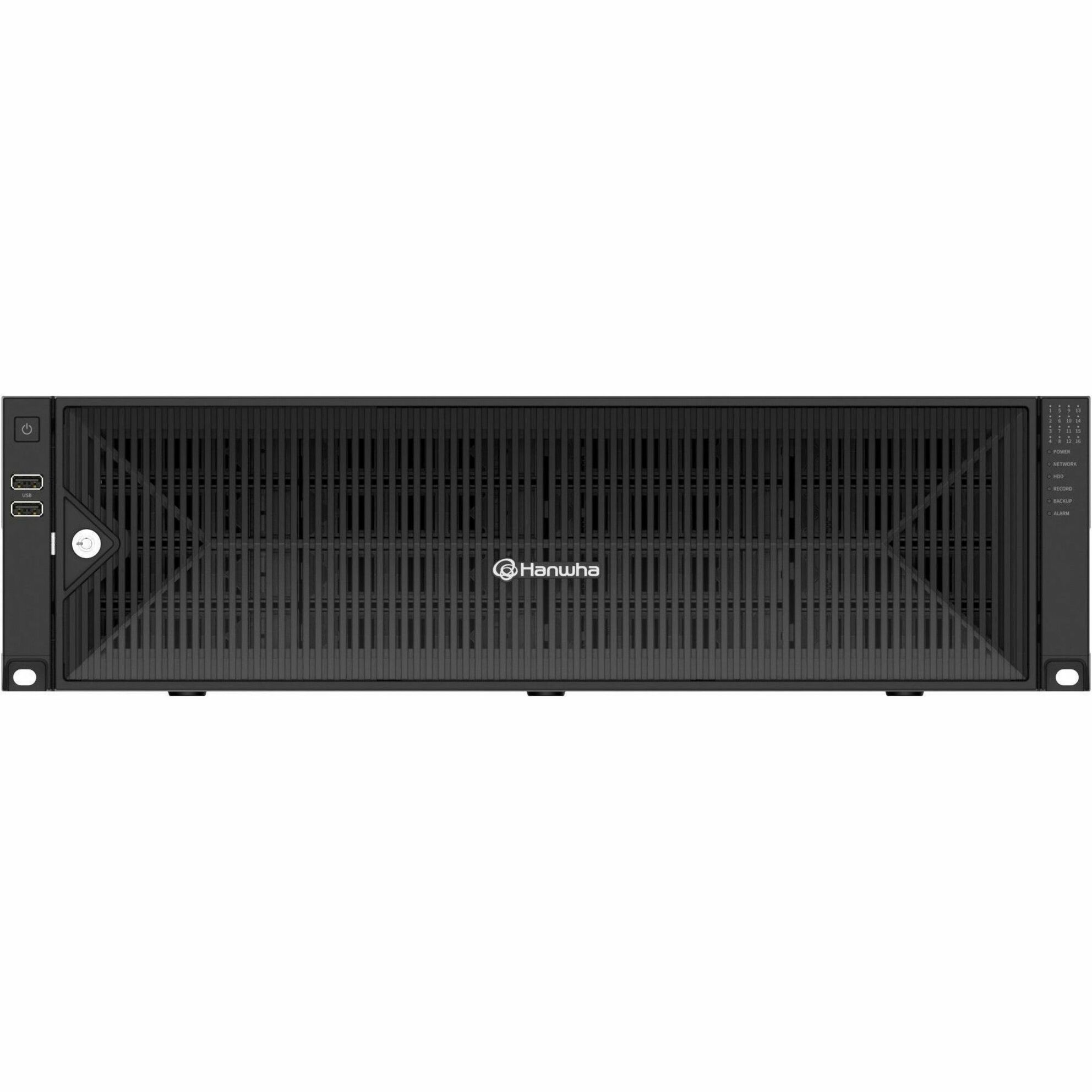

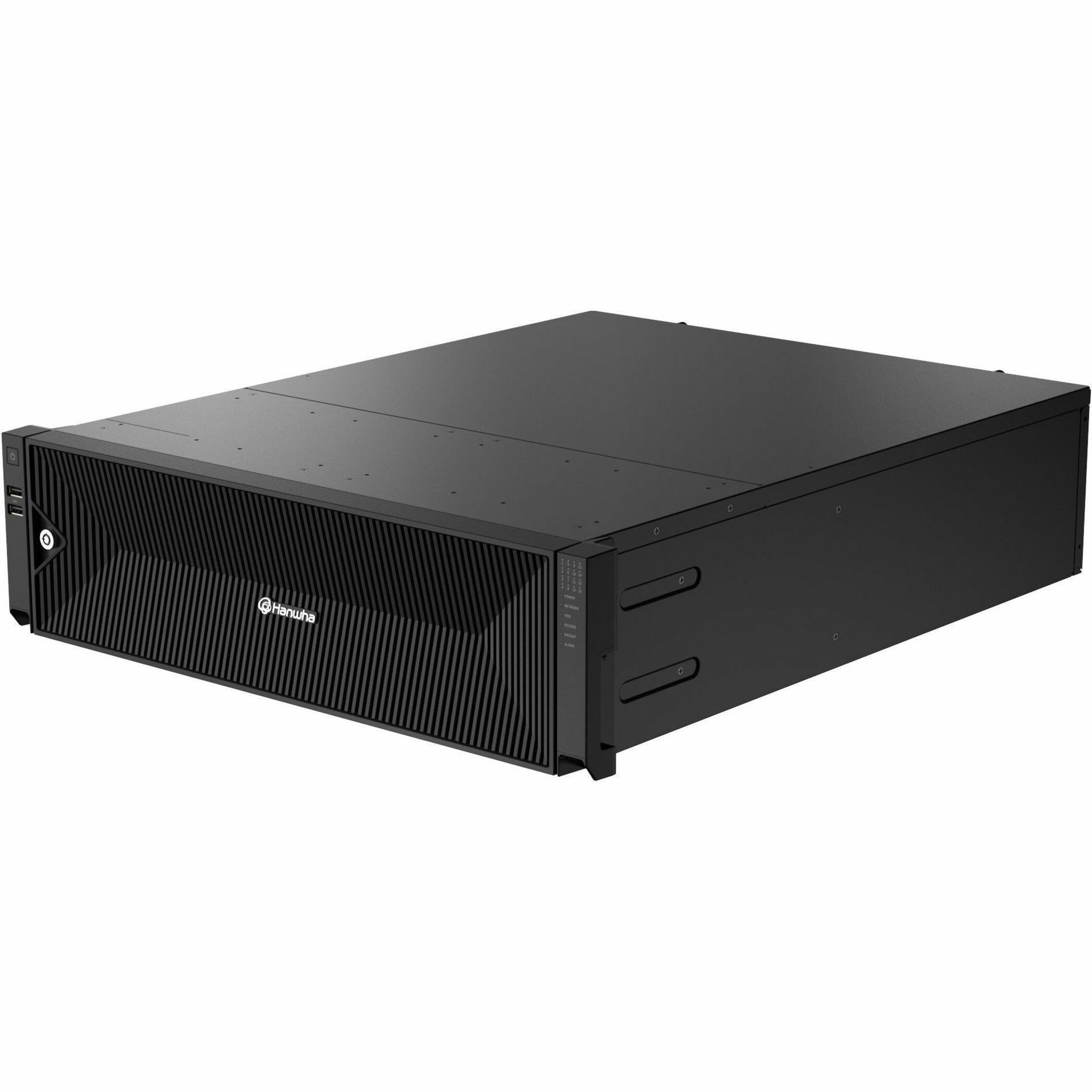

Wisenet XRN-6420DB4 64ch NVR - Network Video Recorder - HDMI - 8K Recording
Part number XRN-6420DB4
Wisenet XRN-6420DB4 64ch NVR
NDAA Section 889 / TAA-compliant — country of origin confirmed on quote
We confirm stock, country of origin and compliance before any order — no payment up front.
Highlights
- 64CH, 32MP resolution
- SATA 16ea (up to 160TB
- Up to 520Mbps recording / transmission bandwidth
- Easy Channel/Event/Alarm configuration
- Virual channal view
- Dynamic layout
Tech specs
Specifications
| Product Type | Video Surveillance Station |
| Recording Formats | 8K |
| Limited Warranty | 5 Year Year |
| Connectivity Technology | Wired |
| Features | Alarm Configuration |
| Features | Fisheye Dewarping |
| Product Model | XRN-6420DB4 |
| Power Consumption | 265 W W |
| Video Formats | H.265 |
| Video Formats | H.264 |
| Video Formats | Motion JPEG |
| Maximum Resolution | 32MP |
| Operating System Supported | Linux |
| Height | 5.2" mm |
| Width | 17.3" mm |
| Depth | 22.5" mm |
| Maximum Frame Rate | 30 fps fps |
| Ethernet | Yes |
| USB | Yes |
| HDMI | Yes |
| Minimum Operating Temperature | 32°F (0°C) °F |
| Maximum Operating Temperature | 104°F (40°C) °F |
| Number of USB Ports | 4 |
| Remote Management | Yes |
| USB Standard | USB 2.0/3.0 |
| HD Recording | Yes |
| Total Number of Channels | 64 |
| Total Number of Audio Out Ports | 1 |
| System Components | Network Video Recorder |
| NVR Weight | 33.29 lb g |
| AI-powered | Yes |
