Johnson Controls (Software House / exacqVision)

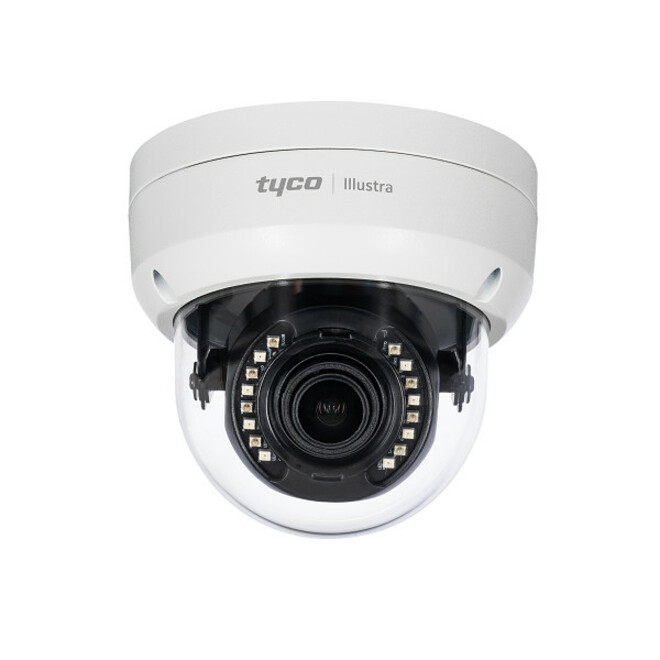

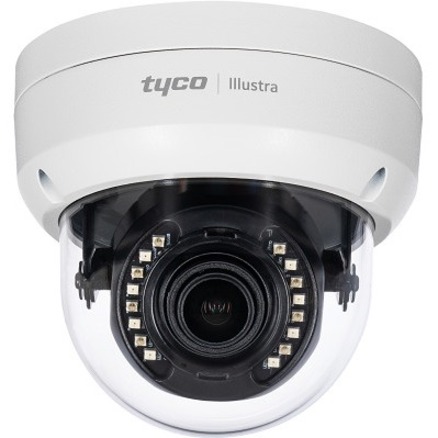

Illustra Essentials Gen4 IES02-D12-OI04 2 Megapixel HD Network Camera - Mini Dome - White - 98.43 ft - H.264, H.265, MJPEG - 1920 x 1080 - 2.70 mm Varifocal Lens - 5x Optical - 30 fps - CMOS
Part number IES02-D12-OI04
Illustra Essentials Gen4 IES02-D12-OI04 2 Megapixel HD Network Camera - Mini Dome - White
NDAA Section 889 / TAA-compliant — country of origin confirmed on quote
$185.34$340.00Save 45%
Factory-direct — ships in ~2 weeks
Or request a TAA-compliant quote → Free US delivery 30-day returns NDAA 889 / TAA compliance verified on every order
We confirm stock, country of origin and compliance before any order — no payment up front.
Highlights
- 2MP (1080p) resolution for HD quality images
- Manage bandwidth resources with H.264 and H.265 dualstream encoding
- Up to 30 frames per second for seamless video streaming
- 2.7-13.5mm varifocal lens with motorized zoom
- One-touch auto-focus
- IR Illuminators deliver clear video when viewing dark scenes
Tech specs
Specifications
| Product Type | Network Camera |
| Maximum Aperture | f/1.7 |
| Environmentally Friendly | Yes |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps fps |
| Maximum Focal Length | 13.50 mm mm |
| Minimum Focal Length | 2.70 mm mm |
| Image Sensor Type | CMOS |
| Effective Camera Resolution | 2 Megapixel Pixel |
| Minimum Operating Temperature | -22°F (-30°C) °F |
| Maximum Operating Temperature | 140°F (60°C) °F |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Video Signal Format | NTSC |
| Video Signal Format | PAL |
| HD Recording | Yes |
| Night Vision Distance | 98.43 ft mm |
| Indoor/Outdoor | Outdoor |
| Product Color | White |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Diameter | 4.9" mm |
| Height | 4.4" mm |
| Color Supported | Color |
| Color Supported | Monochrome |
| Connectivity Technology | Wired |
| Product Series | IES0 |
| Optical Zoom | 5x x |
| Form Factor | Mini Dome |
| Lens Type | Varifocal |
| Product Model | IES02-D12-OI04 |
| Video Formats | H.264 |
| Video Formats | H.265 |
| Video Formats | MJPEG |
| Recording Formats | HD |
| Weight (Approximate) | 1.43 lb g |
