Johnson Controls (Software House / exacqVision)

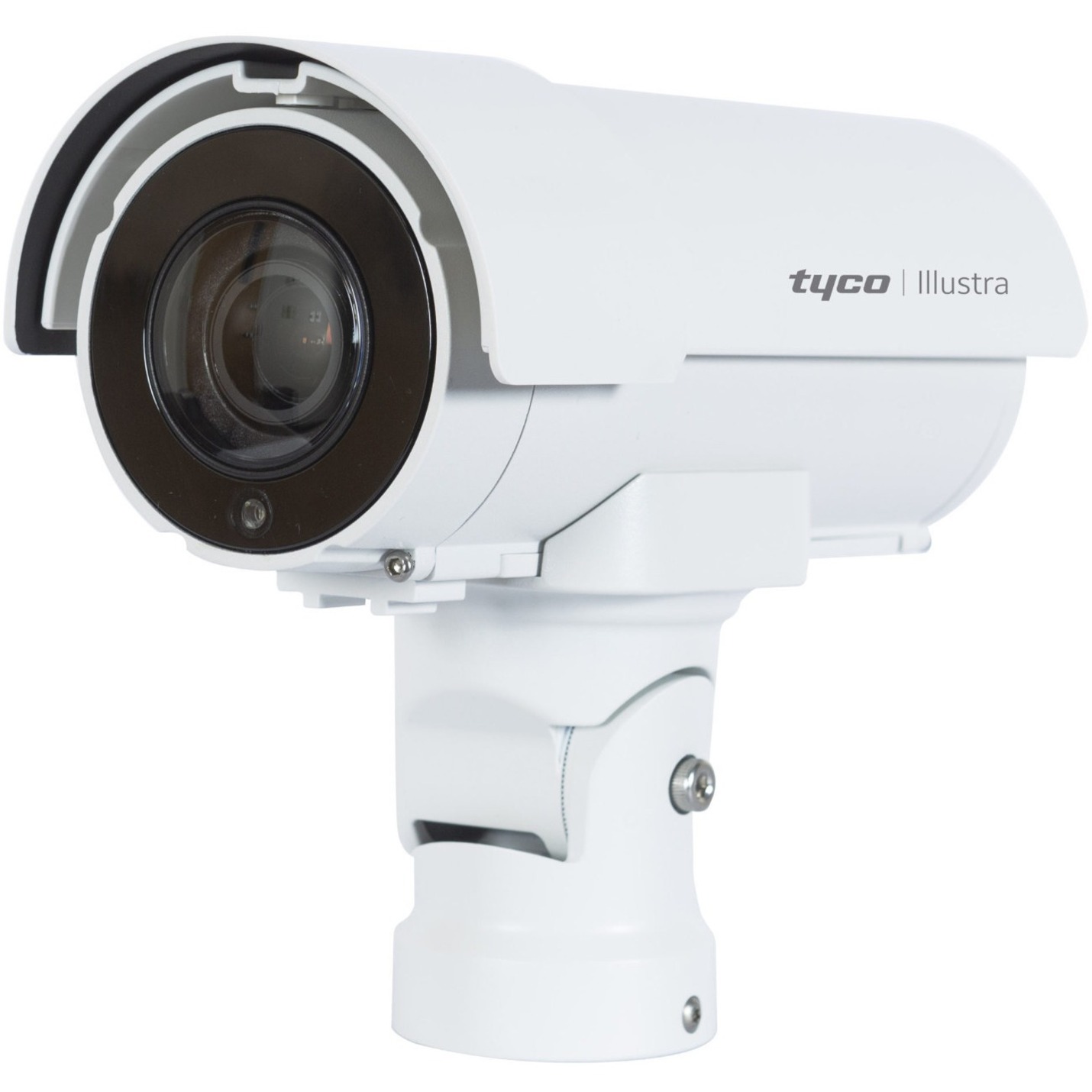

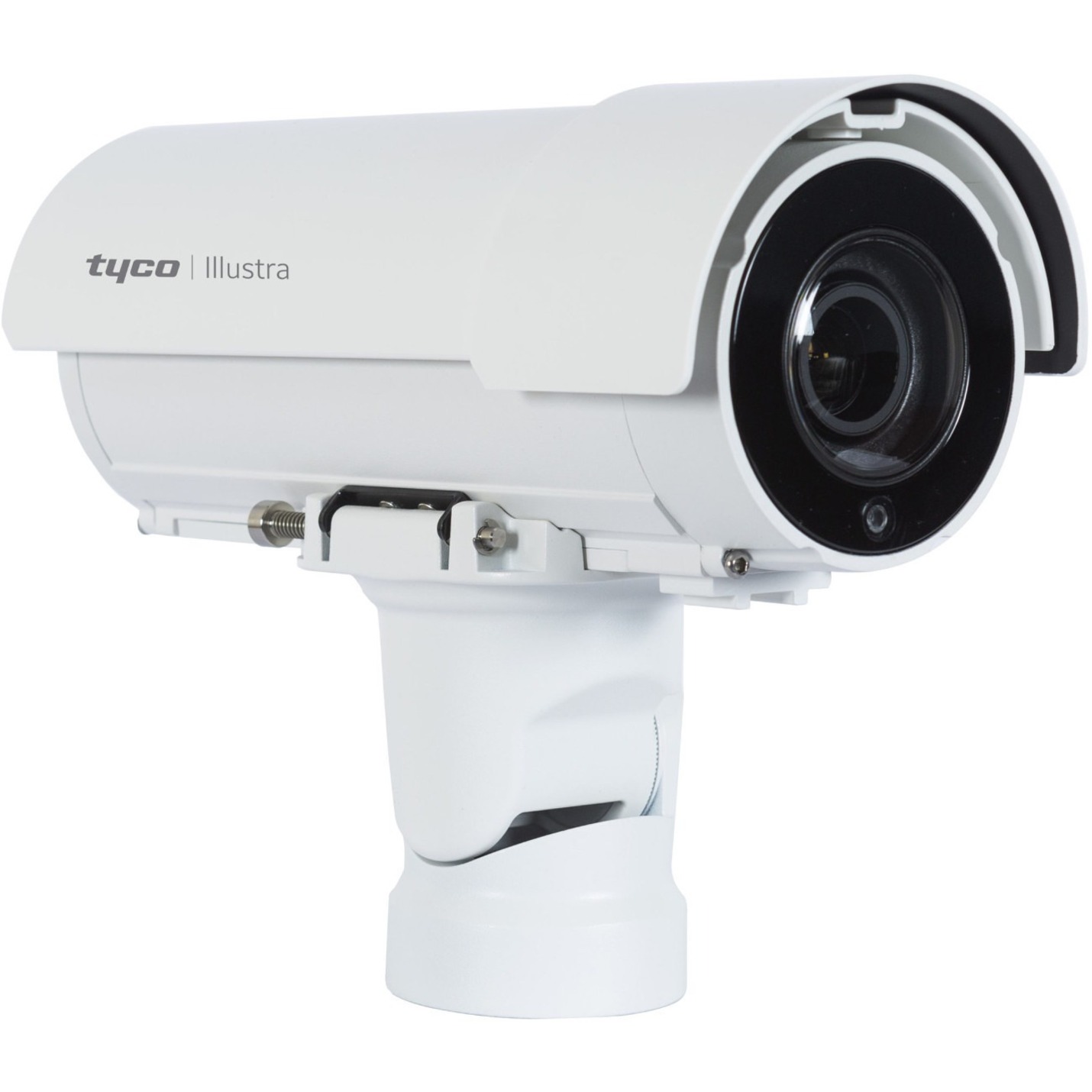

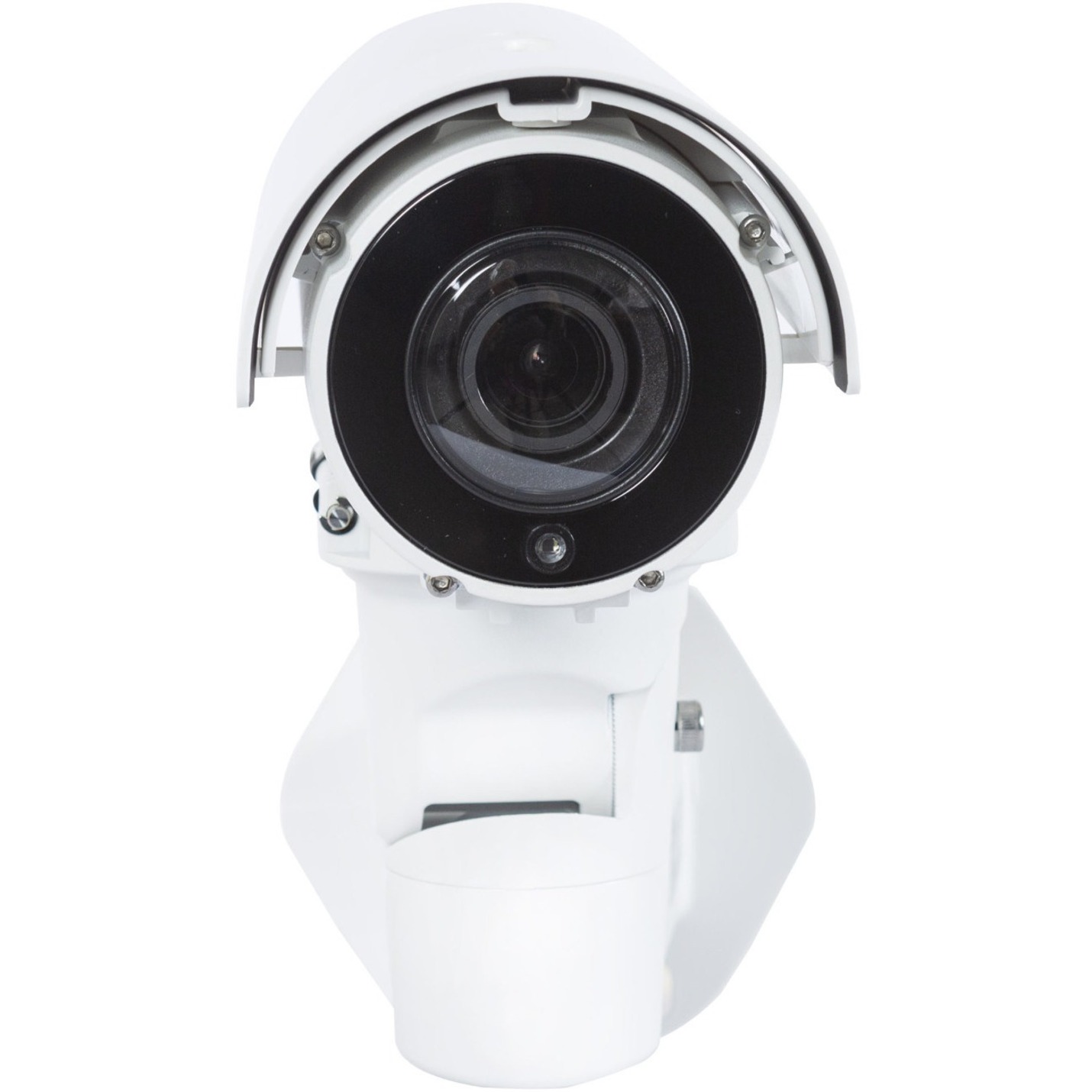

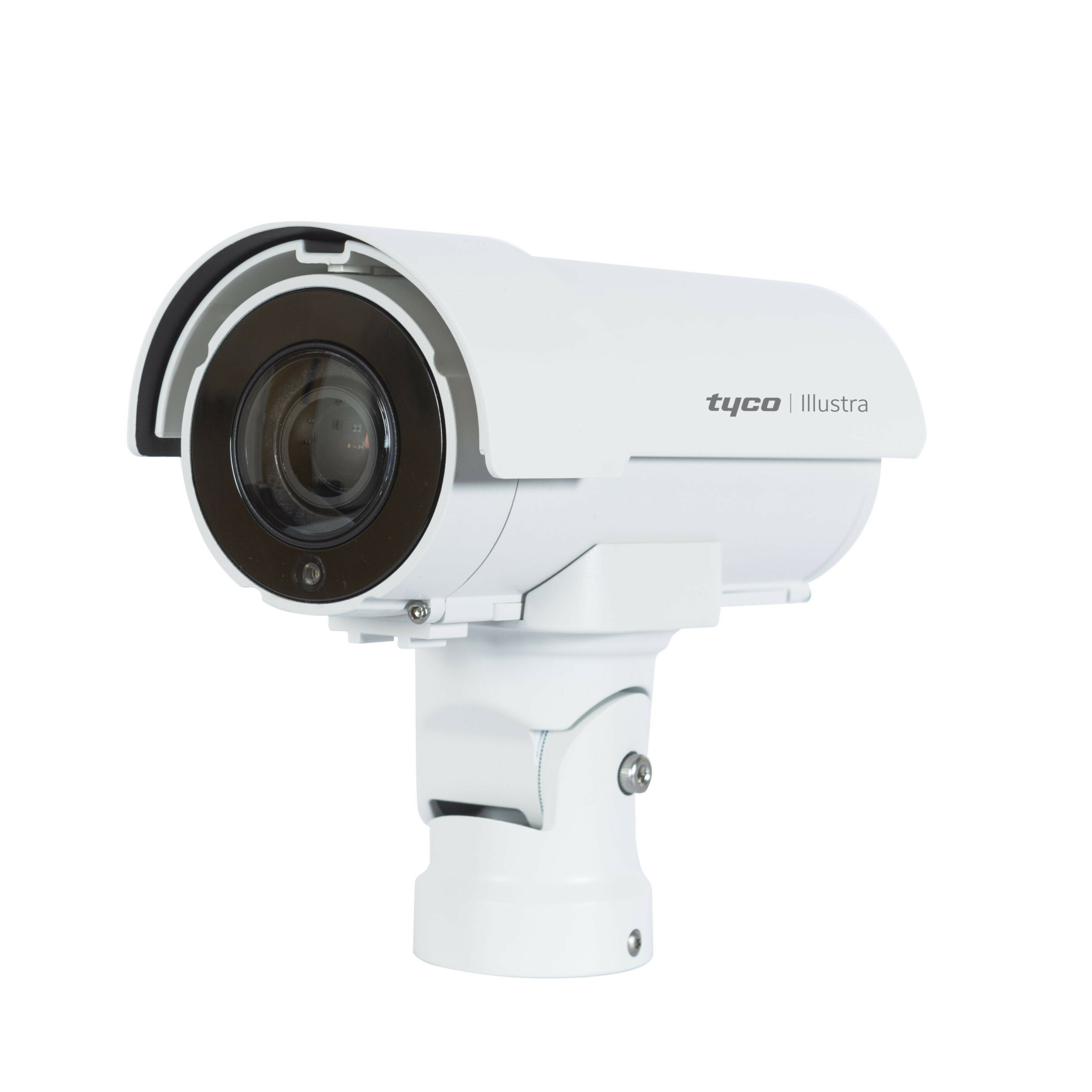

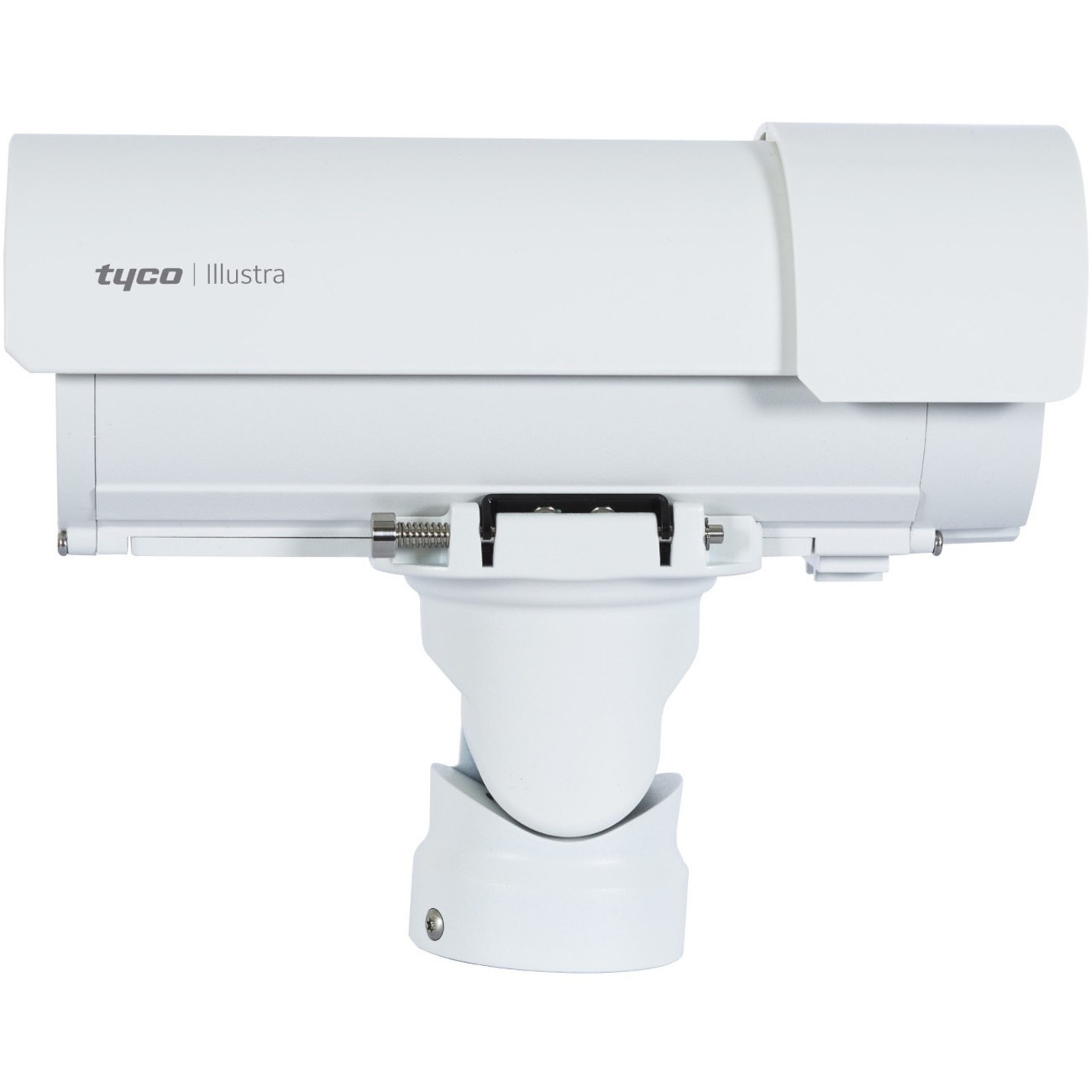

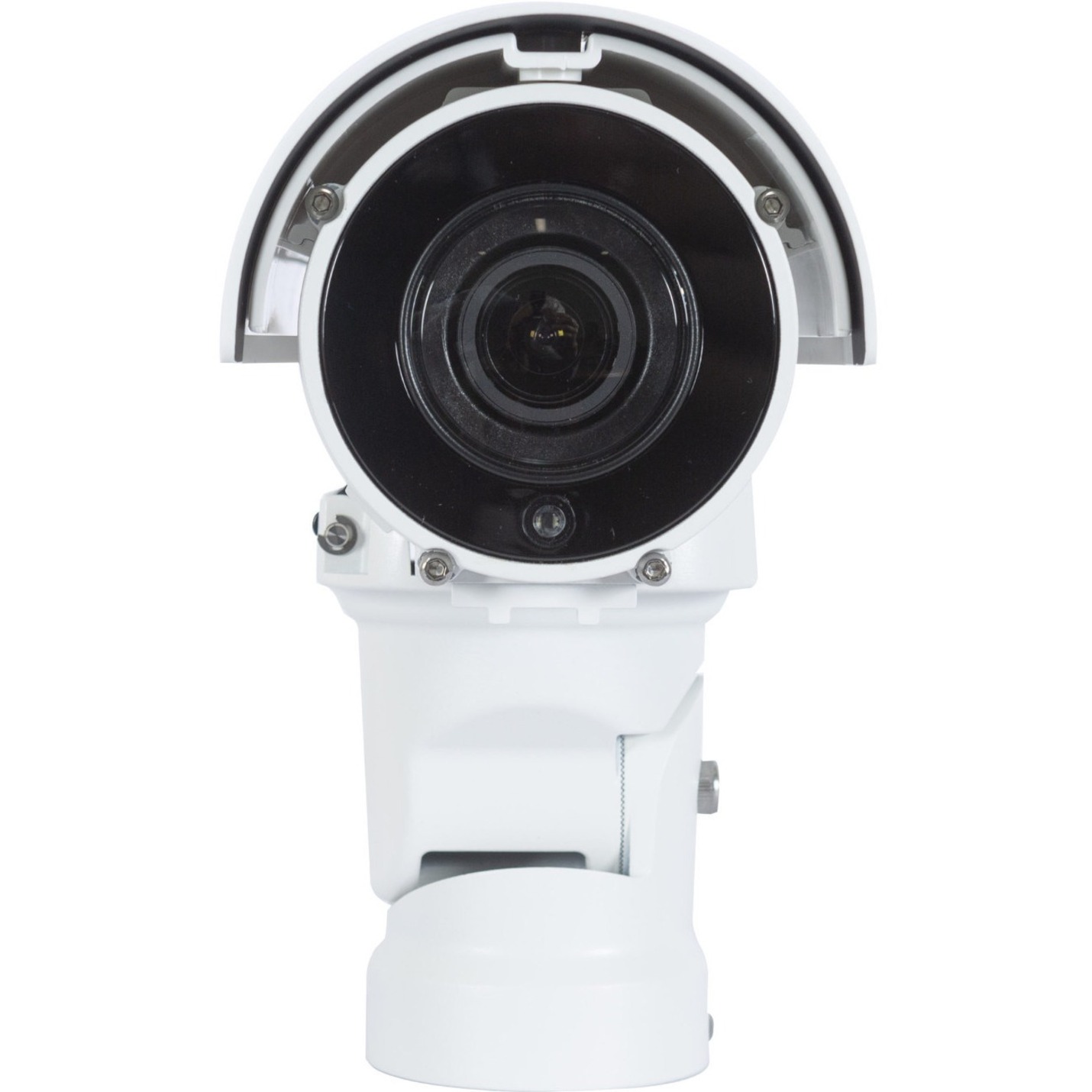

Illustra Illustra Pro IPS05-B16-OI03 5 Megapixel HD Network Camera - Bullet - Signal White - 229.66 ft - H.264, MJPEG, H.265, IntelliZip - 2592 x 1944 - 13 mm Varifocal Lens - 4.2x Optical - 60 fps - RGB CMOS - Corner Mount, Pole Mount - Impact Resistant, Vandal Resistant
Part number IPS05-B16-OI03
Illustra Illustra Pro IPS05-B16-OI03 5 Megapixel HD Network Camera - Bullet - Signal White
NDAA Section 889 / TAA-compliant — country of origin confirmed on quote
$911.28$1,740.00Save 48%
Factory-direct — ships in ~2 weeks
Or request a TAA-compliant quote → Free US delivery 30-day returns NDAA 889 / TAA compliance verified on every order
We confirm stock, country of origin and compliance before any order — no payment up front.
Highlights
- Pole/pendant mount and arm included for mounting
- flexibility
- ? Easily accessible ports simplify installation
- ? Profile settings allow the bullet to adapt to scenarios such as license plate recognition, gaming, and more
- ? Ultra low light capabilities to maintain color image
- quality without IR
Tech specs
Specifications
| Product Type | Network Camera |
| Maximum Aperture | f/2.1 |
| Environmentally Friendly | Yes |
| Maximum Video Resolution | 2592 x 1944 |
| Maximum Frame Rate | 60 fps fps |
| Maximum Focal Length | 55 mm mm |
| Minimum Focal Length | 13 mm mm |
| Image Sensor Type | RGB CMOS |
| Effective Camera Resolution | 5 Megapixel Pixel |
| Field of View | Wide:25°/19° ,Telephoto:6°/4.6° |
| Minimum Operating Temperature | -50°F (-45.6°C) °F |
| Maximum Operating Temperature | 140°F (60°C) °F |
| Network (RJ-45) | Yes |
| Longest Shutter Speed | 1/4 Second |
| Shortest Shutter Speed | 1/10000 Second |
| Remote Management | Yes |
| Minimum Aperture | f/1.7 |
| HD Recording | Yes |
| Lens Included | Yes |
| Night Vision Distance | 229.66 ft mm |
| Indoor/Outdoor | Indoor/Outdoor |
| Product Color | Signal White |
| Color Family | White |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| Maximum Operating Humidity | 90% % |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Diameter | 3.2" mm |
| Height | 9.3" mm |
| Color Supported | Color |
| Connectivity Technology | Wired |
| Product Series | Gen lll |
| Optical Zoom | 4.2x x |
| Durability | Impact Resistant |
| Durability | Vandal Resistant |
| Features | Ingress Protection |
| Features | Motion Detection |
| Features | Face Detection |
