Johnson Controls (Software House / exacqVision)

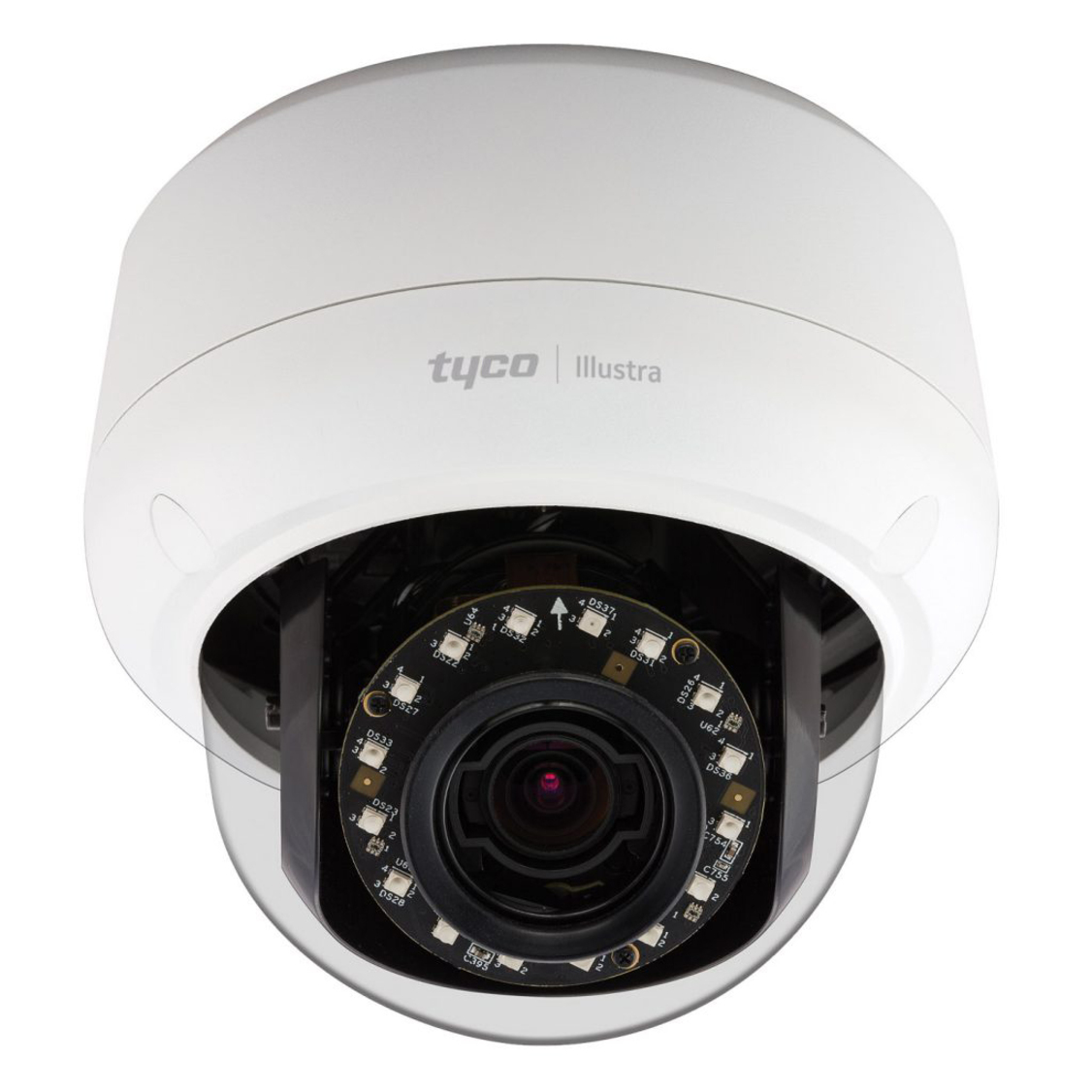

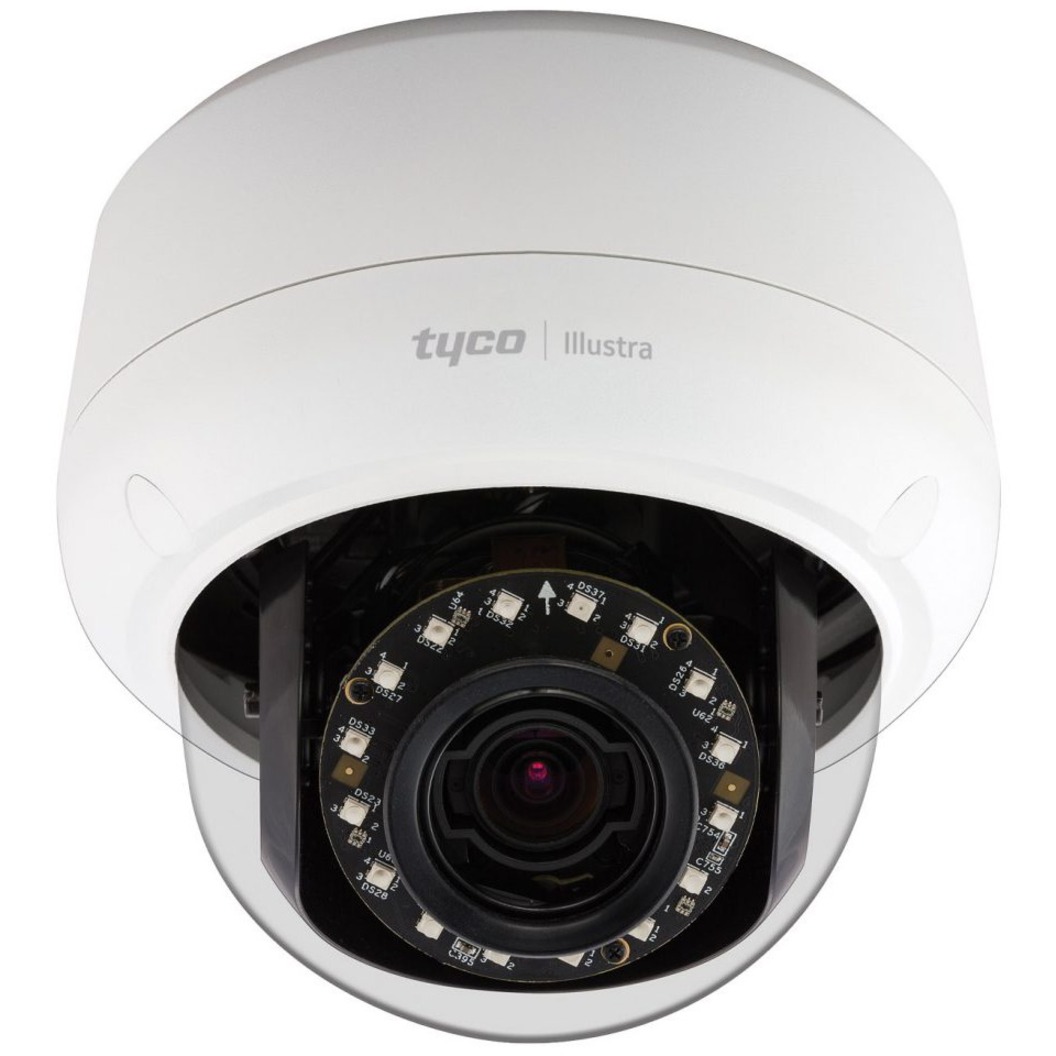

Illustra Illustra Pro IPS05D2OCWIY 5 Megapixel Outdoor Network Camera - Color, Monochrome - Mini Dome - White - 65.62 ft Infrared Night Vision - H.264, MJPEG - 2592 x 1944 - 3 mm- 9 mm Varifocal Lens - 3x Optical - 30 fps - CMOS - Wall Mount, Gooseneck, Pole Mount, Pendant Mount, Recessed Mount - IK10 - IP66 - Vandal Resistant, Weather Resistant
Part number IPS05D2OCWIY
Illustra Illustra Pro IPS05D2OCWIY 5 Megapixel Outdoor Network Camera - Color, Monochrome - Mini Dome - White
NDAA Section 889 / TAA-compliant — country of origin confirmed on quote
$683.64$1,300.00Save 47%
Factory-direct — ships in ~2 weeks
Or request a TAA-compliant quote → Free US delivery 30-day returns NDAA 889 / TAA compliance verified on every order
We confirm stock, country of origin and compliance before any order — no payment up front.
Highlights
- Network camera - Helps achieve high-quality video results
- Up to 2592 x 1944 resolution for surveillance in real-time
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 9 mm maximum focal length provides incredible detail and how effective is your network camera
- f/1.2 maximum aperture for productive capturing according to focal length and lighting conditions
- 3x optical zoom ensures maximum surveillance productivity without compromising quality
Tech specs
Specifications
| Product Type | Network Camera |
| Maximum Aperture | f/1.2 |
| Environmentally Friendly | Yes |
| Maximum Video Resolution | 2592 x 1944 |
| Maximum Frame Rate | 30 fps fps |
| Maximum Focal Length | 9 mm mm |
| Minimum Focal Length | 3 mm mm |
| Image Sensor Type | CMOS |
| Effective Camera Resolution | 5 Megapixel Pixel |
| Field of View | W: 103°x87° T: 74°/59° W: 88°/64° T: 30°/22° W: 29°/21° T: 12°/9° |
| Minimum Operating Temperature | -22°F (-30°C) °F |
| Maximum Operating Temperature | 122°F (50°C) °F |
| Network (RJ-45) | Yes |
| Longest Shutter Speed | 1/2 Second |
| Shortest Shutter Speed | 1/1000 Second |
| Remote Management | Yes |
| Night Vision | Yes |
| Video Signal Format | PAL |
| HD Recording | Yes |
| Lens Included | Yes |
| Night Vision Distance | 65.62 ft mm |
| Storage Type | Memory Card |
| Indoor/Outdoor | Outdoor |
| Product Color | White |
| Color Family | White |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Night Vision Type | Infrared |
| Maximum Operating Humidity | 95% % |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Diameter | 6.3" mm |
| Height | 5.3" mm |
| Color Supported | Color |
| Color Supported | Monochrome |
| Connectivity Technology | Wired |
| Optical Zoom | 3x x |
| Durability | Vandal Resistant |
| Durability | Weather Resistant |
| Features | Face Detection |
