Johnson Controls (Software House / exacqVision)
Illustra Pro IPS08-D13-OI04 8 Megapixel Indoor/Outdoor 4K Network Camera - Color - Mini Dome - Signal White - TAA Compliant - 164.04 ft Infrared Night Vision - H.264, H.265, MJPEG, IntelliZip - 3840 x 2160 - 3.60 mm- 10 mm Varifocal Lens - 2.8x Optical - 30 fps - CMOS - Wi-Fi - Gigabit Ethernet - USB - HDMI - Recessed Mount, Wall Mount, Ceiling Mount - IK10 - IP66, IP67 - Weather Resistant, Vandal Resistant
Part number IPS08-D13-OI04

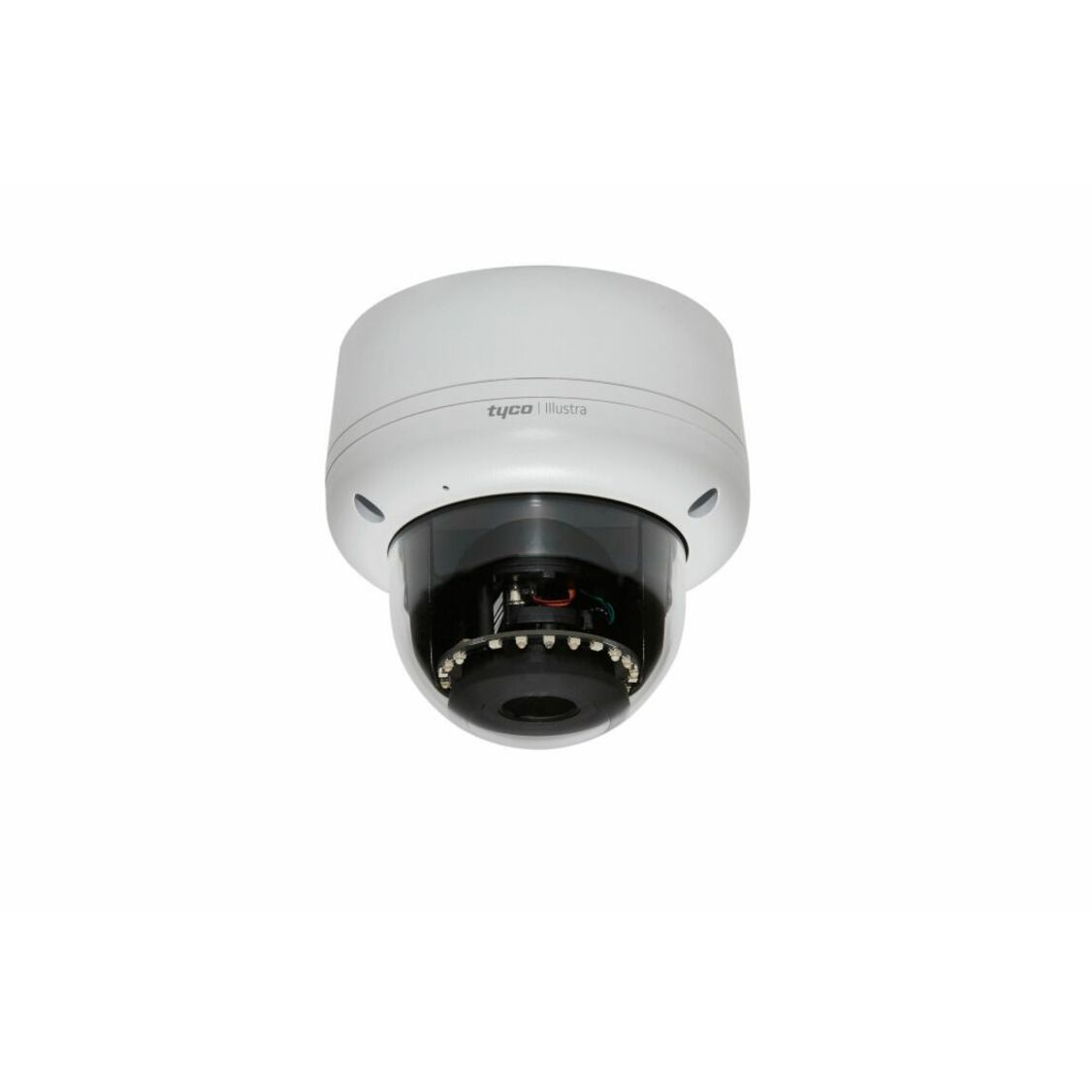

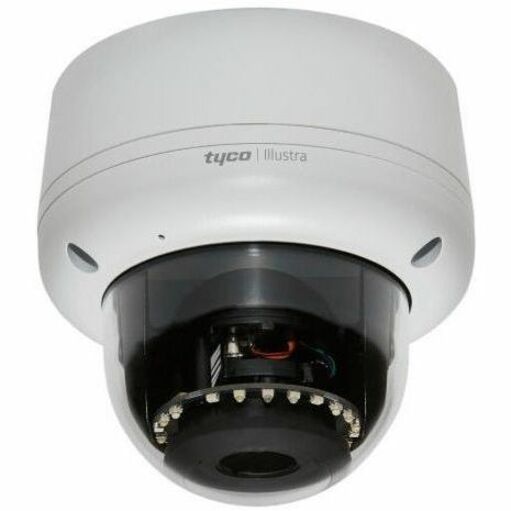

Illustra Pro IPS08-D13-OI04 8 Megapixel Indoor/Outdoor 4K Network Camera - Color - Mini Dome - Signal White - TAA Compliant
NDAA Section 889 / TAA-compliant — country of origin confirmed on quote
$1,016.10$1,740.00Save 42%
Factory-direct — ships in ~2 weeks
Or request a TAA-compliant quote → Free US delivery 30-day returns NDAA 889 / TAA compliance verified on every order
We confirm stock, country of origin and compliance before any order — no payment up front.
Highlights
- Built in AI delivers accurate object classification, powerful situational awareness and security automation.
- Integrated recessed mount, backbox, a range of IO options including Micro HDMI plus WiFi configuration via the Illustra Tools App
- Exposure profile settings allow the mini-dome to adapt to scenarios such as license plate recognition, gaming, and more
- Ultra lowlight capabilities to maintain color image quality without IR
Tech specs
Specifications
| Product Type | Network Camera |
| Maximum Aperture | f/1.5 |
| Environmentally Friendly | Yes |
| Image Sensor Size | 1/1.8" |
| Maximum Video Resolution | 3840 x 2160 |
| Maximum Frame Rate | 30 fps fps |
| Maximum Focal Length | 10 mm mm |
| Minimum Focal Length | 3.60 mm mm |
| Image Sensor Type | CMOS |
| Effective Camera Resolution | 8 Megapixel Pixel |
| Ethernet Technology | Gigabit Ethernet |
| Field of View | Horizontal: 95°, Vertical: 53° |
| USB | Yes |
| HDMI | Yes |
| Minimum Operating Temperature | -58°F (-50°C) °F |
| Maximum Operating Temperature | 149°F (65°C) °F |
| Network (RJ-45) | Yes |
| Longest Shutter Speed | 1/4 Second |
| Shortest Shutter Speed | 1/32000 Second |
| Remote Management | Yes |
| Maximum Power Consumption | 16.50 W W |
| Night Vision | Yes |
| Minimum Aperture | f/2.8 |
| HD Recording | Yes |
| Lens Included | Yes |
| Night Vision Distance | 164.04 ft mm |
| Camera Iris | P-iris |
| Storage Type | Memory Card |
| TAA Compliant | Yes |
| Indoor/Outdoor | Indoor/Outdoor |
| Product Color | Signal White |
| Power Source Type | AC |
| Power Source Type | PoE |
| Color Family | White |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Ingress Protection Rating | IP67 |
| Night Vision Type | Infrared |
| Maximum Operating Humidity | 95% % |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
