Johnson Controls (Software House / exacqVision)

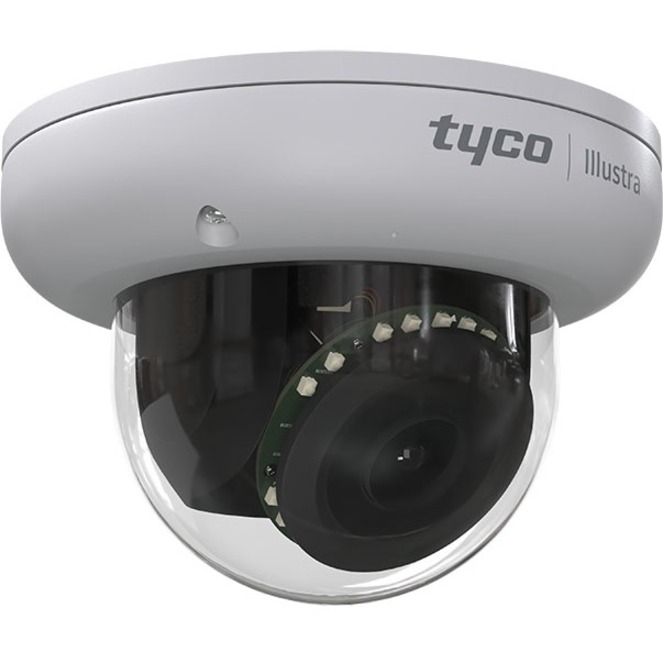

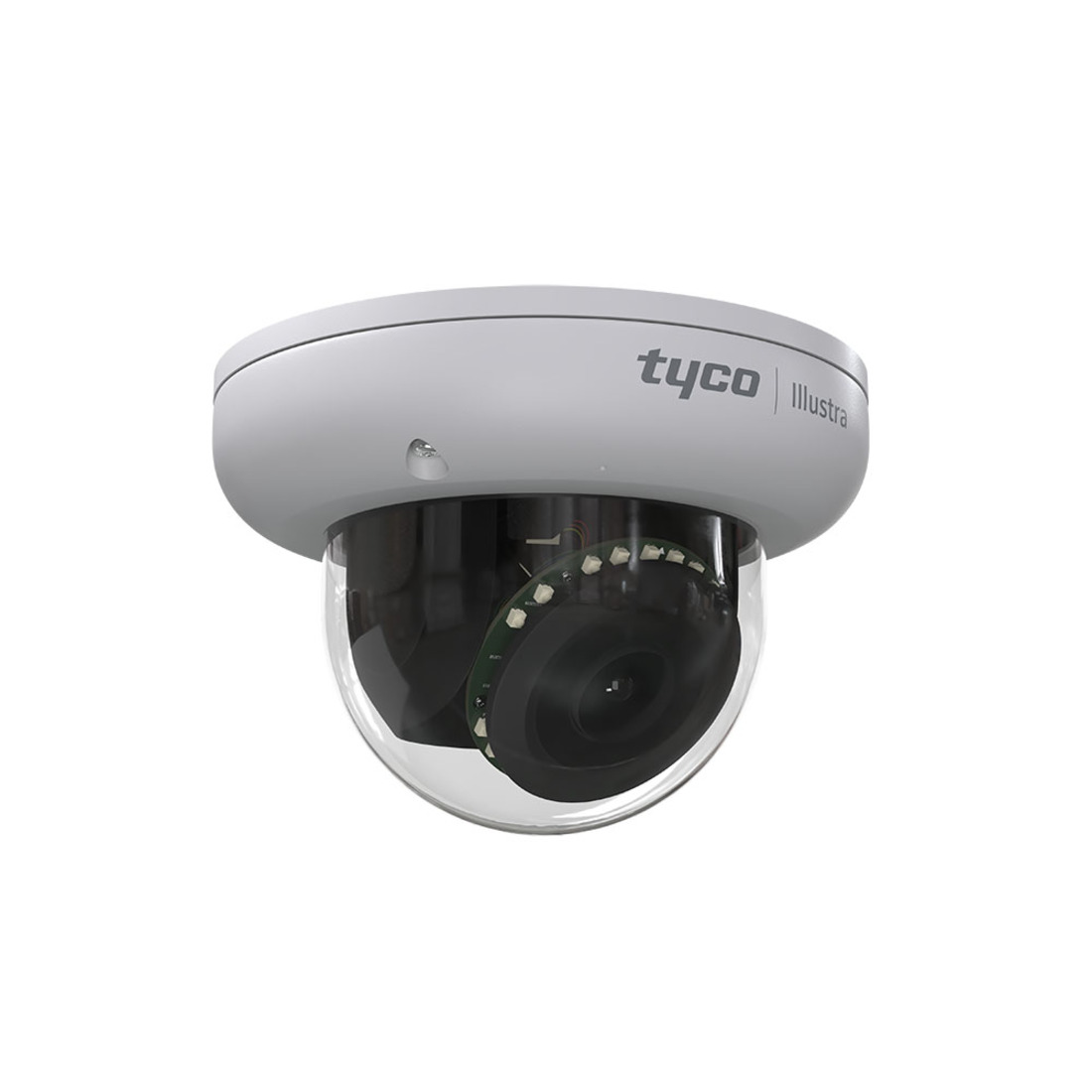

Tyco Illustra Pro IPS02-D12-OI04 2 Megapixel Indoor/Outdoor Full HD Network Camera - Color - Mini Dome - Signal White - 164.04 ft Infrared Night Vision - H.264, H.265, MJPEG, IntelliZip - 1920 x 1080 - 2.70 mm- 13.50 mm Varifocal Lens - 5x Optical - 60 fps - Sony IMX327 - HDMI - Recessed Mount - IK10 - IP66, IP67 - Vandal Resistant
Part number IPS02-D12-OI04
Tyco Illustra Pro IPS02-D12-OI04 2 Megapixel Indoor/Outdoor Full HD Network Camera - Color - Mini Dome - Signal White
NDAA Section 889 / TAA-compliant — country of origin confirmed on quote
$603.56$1,140.00Save 47%
Factory-direct — ships in ~2 weeks
Or request a TAA-compliant quote → Free US delivery 30-day returns NDAA 889 / TAA compliance verified on every order
We confirm stock, country of origin and compliance before any order — no payment up front.
Highlights
- Built in AI delivers accurate object classification, powerful situational awareness and security automation.

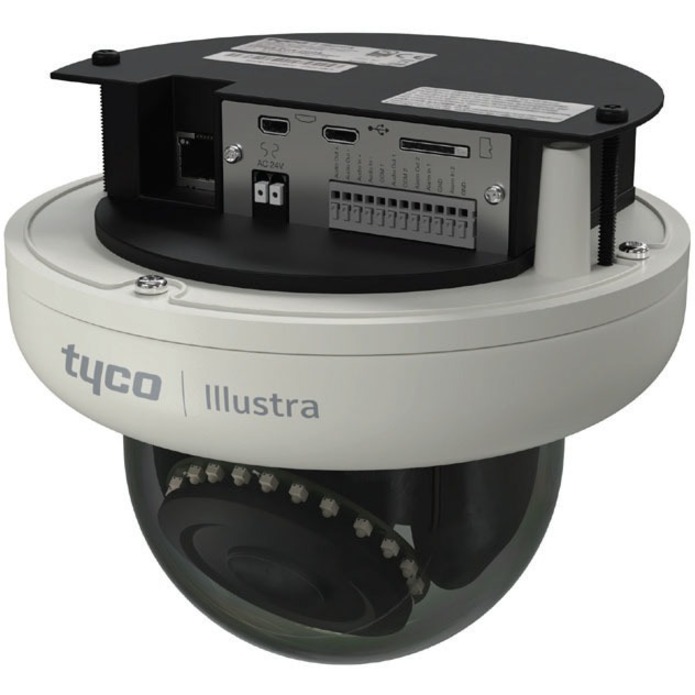

- Integrated recess mount, backbox, a range of IO options including Micro HDMI plus WiFi configuration via the Illustra Tools App
- Exposure profile settings allow the mini-dome to adapt to scenarios such as license plate recognition, gaming, and more
- Ultra low light capabilities to maintain color image quality without IR
Tech specs
Specifications
| Product Type | Network Camera |
| Maximum Aperture | f/1.4 |
| Environmentally Friendly | Yes |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps fps |
| Maximum Focal Length | 13.50 mm mm |
| Minimum Focal Length | 2.70 mm mm |
| Image Sensor Type | Sony IMX327 |
| Effective Camera Resolution | 2 Megapixel Pixel |
| Field of View | Field of View Wide (H/V) 112°/58°, Field of View Telephoto (H/V) 35°/20° |
| HDMI | Yes |
| Minimum Operating Temperature | -58°F (-50°C) °F |
| Maximum Operating Temperature | 149°F (65°C) °F |
| Network (RJ-45) | Yes |
| Longest Shutter Speed | 1/4 Second |
| Shortest Shutter Speed | 1/10000 Second |
| Remote Management | Yes |
| Night Vision | Yes |
| Minimum Aperture | f/2.8 |
| HD Recording | Yes |
| Lens Included | Yes |
| Night Vision Distance | 164.04 ft mm |
| Storage Type | Memory Card |
| Indoor/Outdoor | Indoor/Outdoor |
| Product Color | Signal White |
| Power Source Type | PoE |
| Power Source Type | AC |
| Color Family | White |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| Ingress Protection Rating | IP67 |
| Night Vision Type | Infrared |
| Maximum Operating Humidity | 90% % |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Diameter | 5.4" mm |
| Height | 5.3" mm |
| Color Supported | Color |
| Connectivity Technology | Wired & Wireless |
| Optical Zoom | 5x x |
